LED driver 120V 60Hz 12/24Vdc - 01874.120

Pdf

01874.120
Wiring devices / Traditional wiring devices / Shared components / Accessories

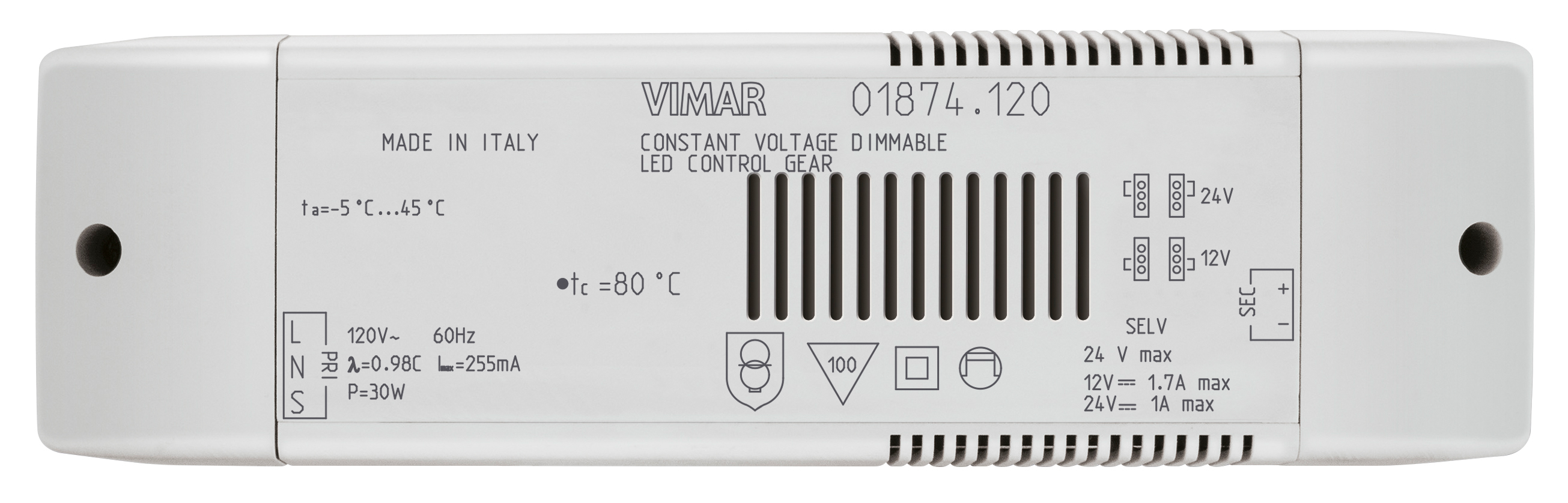

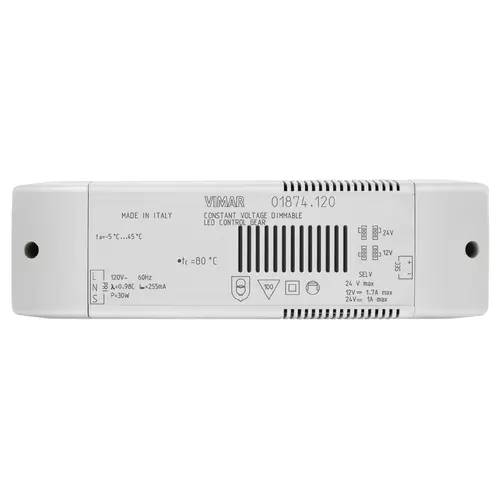

LED driver 120V 60Hz 12/24Vdc
Multivoltage driver 120 V~ 60 Hz for LED modules 12/24 Vdc, dimmable with MASTER dimmers

Product Status
2 - Will be discontinued

Class group
Light control
Class
LED driver
Suitable for outdoor use
No
Housing
Plastic housing
Suitable for constant current
No
Suitable for constant voltage
Yes
Output voltage
12 - 24 V
Output current
0 - 1.700 mA
Suitable for DC-voltage (primary side)
No
Output power
24,00 - 24,01 W
Degree of protection (IP)
IP20
Protection class
II

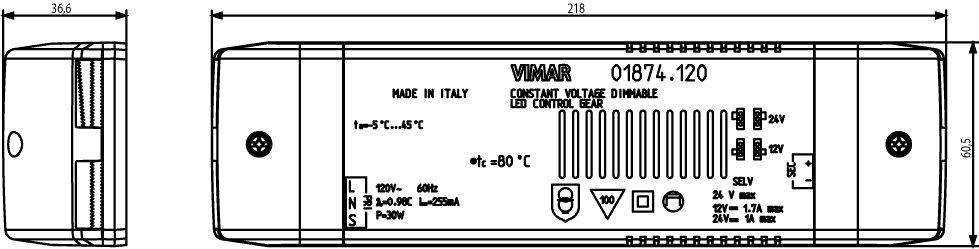

Length
36,60 mm
Width
218,00 mm
Height
60,50 mm
Diameter
0 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352482333
1 NR
26.9x11.6x4.9 [cm]
316.1 [g]
