01976
Smart systems&products / By-me Plus / Shared components / DIN devices

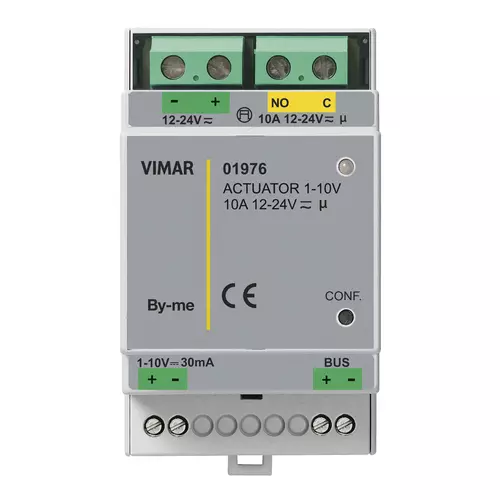

Actuator 1-10Vdc LED 12-24V MARINE
Actuator with 1-10 Vdc 30 mA output for LED control, 12-24 V 10 A relay output, supply voltage 12-24 V~ 50/60 Hz or 12-24 Vdc, for DIN (60715 TH35) installation, occupies 3 17,5 mm. Modules. For MARINE sector
Product Status
3 - Active
You may also be interested in
Sheets, Manuals, Documentation

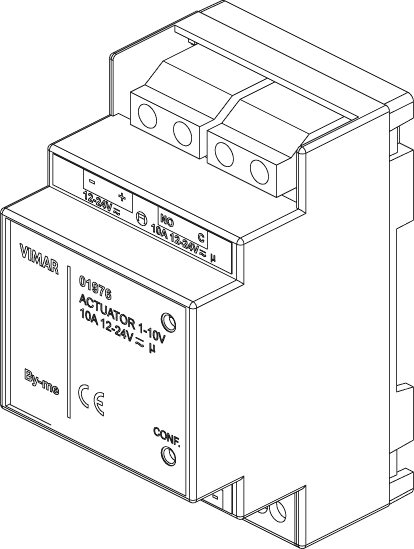

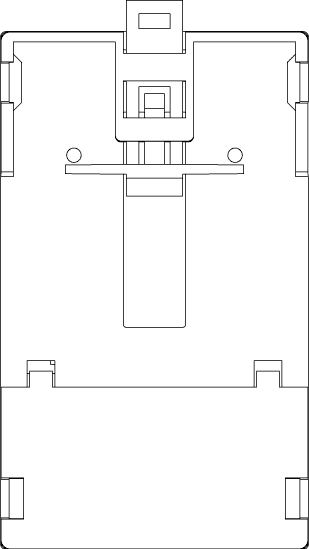

Drawings
Class group
Installation bus systems
Installation bus systems
Class
Dimming actuator for bus system
Dimming actuator for bus system
Bus system KNX
No
No
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
No
No
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Other
Other
Radio frequency bidirectional
No
No
Model
Control module
Control module
Width in number of modular spacings
3
3
With bus connection
Yes
Yes
Bus module detachable
No
No
Local operation/hand operation
No
No
With LED indication
Yes
Yes
Number of outputs
2
2
Power boost suitable
No
No
Type of load
Universal and LED Retrofit
Universal and LED Retrofit
Voltage
12,00 - 24,00 V
12,00 - 24,00 V
Parallel-service possible
No
No
Frequency
50,00 - 60,00 HZ
50,00 - 60,00 HZ
Degree of protection (IP)
IP20
IP20
Minimum order quantity: 1 NR
Barcode
8007352431560
1 NR
11.7x10.8x7.1 [cm]
206.08 [g]
