Actuator PWM for LED 12-24V relay MARINE - 01978

Pdf
Vimar - 01978 - Actuator PWM for LED 12-24V relay MARINE
Vimar - 01978 - Actuator PWM for LED 12-24V relay MARINE

01978
Smart systems&products / By-me Plus / Shared components / DIN devices

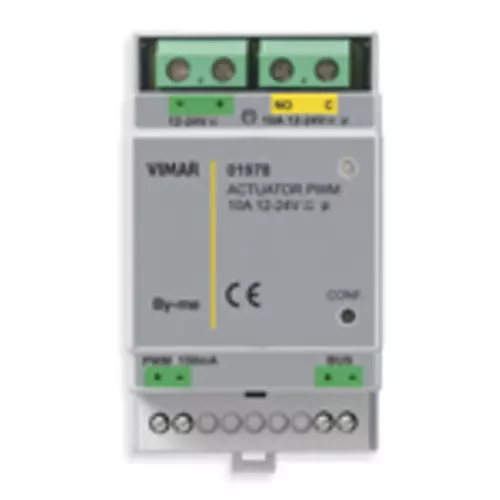

Actuator PWM for LED 12-24V relay MARINE
Attuatore con uscita PWM 150 mA per controllo LED, uscita a relè 12-24 V 10 A, alimentazione 12-24 V~ 50/60 Hz o 12-24 Vdc, installazione su guida DIN (60715 TH35), occupa 3 moduli da 17,5 mm. Versione per applicazioni MARINE

Product Status
2 - Will be discontinued

Class group
Installation bus systems
Class
Dimming actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Control module
Width in number of modular spacings
3
With bus connection
Yes
Bus module detachable
No
Local operation/hand operation
No
With LED indication
Yes
Number of outputs
2
Power boost suitable
No
Type of load
Universal and LED Retrofit
Voltage
12,00 - 24,00 V
Parallel-service possible
No
Frequency
50,00 - 60,00 HZ
Degree of protection (IP)
IP20

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352431577
1 NR

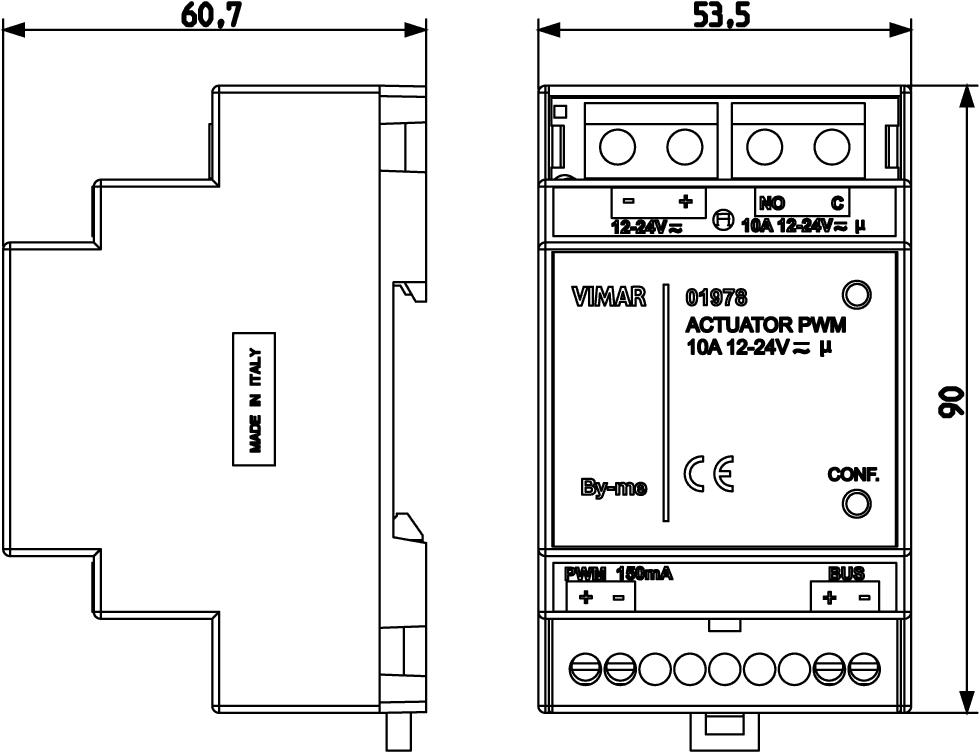

11.7x10.8x7.1 [cm]
211 [g]
