MASTER dimmer 120V MARINE - 01985.120

Pdf
Vimar - 01985.120 - MASTER dimmer 120V MARINE
Vimar - 01985.120 - MASTER dimmer 120V MARINE

01985.120
Smart systems&products / By-me Plus / Shared components / DIN devices

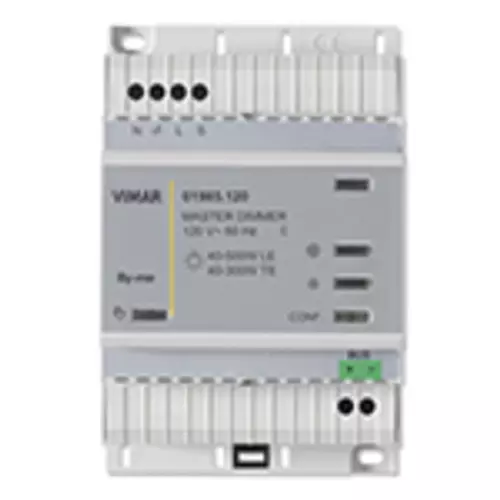

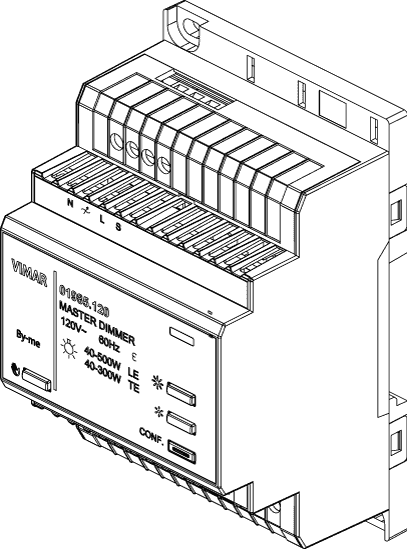

MASTER dimmer 120V MARINE
MASTER dimmer, 120 V~ 60 Hz for: 40-500 W incandescent lamps , 40-300 W electronic transformers, 10-200 W CFL lamps, 3-200 W LED lamps, LED electronic transformers, for DIN (60715 TH35) rail installation, occupies 4 17,5 mm modules. For MARINE sector

Product Status
2 - Will be discontinued

Class group
Installation bus systems
Class
Dimming actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Dimming actuator
Width in number of modular spacings
4
With bus connection
Yes
Bus module detachable
No
Local operation/hand operation
No
With LED indication
Yes
Number of outputs
1
Output power
40 - 500 W
Power boost suitable
No
Type of load
Universal and LED Retrofit
Voltage
120,00 - 120,01 V
Parallel-service possible
No
Frequency
60,00 - 60,01 HZ
Degree of protection (IP)
IP20

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352487864
1 NR

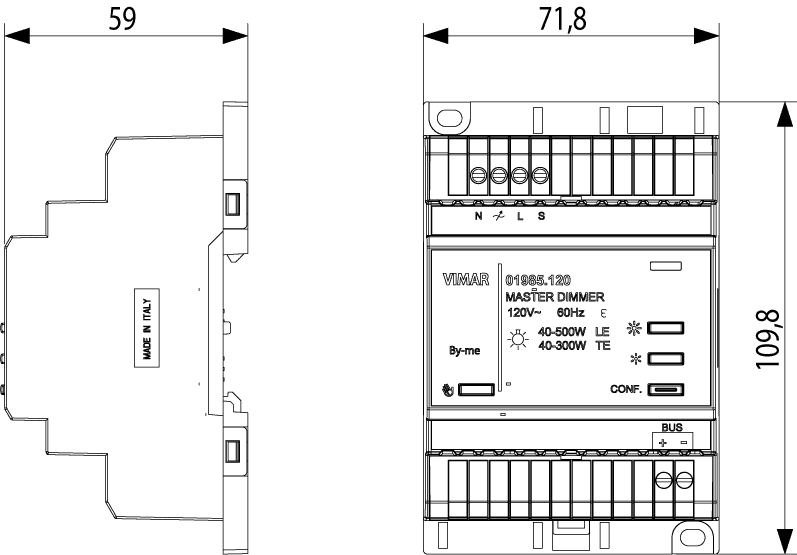

11.7x10.8x7.1 [cm]
224.4 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
