Snaptype lamphld-G13 fluor.lamp - 02473

Pdf

02473
Portable installation / Lighting components / Lampholders / Fluorescent lampholders

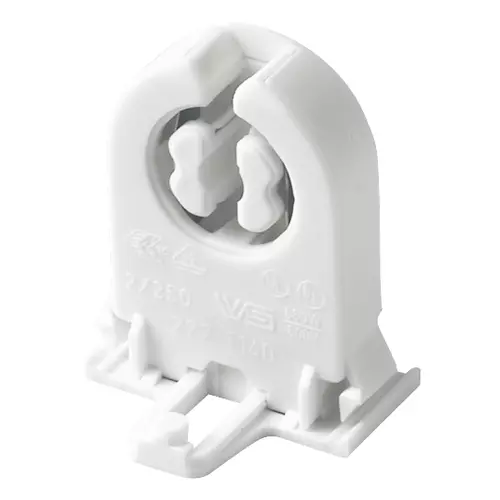

Snaptype lamphld-G13 fluor.lamp
2 A 500 V inflexible lampholder, rotor type, with stop and starter holder, brass contacts, for G13 fluorescent tubular lamps, for rigid and flexible conductors 0,5 mm2 to 1 mm2, snap fixing and screwless terminals, rated operating temperature 140 °C (Tm 110 °C), white

Product Status
3 - Active

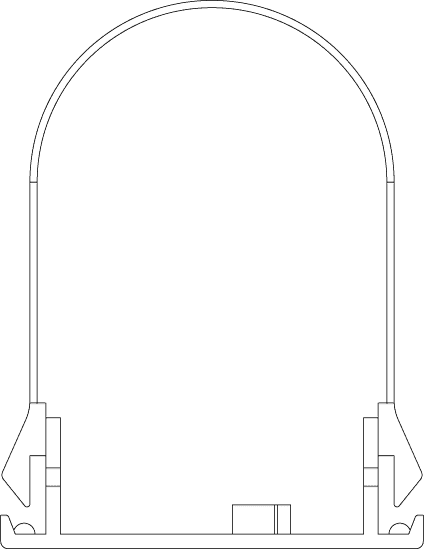

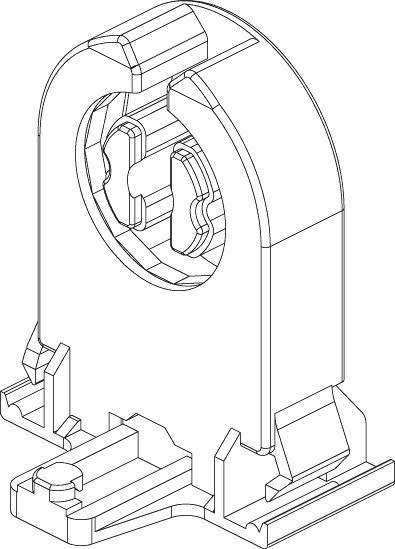

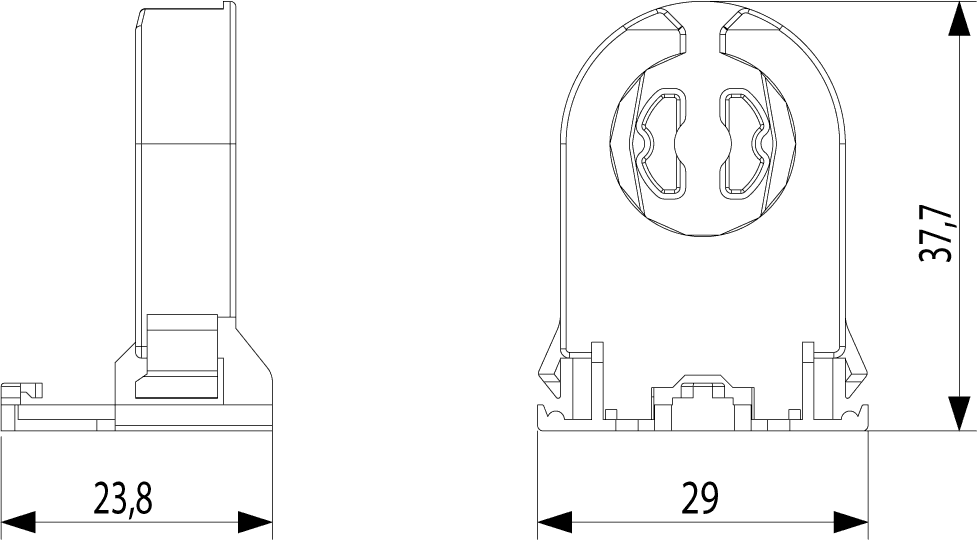

Drawings

Class group
Accessories for lighting
Class
Lamp holder
Model
Plug-in lamp holder
Material
Other
Colour
White
Lamp holder
G13
With starter insertion
No
Type of fastening
Plug-in mounting
Nipple thread
None

00. CE Marking - EU

16. UL - USA

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352038127
1 NR
3x4x2.4 [cm]
5.93 [g]
Barcode Qty 10 NR
8007352325999
10 NR
20x10x3 [cm]
60.8 [g]
Barcode Qty 100 NR
8007352011380
100 NR
28.4x18.4x11.6 [cm]
733.47 [g]
Barcode Qty 800 NR
8007352644403
800 NR
59.5x38.5x26.5 [cm]
6,560 [g]
