Snaptype lamphld-G13 fluor.lamp+start. - 02474

02474
Portable installation / Lighting components / Lampholders / Fluorescent lampholders

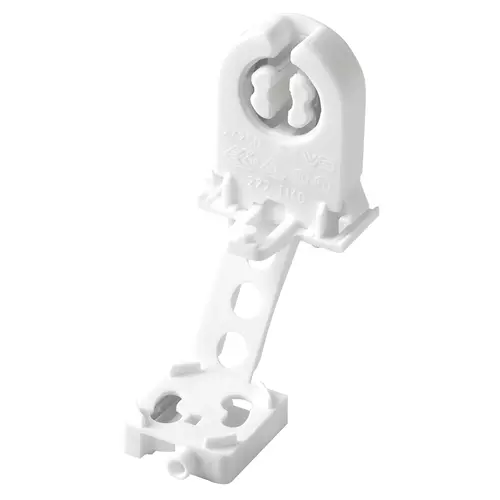

Snaptype lamphld-G13 fluor.lamp+start.
2 A 500 V inflexible lampholder, rotor type, with stop and starter holder, brass contacts, for G13 fluorescent tubular lamps, for rigid and flexible conductors 0,5 mm2 to 1 mm2, snap fixing and screwless terminals, rated operating temperature 140 °C (Tm 110 °C), white

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

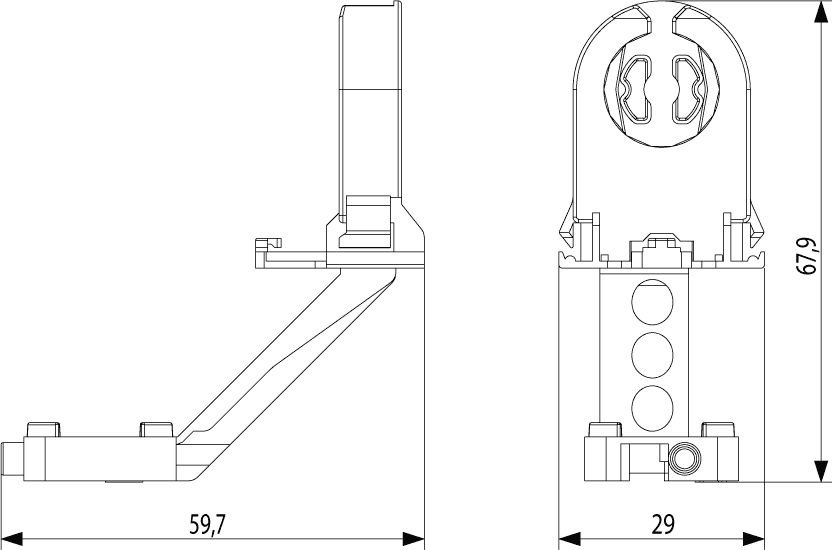

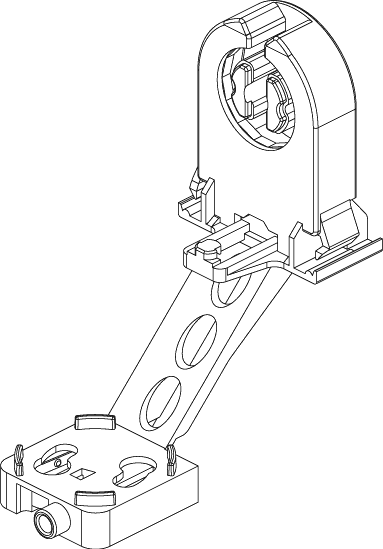

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Accessories for lighting

Class
Lamp holder

Model
Plug-in lamp holder

Material
Other

Colour
White

Lamp holder
G13

With starter insertion
Yes

Type of fastening
Plug-in mounting

Nipple thread
None

00. CE Marking - EU

18. ENEC 10 (VDE)

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352031432

1 NR

2.2x6.8x5.1 [cm]

9.3 [g]

8007352326002

10 NR

20x10x3 [cm]

93.4 [g]

8007352031449

100 NR

28.4x18.4x13.7 [cm]

1,079.07 [g]
