LED emergency lamp 230V Arké/Plana 7M - 02660.1

Pdf
02660.1

Surface mounting equipments / Devices / Emergency lighting fittings

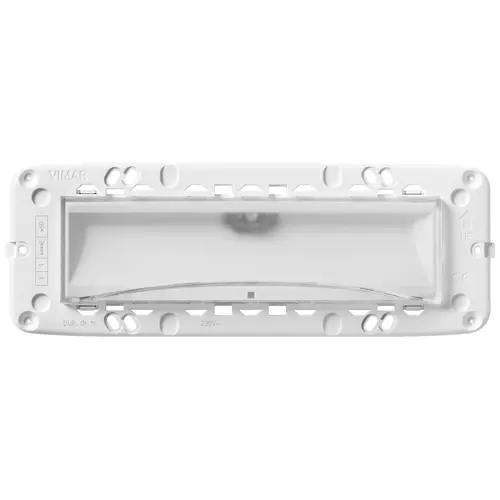

LED emergency lamp 230V Arké/Plana 7M

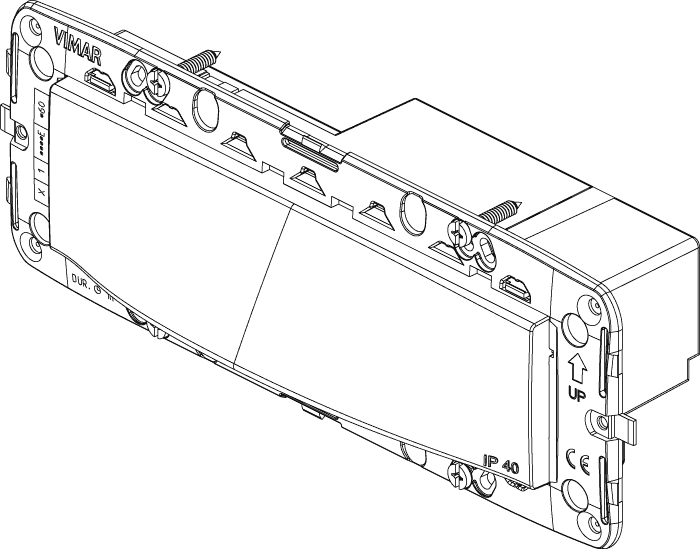

Emergency lighting device with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, rechargeable Ni-Cd battery, built-in mounting frame for 6/7-module flush mounting boxes. To complete with Arké or Plana cover plate

Product Status
3 - Active

Class group
Luminaires
Class
Emergency luminaire
Monitoring equipment
None
Wiring system
Standby switching
With remote switch connection
Yes
Power supply system
Peripheral (individual battery)
Battery quality
NiCd
Lamp type
LED not exchangeable
With light source
Yes
Colour housing
White
Voltage type
AC
Nominal voltage
230,00 - 230,01 v
Degree of protection (IP)
IP40
Protection class
II
Max. system power
5,00 W
Rated luminous flux according to IEC 62722-2-1
75

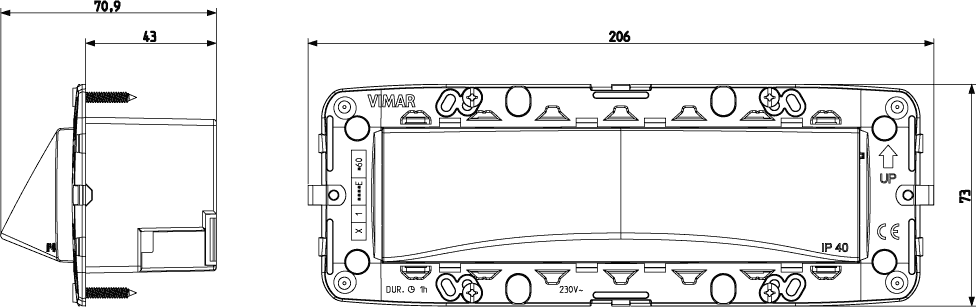

Width
206,00 mm
Height/depth
70,60 mm
Length
73,00 mm
Built-in width
206,00 mm
Built-in height/depth
43,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352442849
1 NR
22.5x9.7x10 [cm]
368.1 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
