1P NO 24V 6-button control Flat 3M - 02687.AX

Pdf
Vimar - 02687.AX - 1P NO 24V 6-button control Flat 3M
Vimar - 02687.AX - 1P NO 24V 6-button control Flat 3M

02687.AX
Wiring devices / Traditional wiring devices / EIKON / Devices

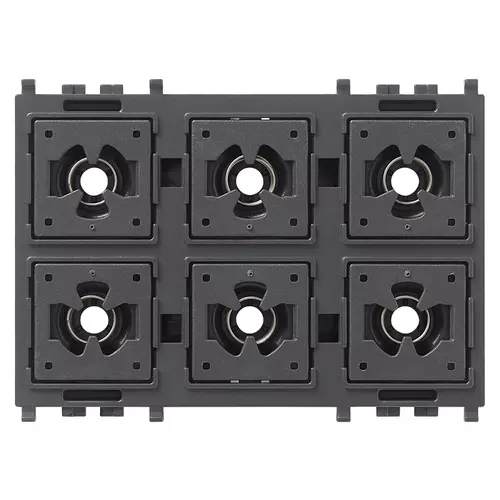

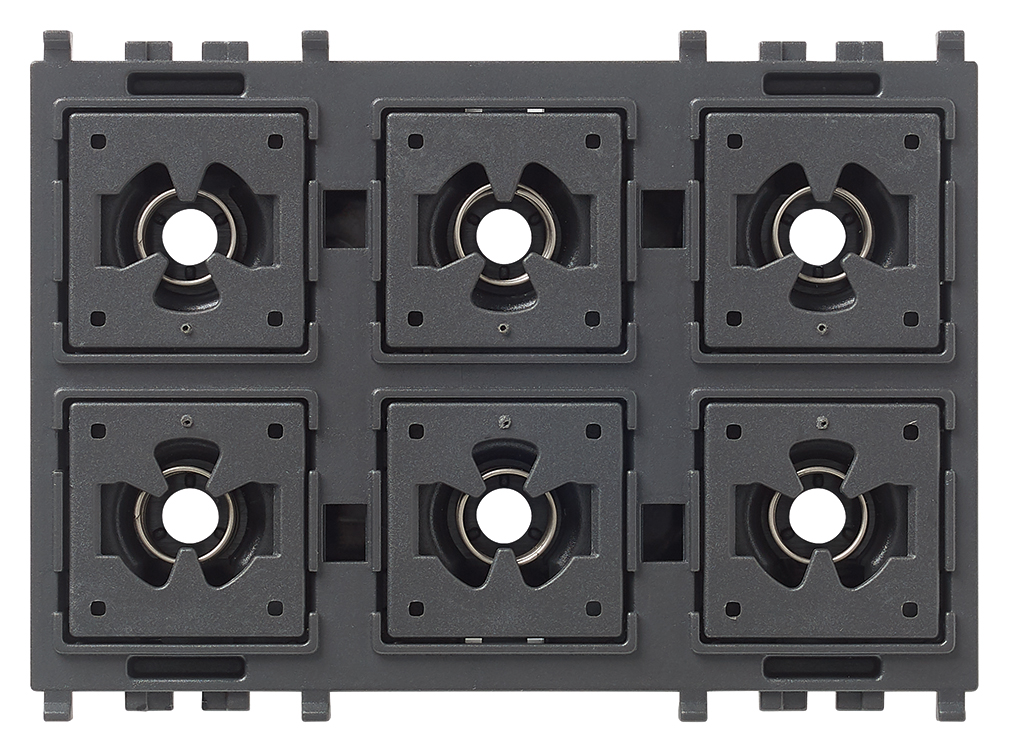

1P NO 24V 6-button control Flat 3M

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Group push button
Method of operation
Push button
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
6
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
6
Number of modules (module system)
300
Nominal voltage
24 V
Rated current
50,00 A
With lighting
Yes
With light source
No
With signal lamp
No
Feedback-signal contact
No
Connection type
Other
Mounting method
Built-in installation
Type of fastening
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Other
Surface finishing
Matt
Colour
Other
RAL-number (similar)
9004
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP20
Impact strength
Other

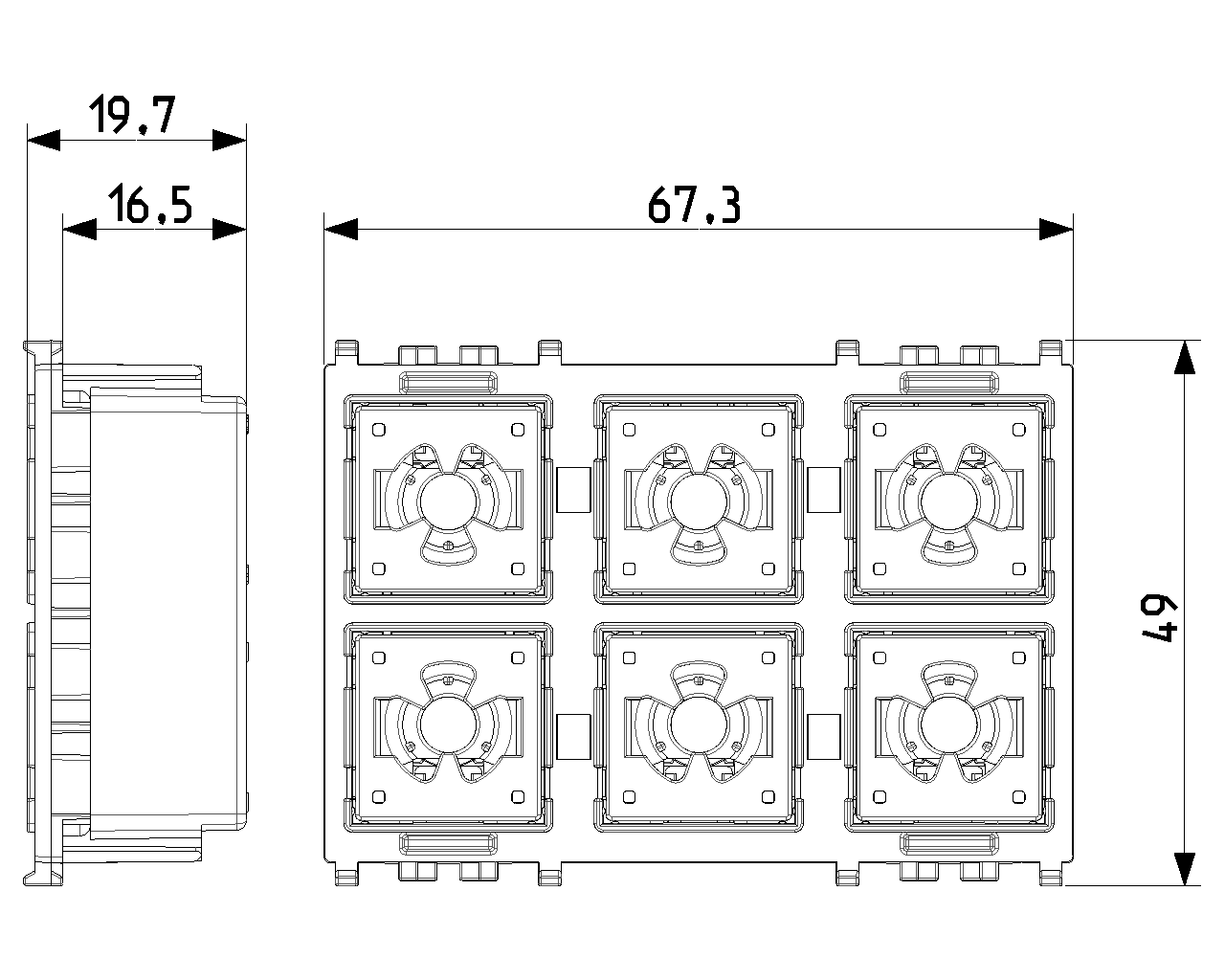

Device width
67,30 mm
Device height
49,00 mm
Device depth
19,70 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352712300
1 NR
5.3x3.9x7.6 [cm]
32.51 [g]
Barcode Qty 10 NR
8007352712317
10 NR
28.1x13.1x6 [cm]
335.1 [g]
