KNX touch-thermostat 2M neutral - 02952.BN

Pdf
02952.BN

Surface mounting equipments / Systems / KNX

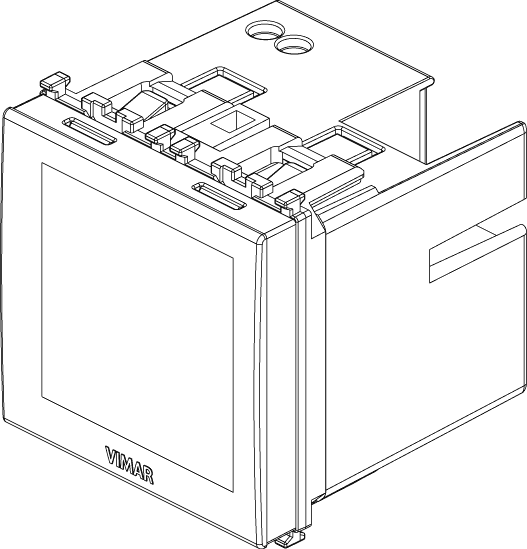

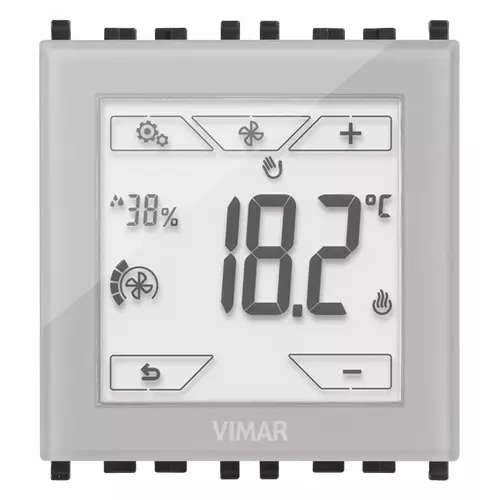

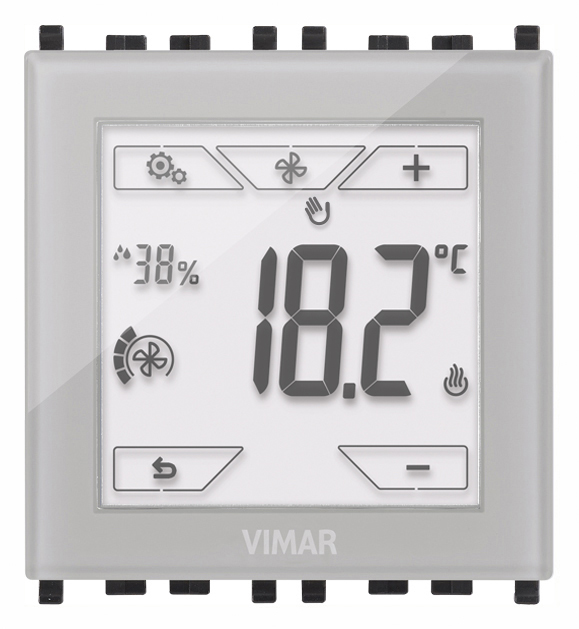

KNX touch-thermostat 2M neutral

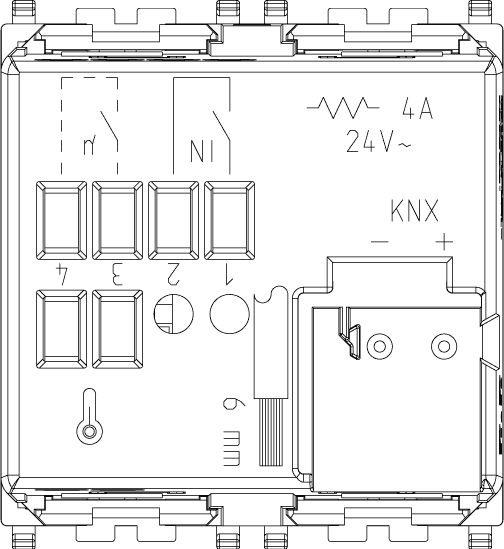

Electronic touchscreen thermostat for ambient temperature control (heating and air-conditioning) of 2 independent zones, KNX standard home automation system, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PI mode, 1 NO relay output 4 A 24 V~, 1 input for wired temperature sensor or electronic temperature sensor, 1 programmable digital input, RGB LED backlighting, can be interfaced with actuator with KNX proportional analogue outputs to make a class V modulating room thermostat (contribution 3%), to be completed with Eikon, Arké or Plana cover plates, neutral - 2 modules

Product Status
4 - Active

Class group
Installation bus systems
Class
Room temperature controller for bus system
Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Assembly arrangement
Basic element
Mounting method
Flush mounted (plaster)
With local operation
Yes
With anti-theft/dismantling protection
No
With LED indication
No
With display
Yes
Number of binary inputs
0
Material
Plastic
Material quality
Other
Surface finishing
Glossy
Colour
Other
RAL-number (akin)
9002
Transparent
No
External sensor
Yes
Manual set point setting
Yes
Presence button
No
Parallel-service possible
No
Degree of protection (IP)
IP40
Bus connection included
Yes
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352539716
1 NR

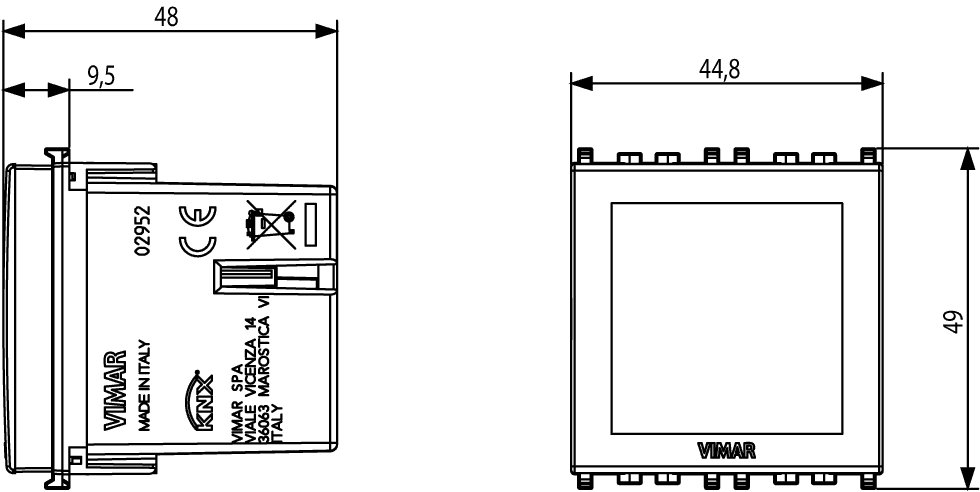

11.2x9.6x9.8 [cm]
141.1 [g]
Barcode Qty 5 NR
8007352541160
5 NR
30.5x21.2x11.4 [cm]
861.2 [g]
Barcode Qty 18 NR
8007352671218
18 NR
37.5x30x21 [cm]
1,736 [g]
