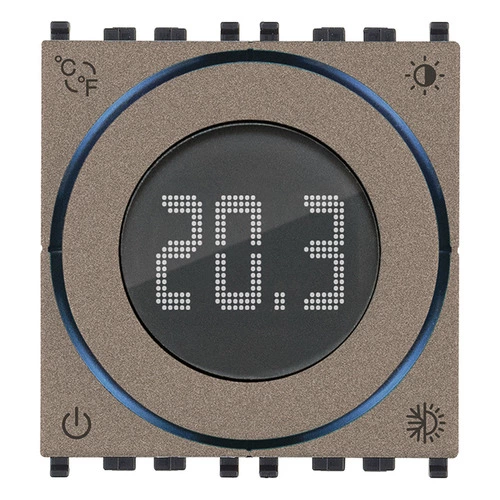

IoT dial thermostat 2M Metal - 02973.M

Pdf
Vimar - 02973.M - IoT dial thermostat 2M Metal
Vimar - 02973.M - IoT dial thermostat 2M Metal

02973.M
Wiring devices / View Wireless wiring devices / Shared components / Devices

IoT dial thermostat 2M Metal

Product Status
3 - Active

Class group
Stats, switches and controllers
Class
Room thermostat
Model
On/Off
Type of power supply
230 V AC
Connection
3-/4-wire
With receiver
No
External sensor
Yes
Thermal feedback
Parallel
Control characteristic
PID
Suitable for heating
Yes
Number of heater outputs
1
Number of cooler outputs
1
Differential value
0,00 - 1,00 k
Adjustable differential
Yes
Temperature readable
Yes
With sound indicator
No
Sensor/feeler type
Resistance sensor
Mounting method
Flush-mounted
Number of modules (module system)
2
With display
Yes
Operation
Turn
With tap water circuit
No
Max. contact voltage
230 V
Max. contact load
5 A
Explosion-proof
Yes
Colour
Silver
RAL-number
0
Diameter
0 mm
Class of the temperature control
IV

00. CE Marking - EU

37. Marking - Morocco

40. Bluetooth technology

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352688599
1 NR
5.7x5.3x7.7 [cm]
38 [g]
Barcode Qty 60 NR
8007352746480
60 NR
37.5x30x13.5 [cm]
2,520 [g]
Barcode Qty 70 NR
8007352688605
70 NR
39.5x30x17 [cm]
2,940 [g]
