02973.N
Wiring devices / View Wireless wiring devices / Shared components / Devices

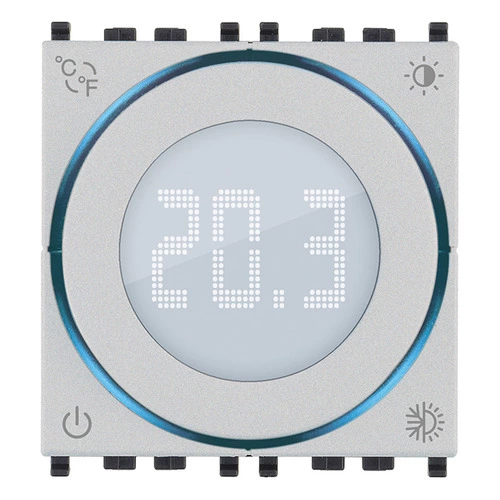

IoT dial thermostat 2M Next
Product Status
3 - Active
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (1051 kb)
- Foglio istruzioni multilingua Full (697 kb)
- Feuille d’instructions multilangues Full (701 kb)
- Hoja de instrucciones multilingüe Full (697 kb)
- Full multilanguage instructions sheet (693 kb)
- Πολυγλωσσικό φύλλο οδηγιών Full (860 kb)
- Mehrsprachig-Gebrauchsinformation Full (700 kb)
- ورقة الإرشادات Full (830 kb)
Class group
Stats, switches and controllers
Stats, switches and controllers
Class
Room thermostat
Room thermostat
Model
On/Off
On/Off
Type of power supply
230 V AC
230 V AC
Connection
3-/4-wire
3-/4-wire
With receiver
No
No
External sensor
Yes
Yes
Thermal feedback
Parallel
Parallel
Control characteristic
PID
PID
Suitable for heating
Yes
Yes
Number of heater outputs
1
1
Number of cooler outputs
1
1
Differential value
0,00 - 1,00 k
0,00 - 1,00 k
Adjustable differential
Yes
Yes
Temperature readable
Yes
Yes
With sound indicator
No
No
Sensor/feeler type
Resistance sensor
Resistance sensor
Mounting method
Flush-mounted
Flush-mounted
Number of modules (module system)
2
2
With display
Yes
Yes
Operation
Turn
Turn
With tap water circuit
No
No
Max. contact voltage
230 V
230 V
Max. contact load
5 A
5 A
Explosion-proof
Yes
Yes
Colour
Silver
Silver
RAL-number
0
0
Diameter
0 mm
0 mm
Class of the temperature control
IV
IV
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
92. RoHS UAE
Minimum order quantity: 1 NR
Barcode

8007352688612
1 NR
6x5.4x5.2 [cm]
71.2 [g]

8007352746497
60 NR
37.5x30x13.5 [cm]
4,579.2 [g]
