1P NO 10A push button bell symbol ivory - 06240.C

Pdf
Vimar - 06240.C - 1P NO 10A push button bell symbol ivory
Vimar - 06240.C - 1P NO 10A push button bell symbol ivory
06240.C

Mascot / Devices / Basic devices

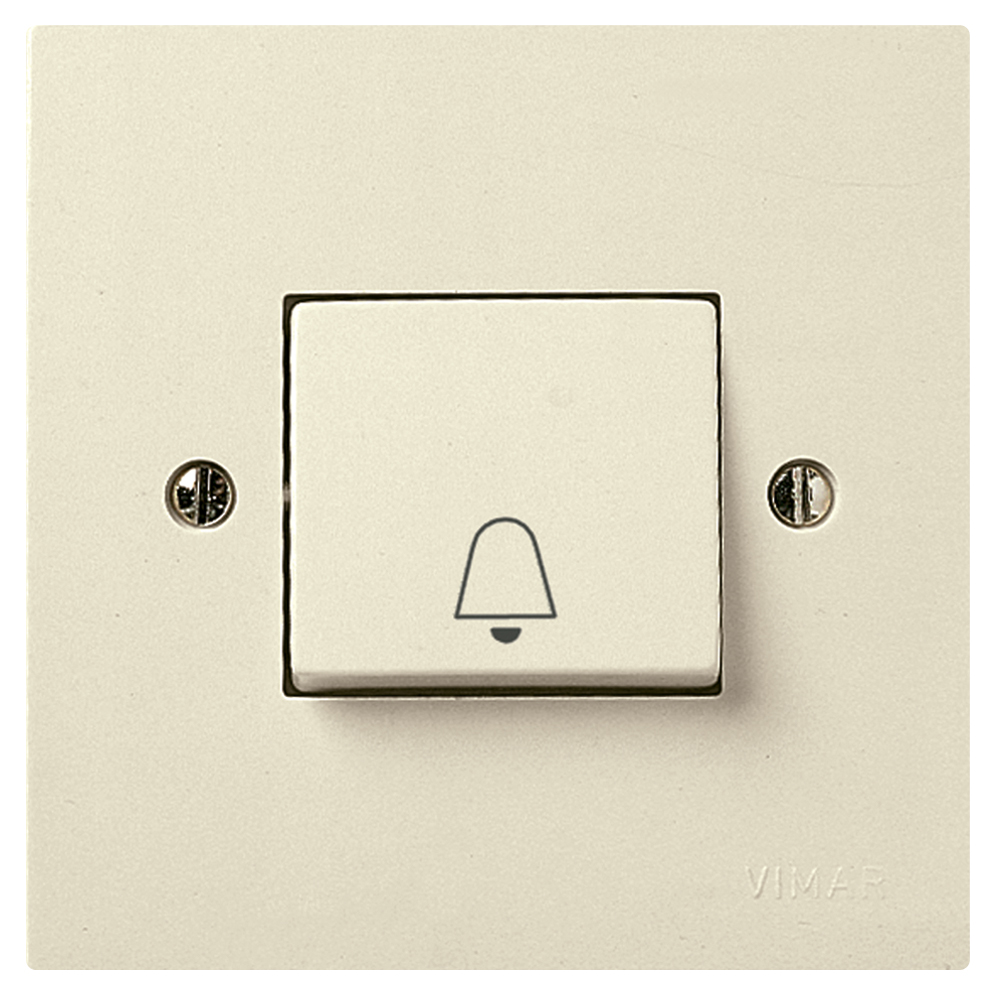

1P NO 10A push button bell symbol ivory
1P NO 10 A 250 V~ push button, bell symbol, wide button, ivory

Product Status
2 - Will be discontinued

You may also be interested in

V71001
V71001 - Flush mounting box ø 60mm light blue
V71001.AU
V71001.AU - Flush mounting box ø 60mm light black
V71701
V71701 - Round flush-mount box f/hollow wall blue
Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Other
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
80,00 mm
Height of device
80,00 mm
Depth of device
36,00 mm

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352094598
1 NR
8x8x3.6 [cm]
54.87 [g]
Barcode Qty 20 NR
8007352094604
20 NR
29.5x24.8x8.7 [cm]
1,310.13 [g]
