TV-RD-SAT single conn.male outlet 1dB i - 06456.01

06456.01
Wiring devices / Traditional wiring devices / MASCOT / Devices

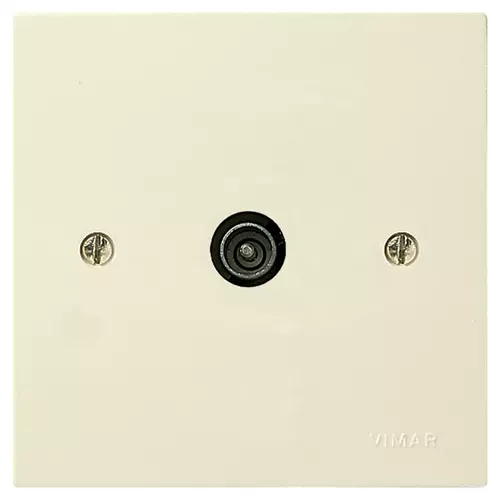

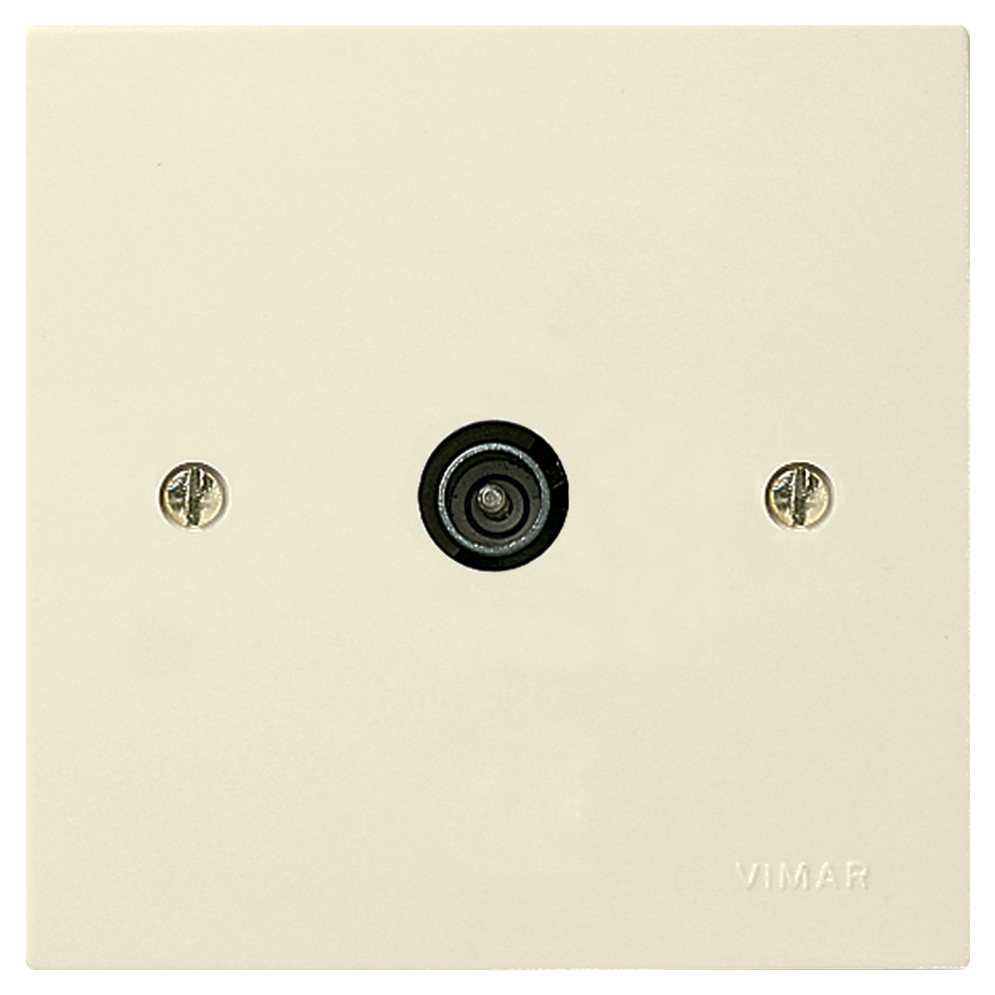

TV-RD-SAT single conn.male outlet 1dB i
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, single connection, with IEC 60169-2 male connector, connection attenuation 1 dB, ivory. Allows the passage of d.c. current and control signals. (24 V 500 mA max)

Product Status
2 - Will be discontinued

You may also be interested in

V71001.AU - Flush mounting box ø 60mm light black

V71001 - Flush mounting box ø 60mm light blue

V71701 - Round flush-mount box f/hollow wall blue

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
End socket

Cover
None

Tap loss at 860 MHz
0,10 dB

Tap loss at 2150 MHz
0,20 dB

Number of outlets
1

Suitable for remote power supply
Yes

Type of fastening
Snap mounting (engagement)

Colour
Beige

RAL-number (similar)
9001

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352101685

1 NR

8x8x3.6 [cm]

79.5 [g]

8007352104761

5 NR

15.9x11.4x8.9 [cm]

466.8 [g]
