Step marker lamp resin snapfix ivory - 08689.A

Pdf
08689.A

8000 / Devices / Lighting fittings

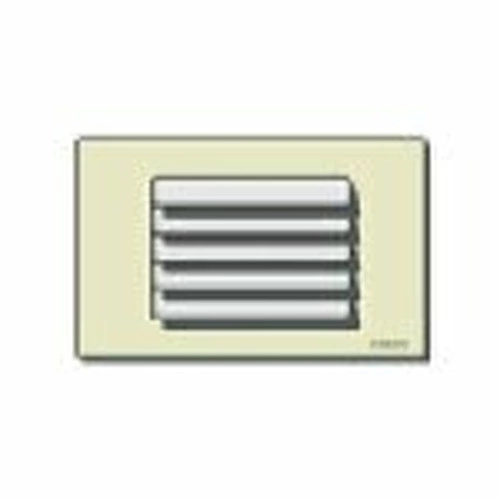

Step marker lamp resin snapfix ivory
Step marker lamp with 3 lampholders for 12 or 24 V 3 W ø 7x31 mm lamp, grid diffuser - provided with mounting frame and resin cover plate for 3-module mounting boxes, snap fixing, ivory. Provided without lamp

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
With light source
No
Lamp type
Other
With flashlight
No
Mounting method
Flush mounted (plaster)
Type of fastening
Screw mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Colour lamp
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
24 v
Max. lamp power
3 W

37. Marking - Morocco

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352043435
1 NR
4.7x2.6x2 [cm]
75 [g]
Barcode Qty 5 NR
8007352018471
5 NR
28.1x13.1x6 [cm]
453.13 [g]
