2P+E 10A P11 outlet carbon matt - 09201.CM

Pdf
Vimar - 09201.CM - 2P+E 10A P11 outlet carbon matt
Vimar - 09201.CM - 2P+E 10A P11 outlet carbon matt

09201.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

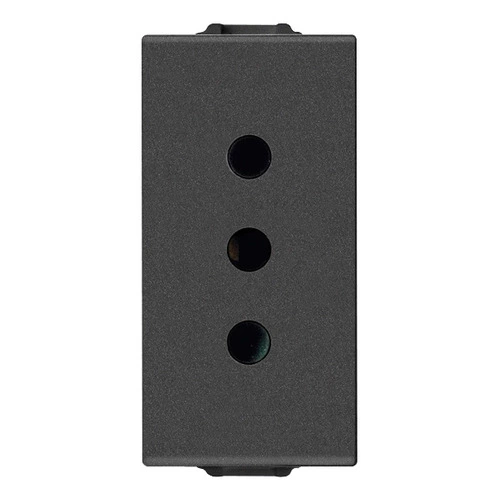

2P+E 10A P11 outlet carbon matt
SICURY 2P+T 10 A 250 V~ socket outlet, Italian standard type P11, carbon matt

Product Status
3 - Active

Drawings

view encumbered art. 09201.CM
PNG DXF
rear view art. 09201.CM
PNG DXF
3D view art. 09201.CM
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P11
Number of modules (module system)
1
With hinged lid
No
Label space/information surface
Yes
Colour
Anthracite
RAL-number (similar)
7016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Device width
22,30 mm
Device height
47,00 mm
Device depth
32,70 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352664371
1 NR
4.1x2.8x5.3 [cm]
26.27 [g]
Barcode Qty 50 NR
8007352664388
50 NR
21.4x11.6x14.2 [cm]
1,415.6 [g]
Barcode Qty 500 NR
8007352664395
500 NR
57.5x22.5x30 [cm]
14,682.67 [g]
