2P+E 16A German SICURY outlet carbon m - 09208.CM

Pdf
Vimar - 09208.CM - 2P+E 16A German SICURY outlet carbon m
Vimar - 09208.CM - 2P+E 16A German SICURY outlet carbon m
09208.CM

Neve Up / Devices / Other standards socket outlets

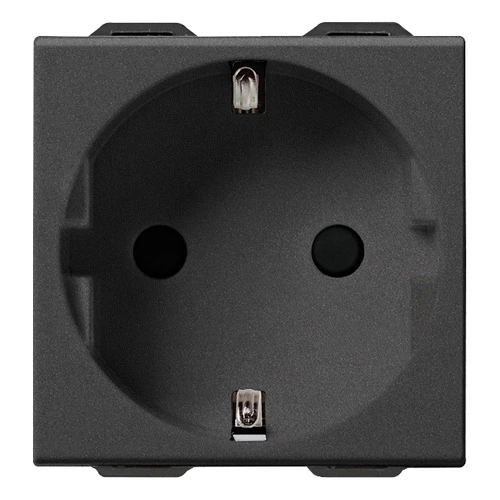

2P+E 16A German SICURY outlet carbon m
2P+T 16 A 250 V~ SICURY socket outlet, German standard, carbon matt - 2 modules

Product Status
3 - Active

You may also be interested in

09208.C.CM
09208.C.CM - 2P+E 16A DE SICURY outlet+cover carbon m
09208.A
09208.A - 2P+E 16A German SICURY outlet orange
09208.R
09208.R - 2P+E 16A German SICURY outlet red
09208.V
09208.V - 2P+E 16A German SICURY outlet green

Drawings

view encumbered art. 09208.CM
PNG DXF
rear view art. 09208.CM
PNG DXF
3D view art. 09208.CM
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
With hinged lid
No
Label space/information surface
Yes
Colour
Anthracite
RAL-number (similar)
7016
Metallic colour
No
Transparent
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Width of device
44,80 mm
Height of device
47,00 mm
Depth of device
39,00 mm

00. CE Marking - EU

09. VDE - Germany

10. EAC Eurasian Customs Union

19. NOM - Mexico

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352664166
1 NR
5.1x4.3x5.3 [cm]
46 [g]
Barcode Qty 20 NR
8007352664173
20 NR
27.4x11.5x9.2 [cm]
982 [g]
Barcode Qty 240 NR
8007352670327
240 NR
38x28.5x35.5 [cm]
12,310 [g]
