2P+E 16A P30 outlet carbon matt - 09209.CM

Pdf

09209.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

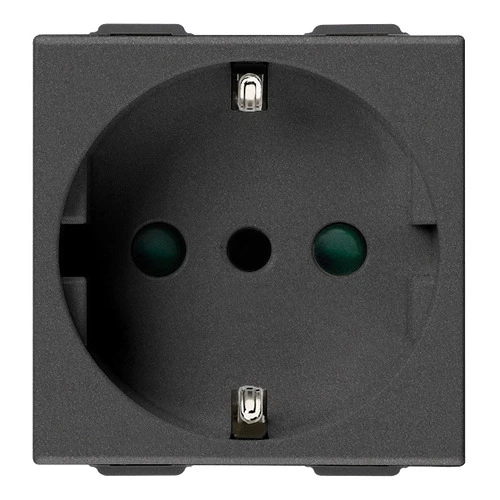

2P+E 16A P30 outlet carbon matt
2P+T 16 A 250 V~ SICURY socket outlet, Italian standard type P30 (side and central earth contacts), carbon matt - 2 modules

Product Status
3 - Active

You may also be interested in

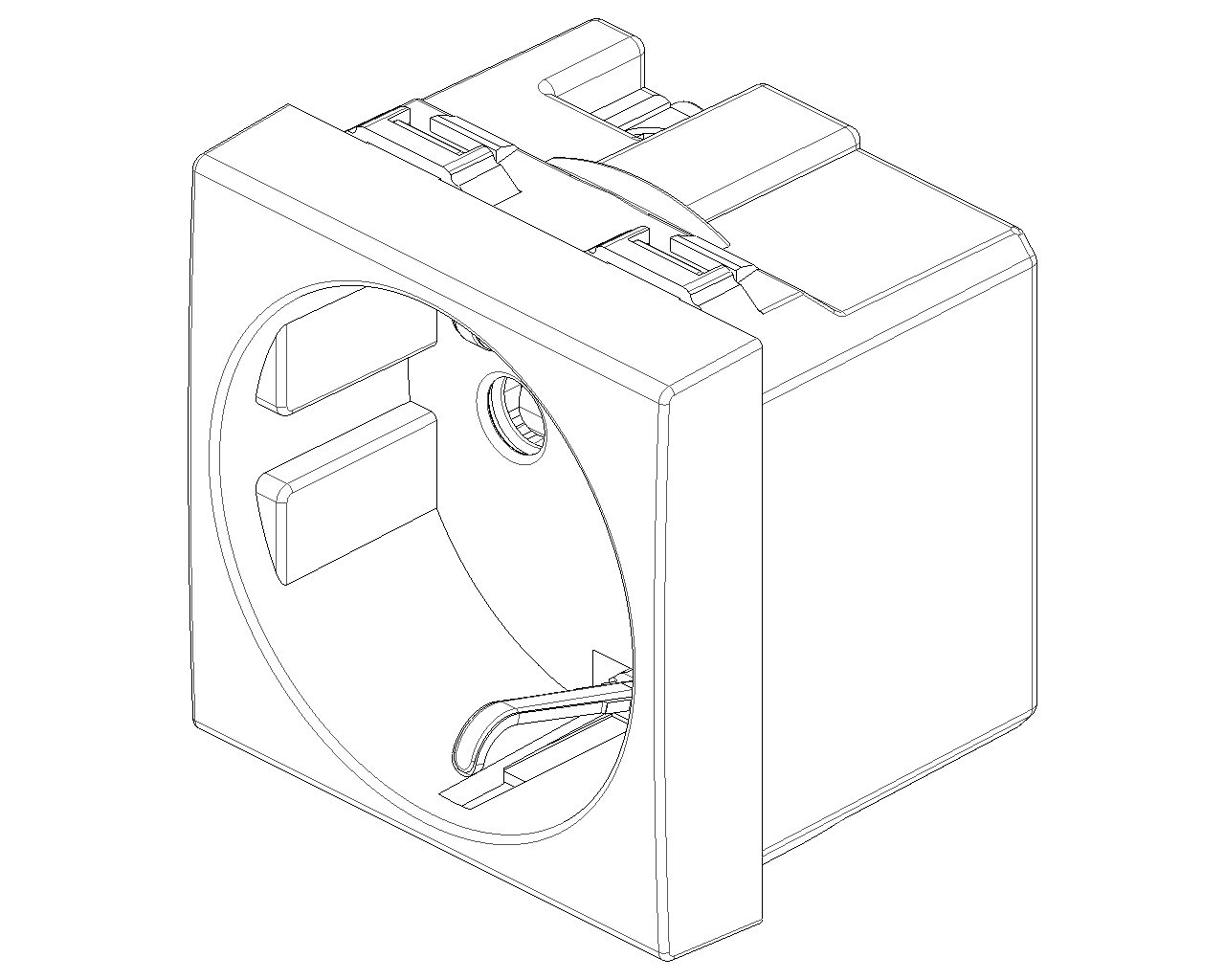

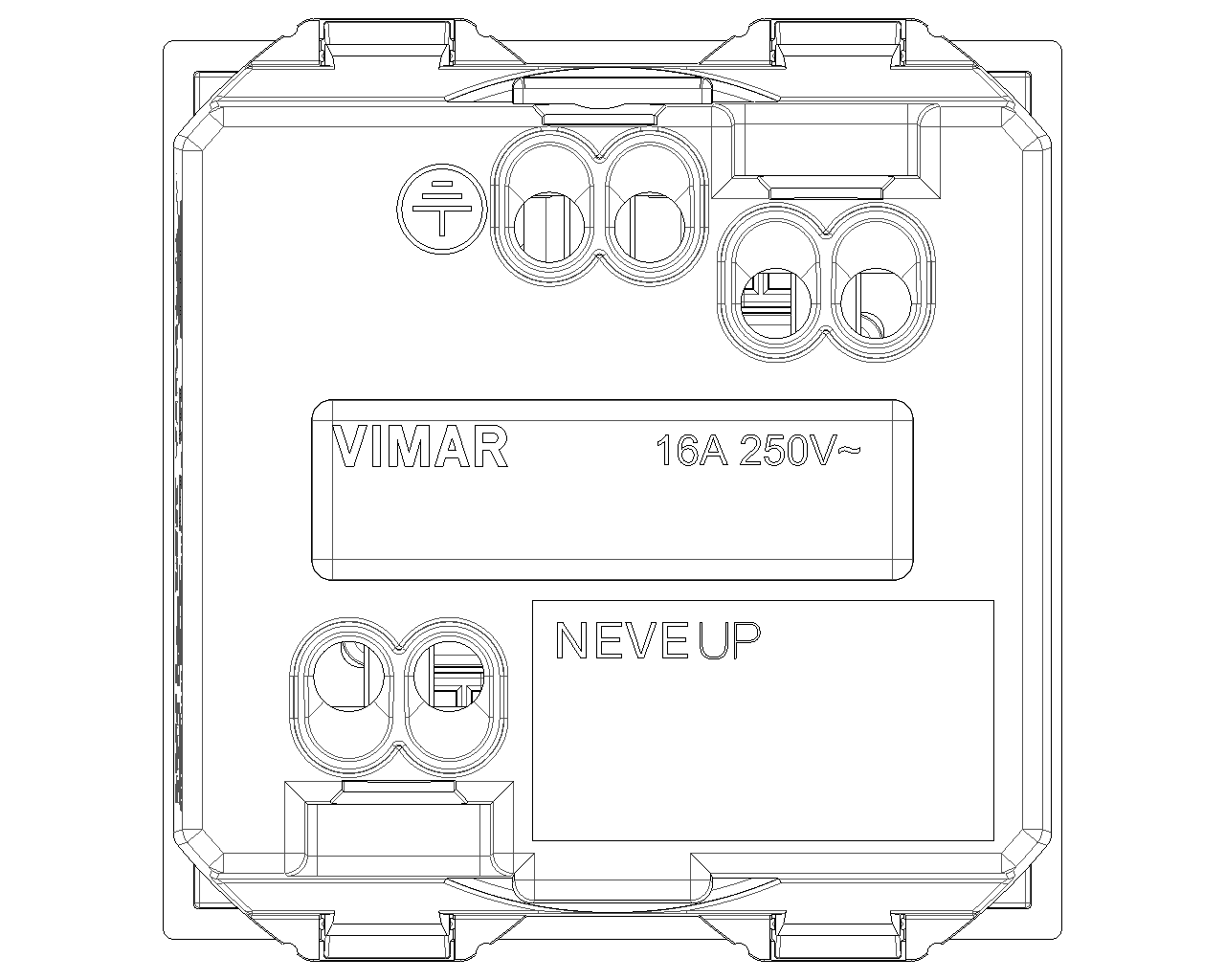

Drawings

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P30
Number of modules (module system)
2
With hinged lid
No
Label space/information surface
Yes
Colour
Anthracite
RAL-number (similar)
7016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ

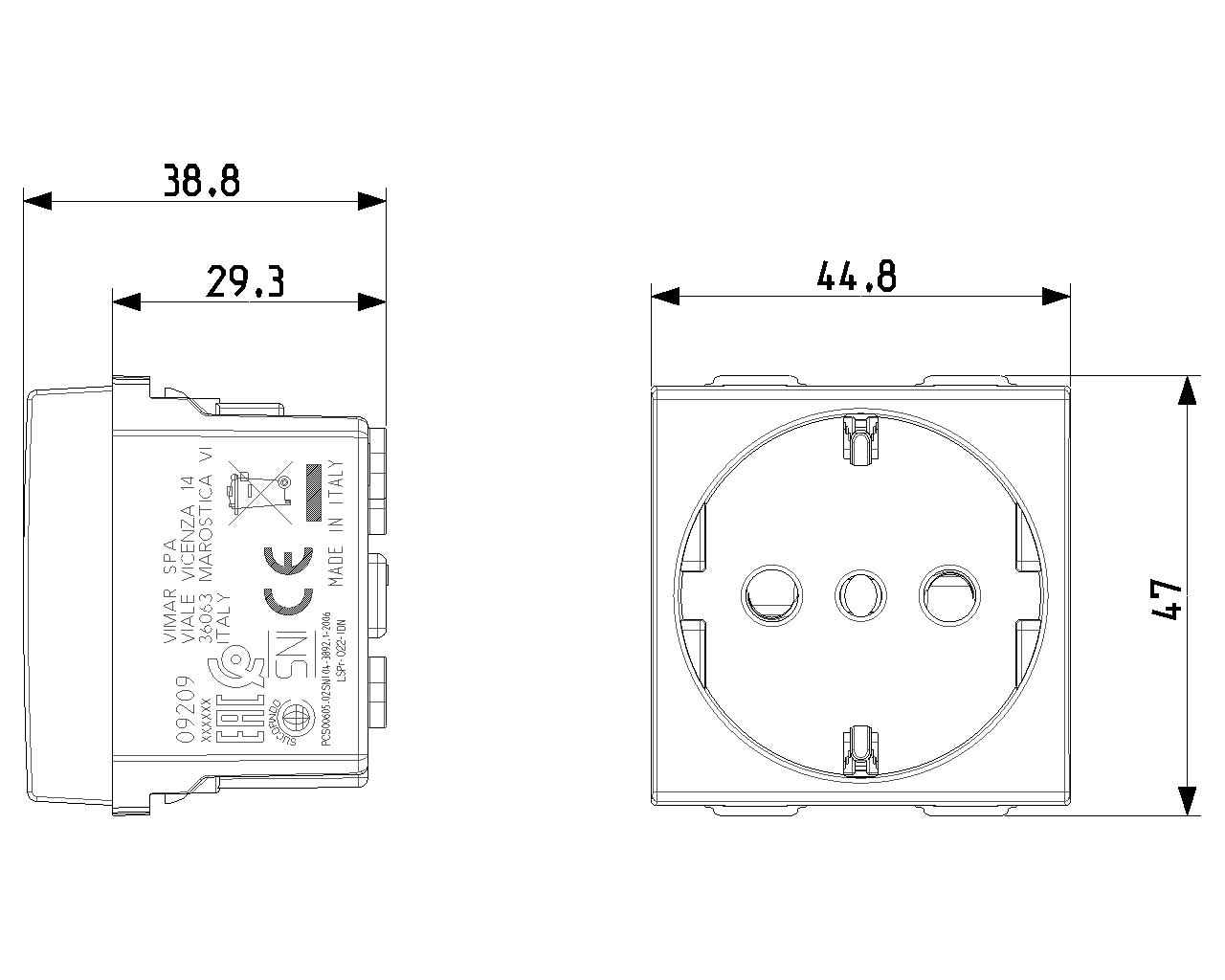

Device width
44,80 mm
Device height
47,00 mm
Device depth
38,80 mm

00. CE Marking - EU

13. SNI - Indonesia

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352665613
1 NR
5.1x4.3x5.3 [cm]
44.8 [g]
Barcode Qty 20 NR
8007352665620
20 NR
26.9x11.6x9 [cm]
991.47 [g]
Barcode Qty 240 NR
8007352665637
240 NR
38x28.5x35.5 [cm]
12,398.67 [g]
