Surface-box 2M 30mm height Silver - 09972.SL

Pdf
Vimar - 09972.SL - Surface-box 2M 30mm height Silver
Vimar - 09972.SL - Surface-box 2M 30mm height Silver

09972.SL
System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

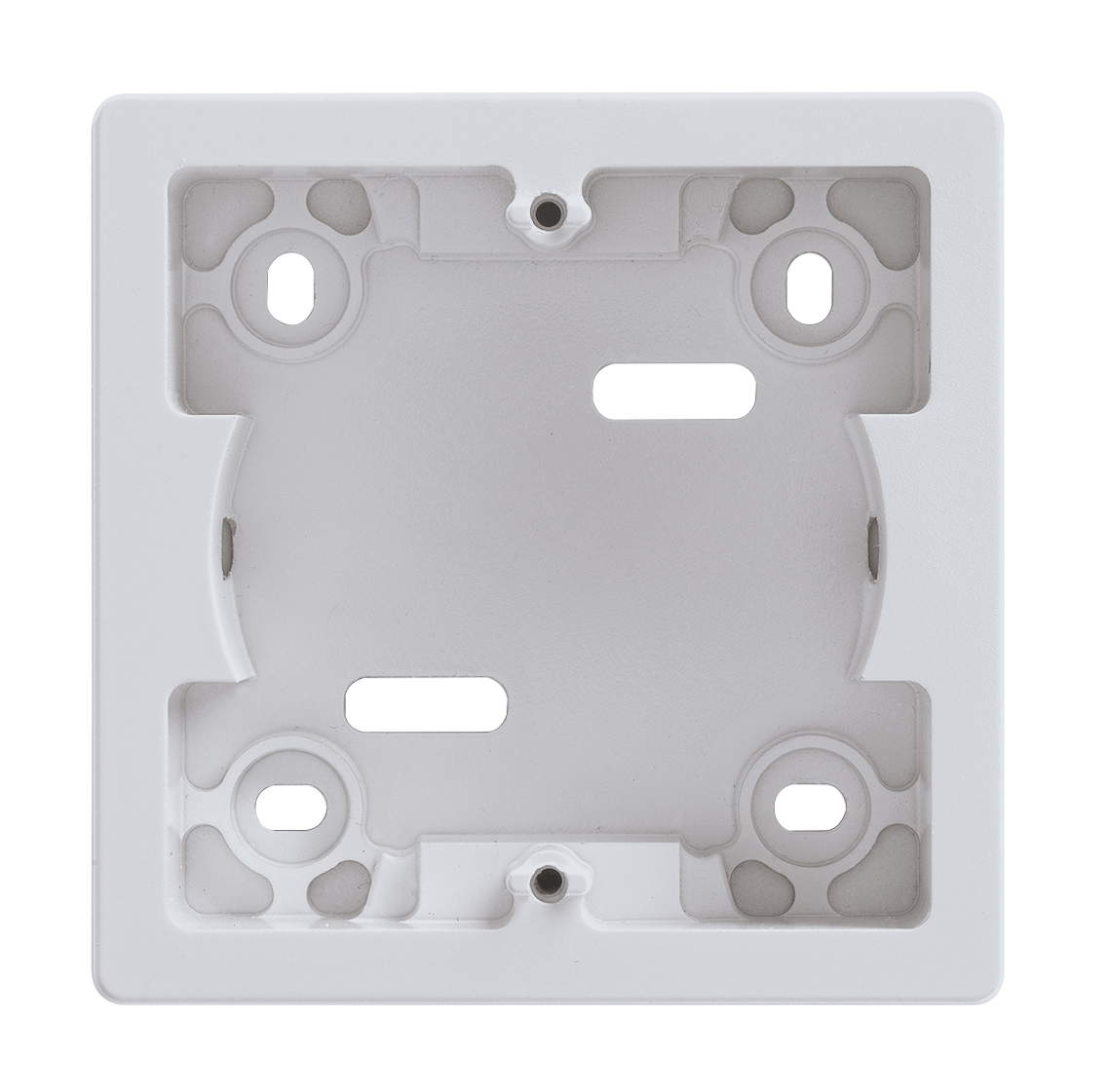

Surface-box 2M 30mm height Silver
Square surface mounting box, 30 mm depth, for 1- or 2-reduced-module Idea and 2 module Eikon and Plana with relevants mounting frames and cover plates, Silver. To be installed on insulating non-perforated or metallic with earth connection surfaces

Product Status
2 - Will be discontinued

Class group
Connection material (electrotechnical)
Class
Box/housing for surface mounting on the wall/ceiling
Max. conductor cross section
0
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
For tube diameter
20/25 mm
Inlet from the rear
No
Length
84,00 mm
Width
84,00 mm
Depth
30,00 mm
Diameter
0 mm
Connectable
No
Number of inlets
2
Type of housing feed-through
None
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP20
Cover model
Other
Transparent cover
No
Cover attachment
Screwed
Castable
No
Casting compound included
No
Sealable
No
Rated insulation voltage Ui
450 V
Circuit integrity
None
With screening
No
Weatherproof
No
Operating temperature
0 - 60 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352321311
1 NR
9.2x8.4x3 [cm]
48.07 [g]
Barcode Qty 20 NR
8007352321328
20 NR
28.4x18.4x11.6 [cm]
1,089.2 [g]
