09983.N
System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

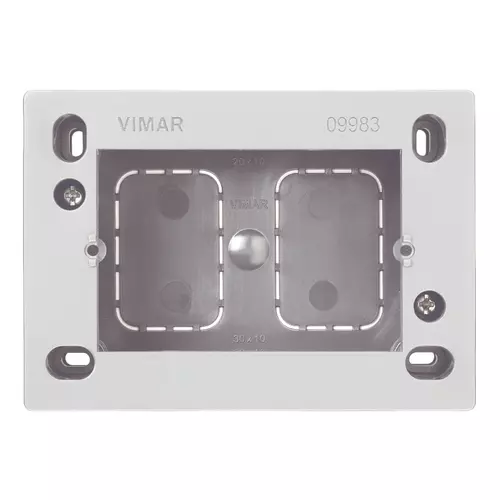

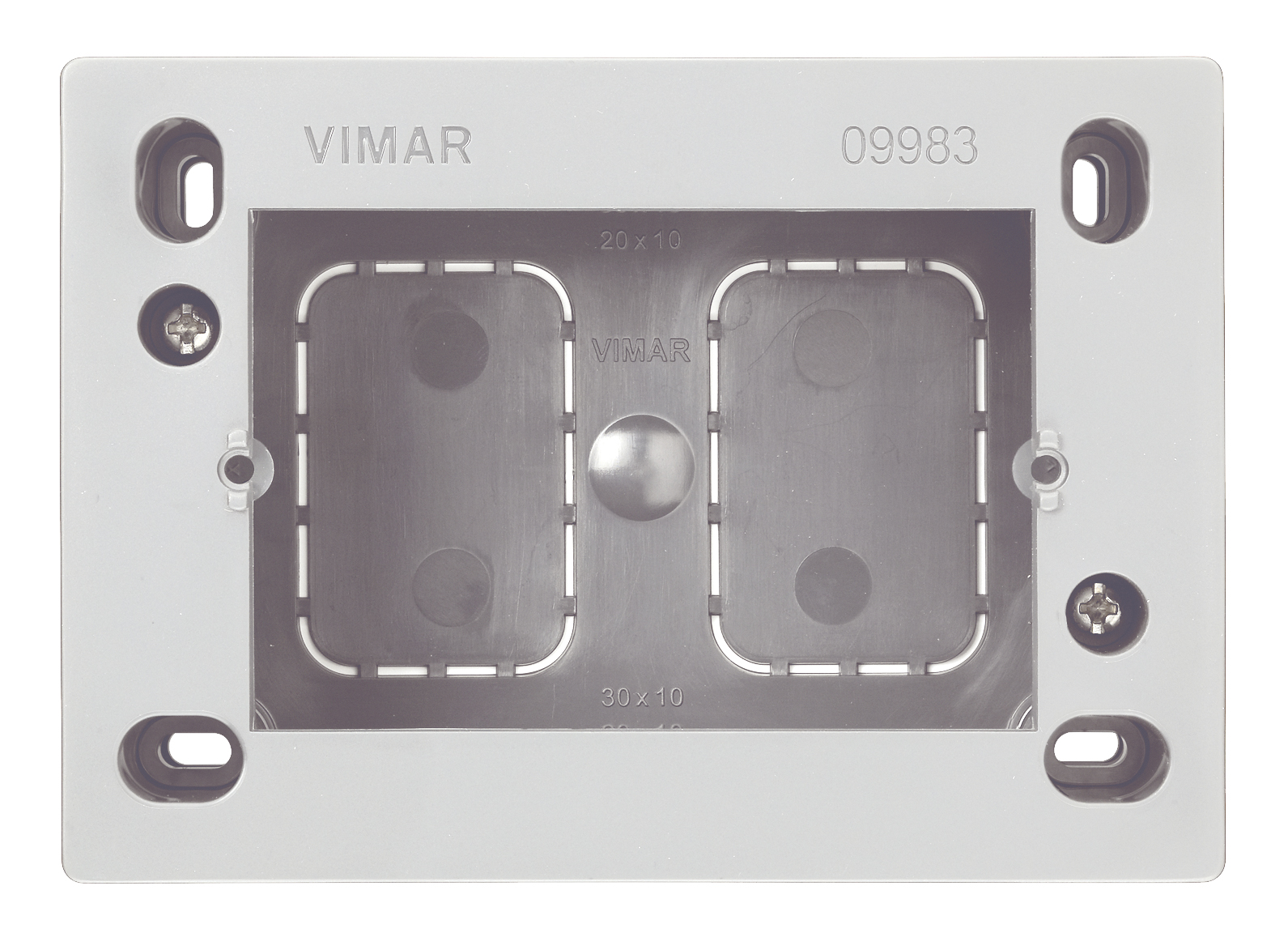

Surface-box 3M Next
3-module surface mounting box, 35/45 mm depth, for Eikon, Idea and Plana with relevants mounting frame and cover plates, Next
Product Status
2 - Will be discontinued
Drawings
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Box/housing for surface mounting on the wall/ceiling
Box/housing for surface mounting on the wall/ceiling
Max. conductor cross section
0
0
Equipped with
None
None
Shape
Rectangular
Rectangular
Mounting method
Wall-/ceiling mounting
Wall-/ceiling mounting
Mounting in the soil
No
No
Mounting under water
No
No
For tube diameter
20/25 mm
20/25 mm
Inlet from the rear
Yes
Yes
Length
87,10 mm
87,10 mm
Width
122,10 mm
122,10 mm
Depth
46,00 mm
46,00 mm
Diameter
0 mm
0 mm
Connectable
No
No
Number of inlets
4
4
Type of housing feed-through
None
None
Material
Plastic
Plastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Colour
Grey
Grey
Degree of protection (IP)
IP20
IP20
Cover model
Other
Other
Transparent cover
No
No
Cover attachment
Screwed
Screwed
Castable
No
No
Casting compound included
No
No
Sealable
No
No
Rated insulation voltage Ui
450 V
450 V
Circuit integrity
None
None
With screening
No
No
Weatherproof
No
No
Operating temperature
0 - 60 °C
0 - 60 °C
Explosion-tested version
No
No
For Ex-zone gas
None
None
For Ex-zone dust
None
None
00. CE Marking - EU
37. Marking - Morocco
Minimum order quantity: 10 NR
Barcode
8007352290891
1 NR
12.1x8.4x4.5 [cm]
80.33 [g]
8007352290907
10 NR
28.6x24.8x9.6 [cm]
946 [g]
