Self-bearing plate 1M USA type - 10735.U

Pdf
Vimar - 10735.U - Self-bearing plate 1M USA type
Vimar - 10735.U - Self-bearing plate 1M USA type

10735.U
Wiring devices / Traditional wiring devices / LINEA Classica / Cover plates

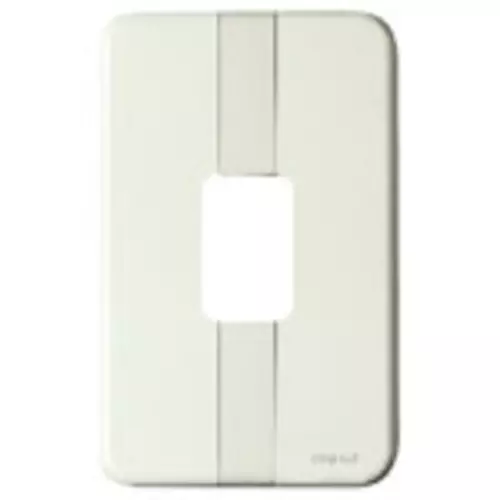

Self-bearing plate 1M USA type
1-module USA type self-bearing cover plate, resin, with screws for 3-module flush mounting boxes, ivory. Provided with screw covering strips 10799.01

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
76,00 mm
Height
120,00 mm
Built-in width
76,00 mm
Built-in height
76,00 mm
Diameter bore hole (opening)
0 mm

01. IMQ - Italy

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352044081
1 NR
7.6x12x2 [cm]
31.47 [g]
Barcode Qty 20 NR
8007352004016
20 NR
25x18.9x8.4 [cm]
734.33 [g]
