IP40 enclosure - 2M Idea/sp.M 8000 grey - 13023

Pdf

13023
System infrastructure / Enclosures and control units / Protected&watertight series / IDEA/8000-watertight&protected

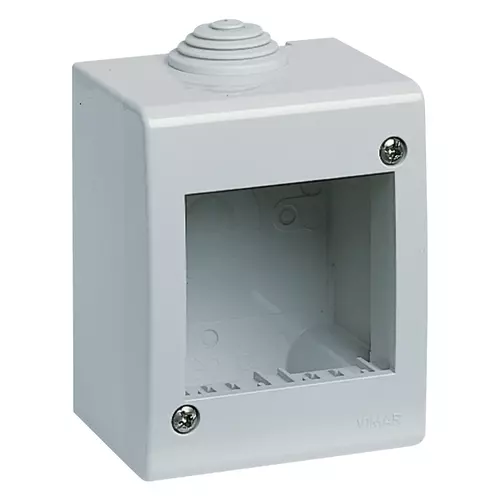

IP40 enclosure - 2M Idea/sp.M 8000 grey
IP40 surface enclosure for 2 Idea modules or 2 8000 special modules, RAL 7035 grey. Provided with 2 adaptors 08491 for 8000 standard module

Product Status
3 - Active

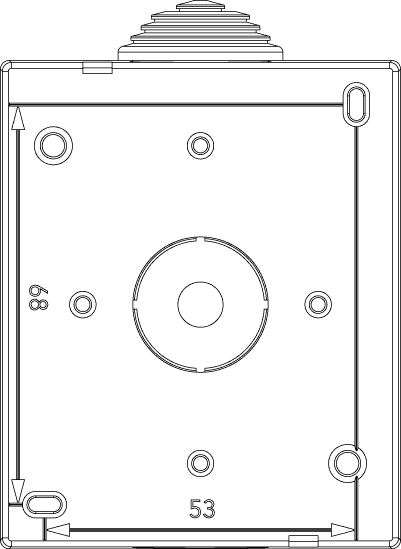

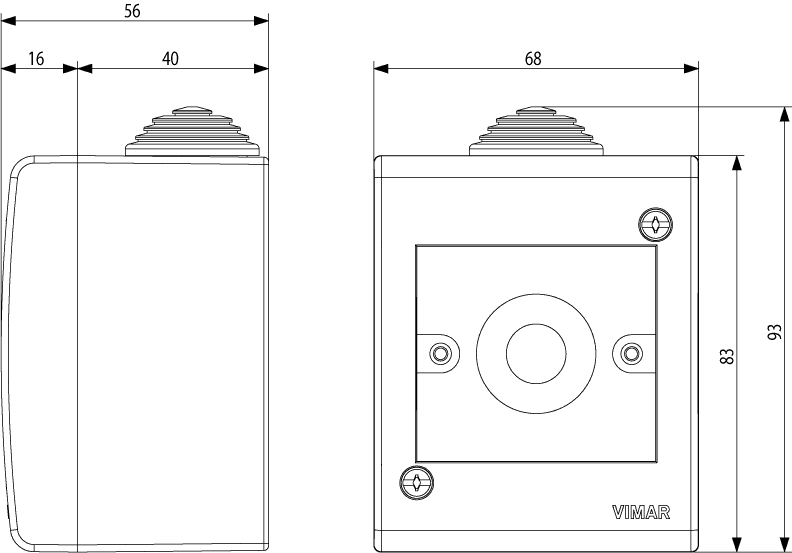

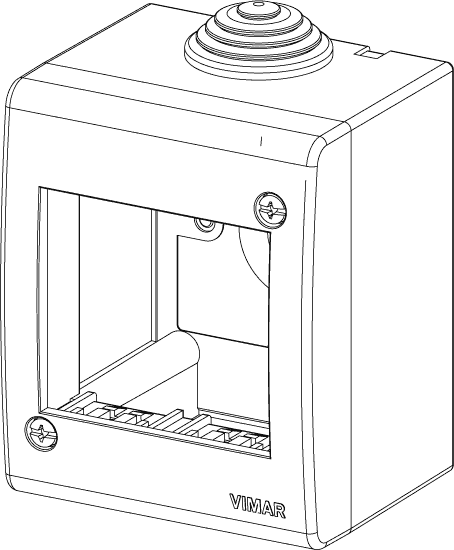

Drawings

Class group
Connection material (electrotechnical)
Class
Equipment carrier for insulated walls
Material
Plastic
Mounting surfaces
Other
With full insulating materials
Yes
Minimum order quantity: 75 NR

Barcode

Barcode Qty 1 NR
8007352091351
1 NR
6.8x9.3x5.6 [cm]
68.63 [g]
Barcode Qty 5 NR
8007352095915
5 NR
34.1x9.4x5.7 [cm]
343.13 [g]
Barcode Qty 75 NR
8007352115804
75 NR
38.5x29x30 [cm]
5,655.33 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
