1P 10AX 2-way switch mechanism - 14004.0

Pdf
14004.0

Plana / Devices / Basic devices

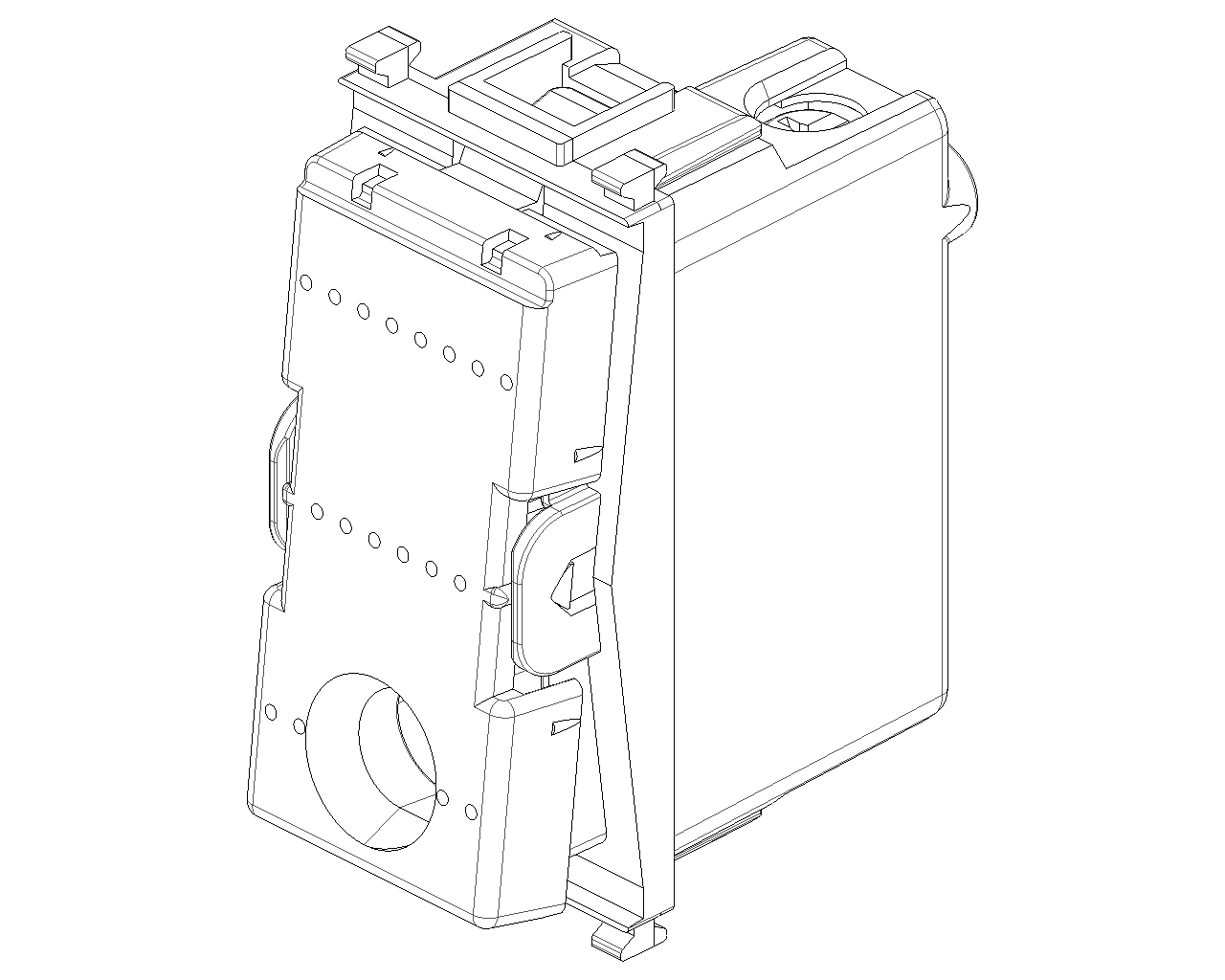

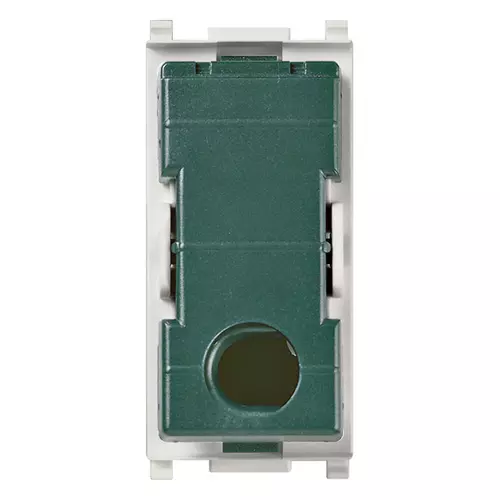

1P 10AX 2-way switch mechanism
1P 10 AX 250 V~ 2-way switch mechanism, lightable, to complete with 1,2 or 3-module button. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Green
RAL-number (akin)
9003
Label space/information surfac
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
Not included
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

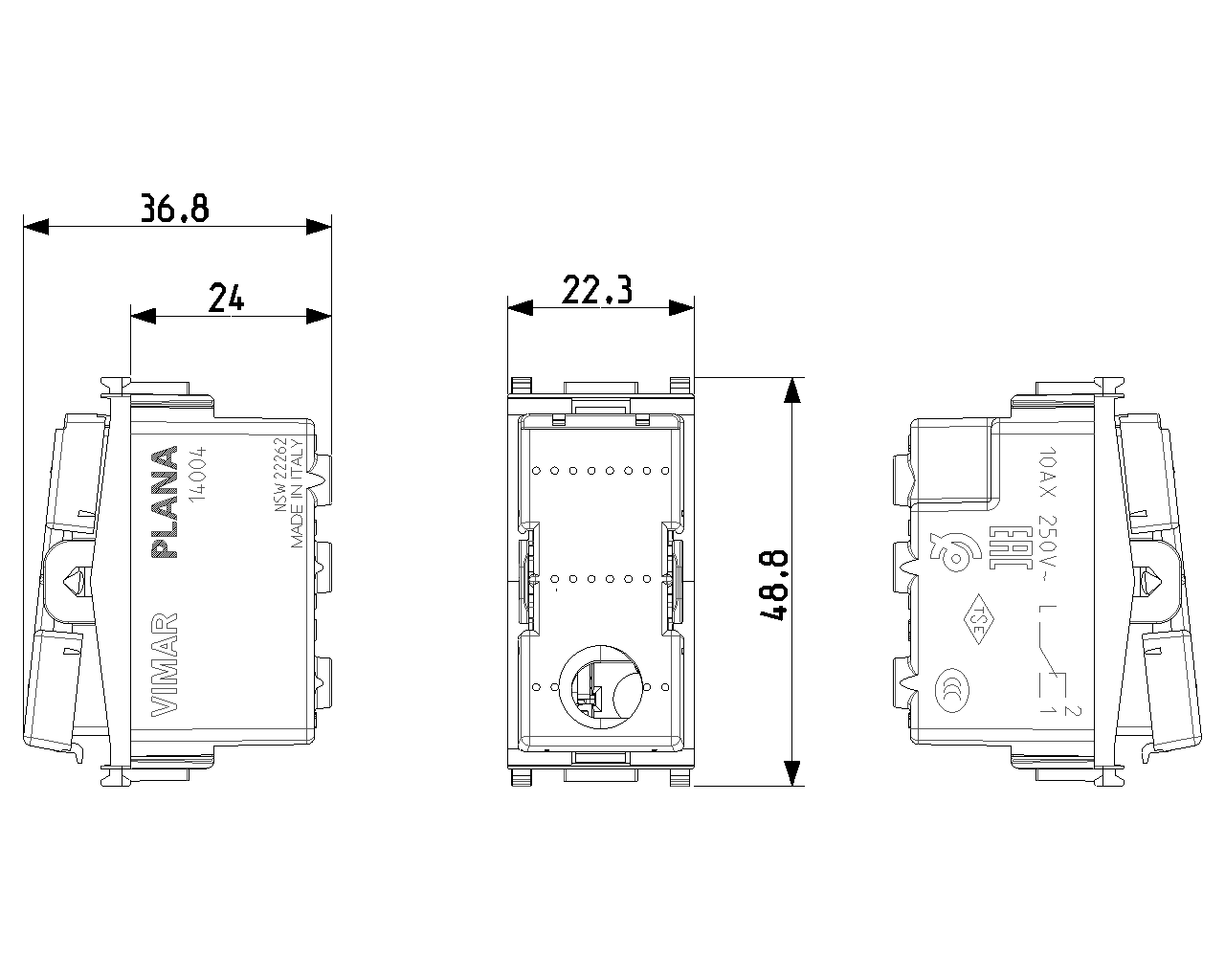

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Built-in depth
24,00 mm
Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352106420
1 NR
4.1x2.8x5.3 [cm]
25.4 [g]
Barcode Qty 50 NR
8007352118690
50 NR
21.6x11.6x14.3 [cm]
1,363.6 [g]
Barcode Qty 500 NR
8007352641006
500 NR
57.5x22.5x30 [cm]
14,120 [g]
