1P 10AX 2-way switch 2M white - 14004.2

Pdf
14004.2

Plana / Devices / Basic devices

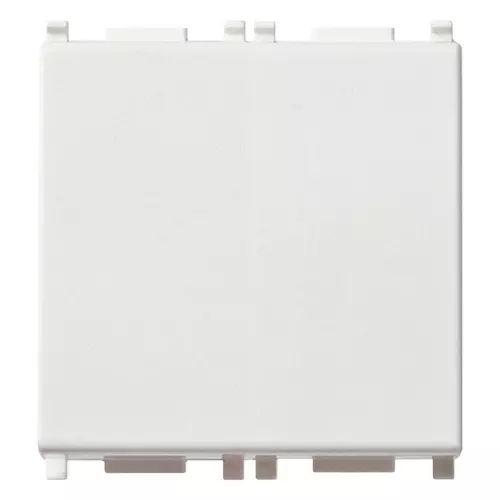

1P 10AX 2-way switch 2M white
1P 10 AX 250 V~ 2-way switch, lightable, replaceable button, white - 2 modules. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Label space/information surfac
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
Not included
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

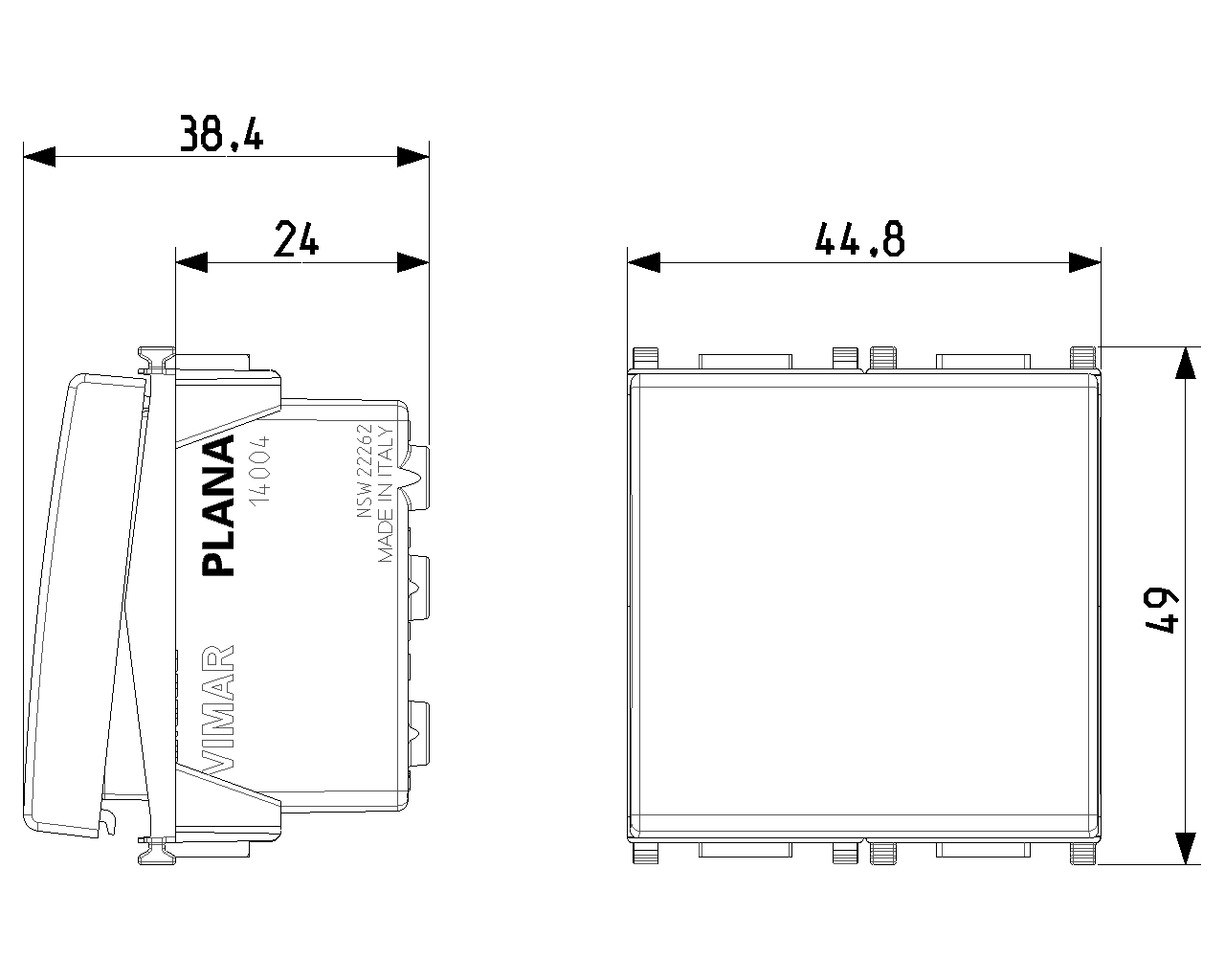

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Built-in depth
24,00 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352119895
1 NR
5.1x4.3x5.3 [cm]
38.4 [g]
Barcode Qty 20 NR
8007352119901
20 NR
26.9x11.6x9 [cm]
847.6 [g]
Barcode Qty 240 NR
8007352335776
240 NR
38x28.5x35.5 [cm]
10,652 [g]
