Three1P 20AX 2-way switches Silver - 14007.SL

Pdf
14007.SL

Plana Silver / Devices / Basic devices

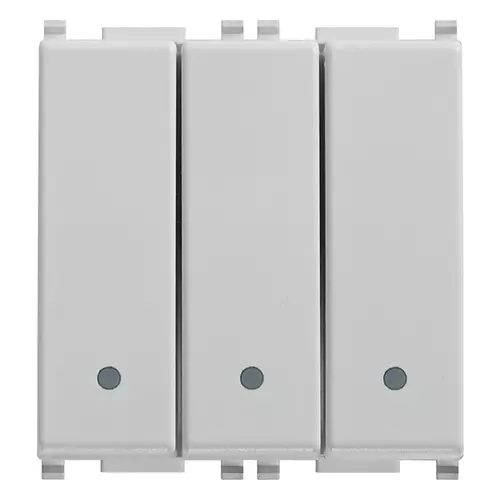

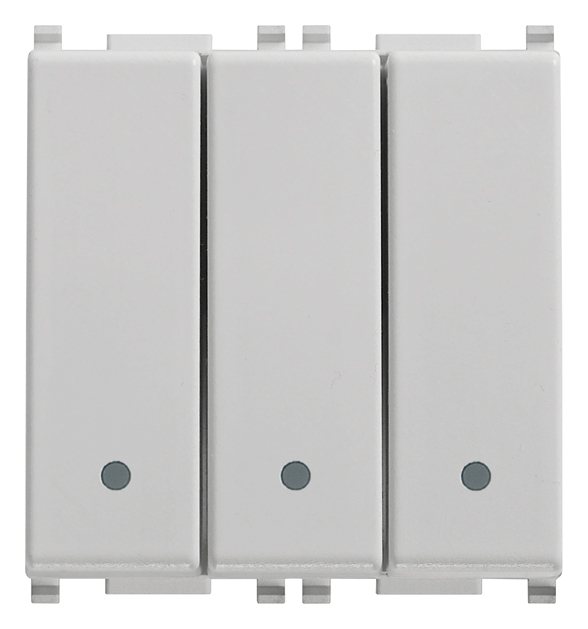

Three1P 20AX 2-way switches Silver
Three 1P 20 AX 250 V~ 2-way switches, Silver - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
3
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (akin)
9006
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
20 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

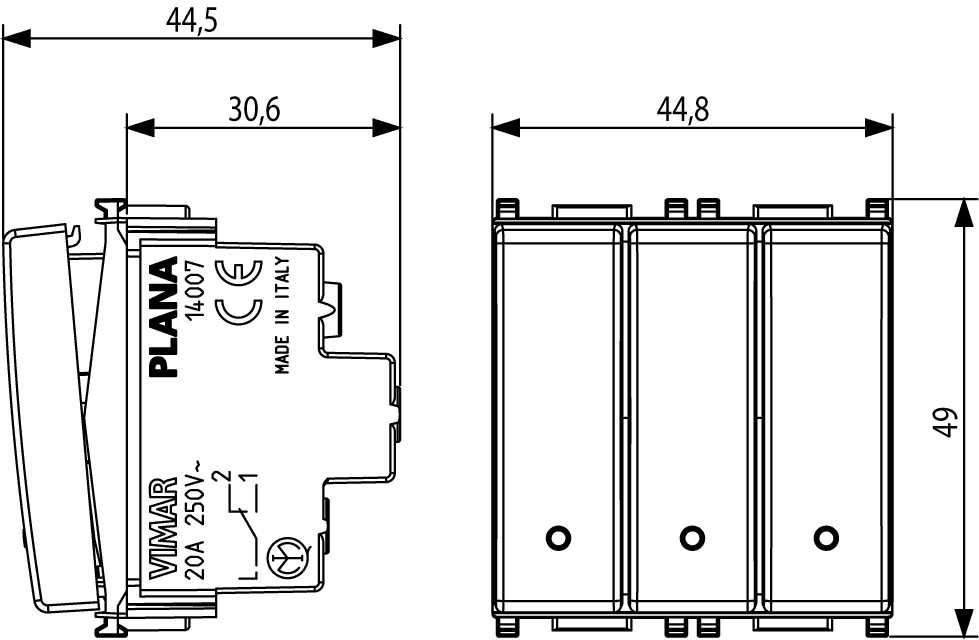

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
44,60 mm
Built-in depth
30,60 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352404441
1 NR
5.1x4.3x5.3 [cm]
75.3 [g]
Barcode Qty 20 NR
8007352404458
20 NR
26.4x11x10.9 [cm]
1,585.5 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
