1P NO 10A push button 2M white - 14008.2

Pdf
14008.2

Plana / Devices / Basic devices

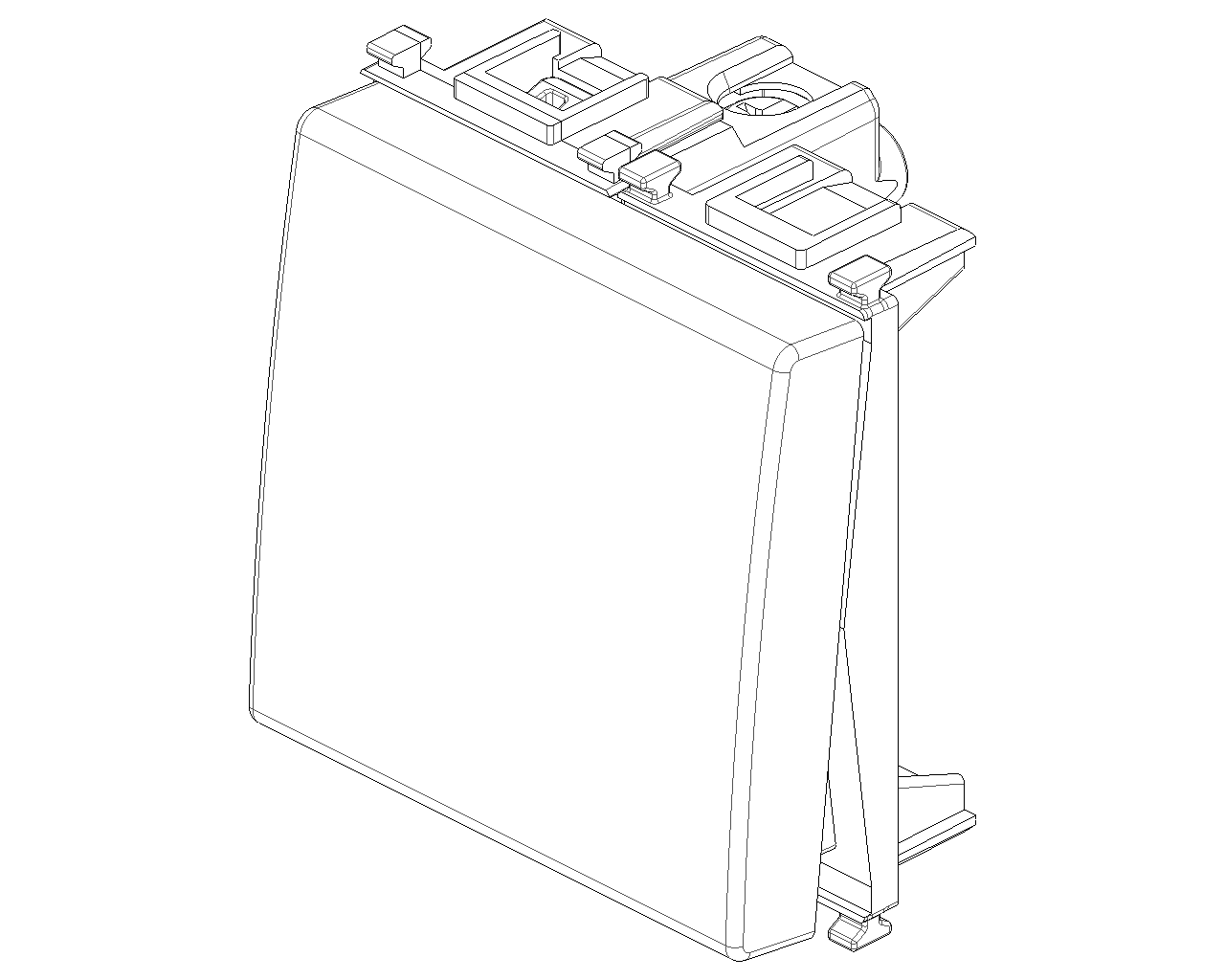

1P NO 10A push button 2M white
1P NO 10 A 250 V~ push button, lightable, replaceable button, white - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
2
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

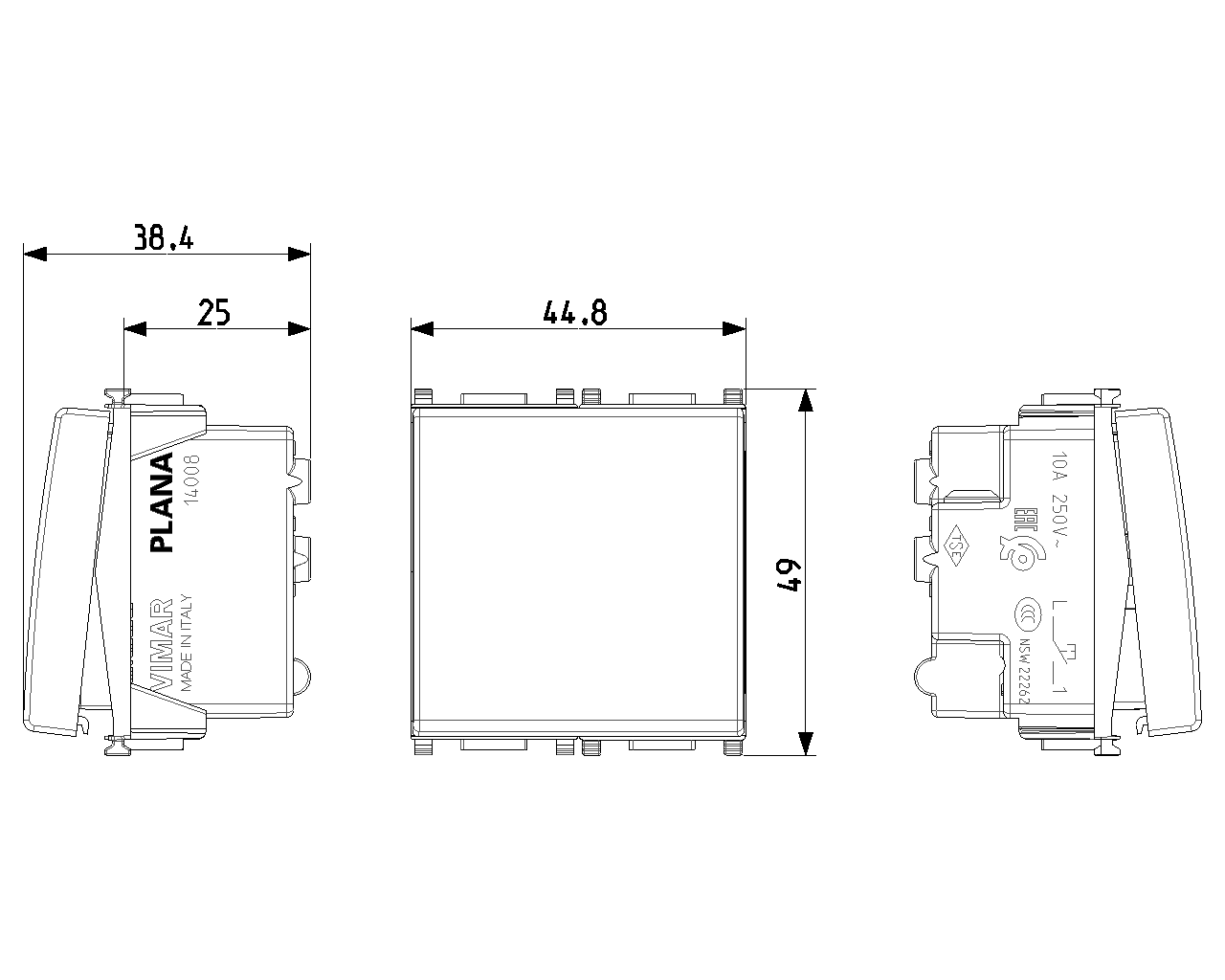

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
38,40 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesia

19. NOM - Mexico

20. IRAM - Argentina

31. TISI - Thailand

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352119970
1 NR
5.1x4.3x5.3 [cm]
37.13 [g]
Barcode Qty 20 NR
8007352119987
20 NR
26.9x11.6x9 [cm]
822.4 [g]
Barcode Qty 240 NR
8007352640573
240 NR
38x28.5x35.5 [cm]
10,404 [g]
Question: What is the minimum and maximum operating temperature?
Answer: The specifications regarding the room operating temperatures valid for our electromechanical controls are as follows: - They must not exceed 40°C, considering also that an average of 35°C must not be exceeded in a 24-hour period. - They must not drop below -5°C.
