Vimar - 14008.2.L.SL - 1P NO10A pushbutton light symb.2M Silver

14008.2.L.SL

Plana Silver / Devices / Basic devices

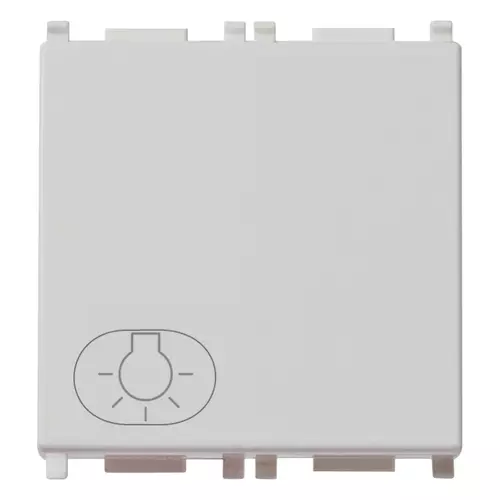

1P NO10A pushbutton light symb.2M Silver
1P NO 10 A 250 V~ push button, light symbol, lightable, replaceable button, Silver - 2 modules

Product Status
3 - Active

Drawings

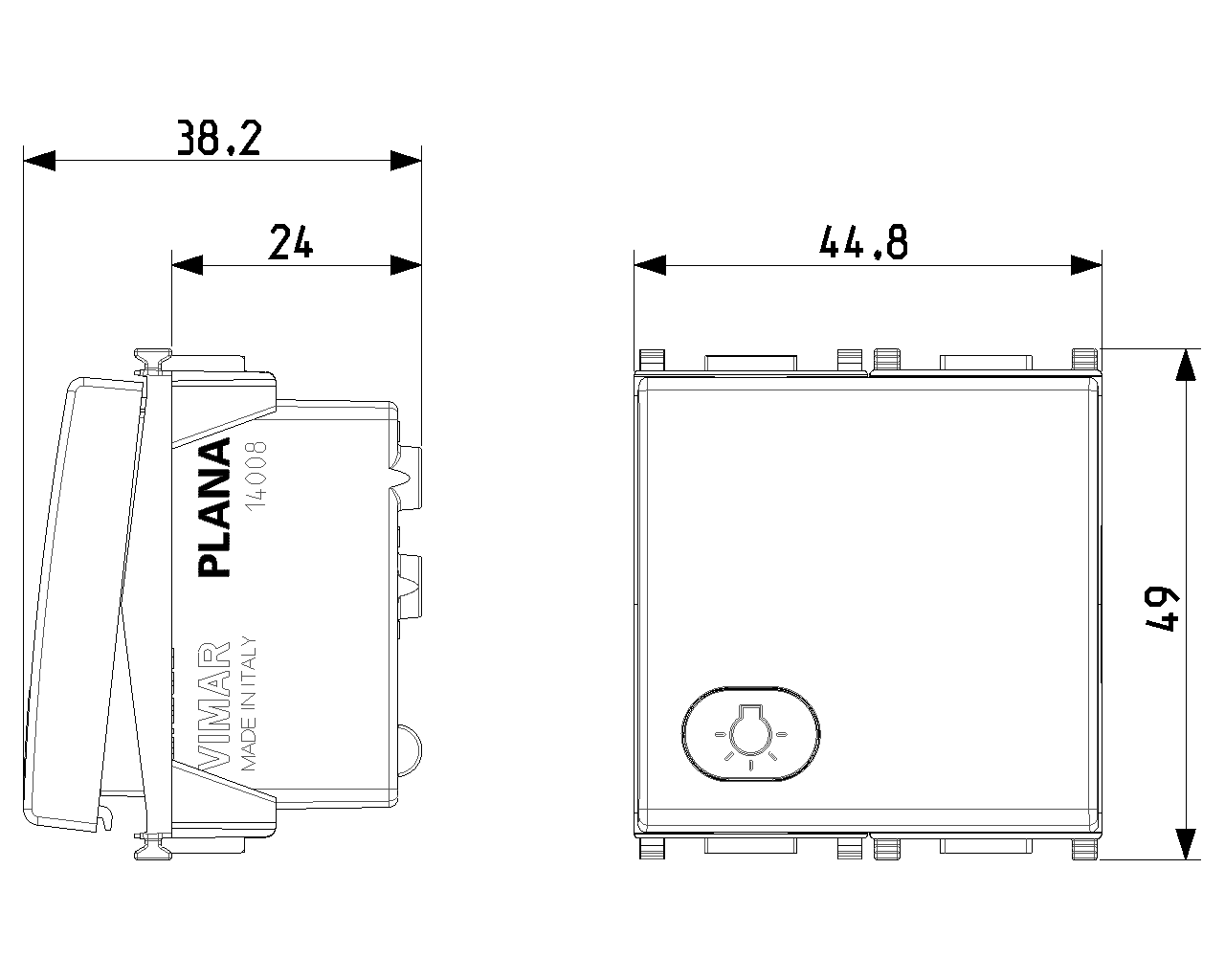

view encumbered art. 14008.2.L.SL

PNG DXF

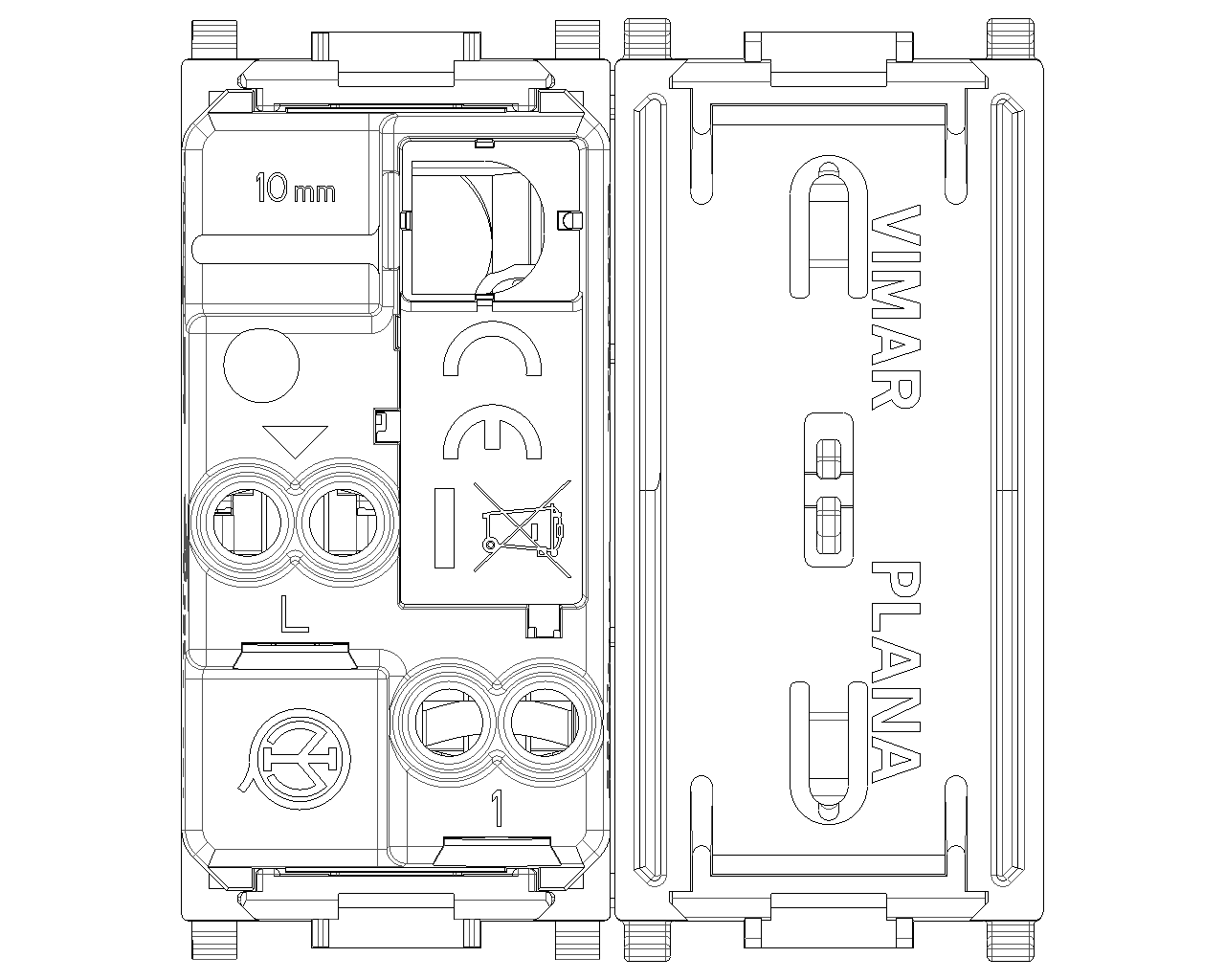

rear view art. 14008.2.L.SL

PNG DXF

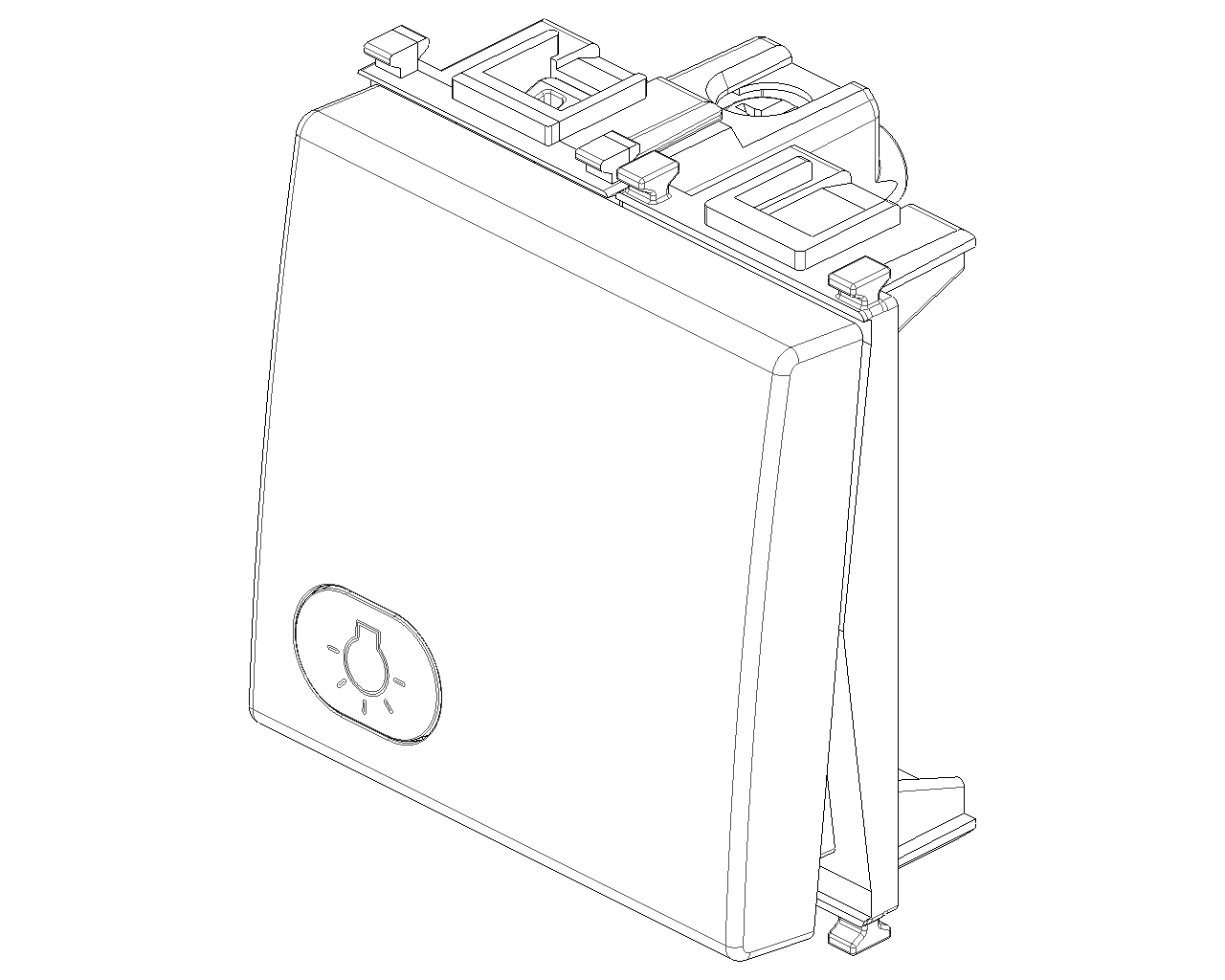

3D view art. 14008.2.L.SL

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
200

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Glossy

Colour
Silver

RAL-number (similar)
9006

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
44,80 mm

Device height
49,00 mm

Device depth
38,40 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352320079

1 NR

5.1x4.3x5.3 [cm]

36.27 [g]

8007352320086

20 NR

26.9x11.6x9 [cm]

806.81 [g]
