1P NO 10A push button Silver - 14008.SL

Pdf
14008.SL

Plana Silver / Devices / Basic devices

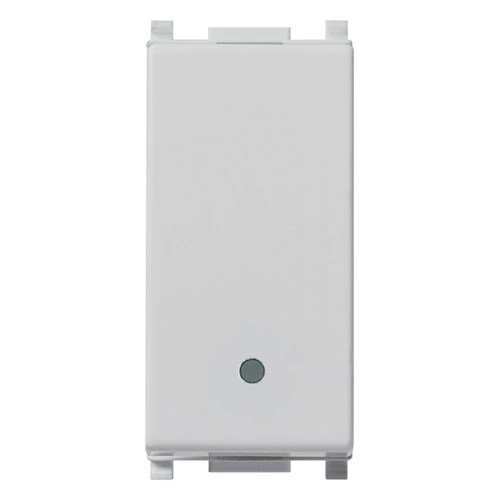

1P NO 10A push button Silver
1P NO 10 A 250 V~ push button, lightable, replaceable button, Silver

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,40 mm

00. CE Marking - EU

07. INGCER - Chile

10. EAC Eurasian Customs Union

19. NOM - Mexico

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352320154
1 NR
4.1x2.8x5.3 [cm]
25 [g]
Barcode Qty 50 NR
8007352320161
50 NR
21.6x11.6x14.3 [cm]
1,355 [g]
Barcode Qty 500 NR
8007352351998
500 NR
57.5x22.5x30 [cm]
14,050 [g]
Question: What is the minimum and maximum operating temperature?
Answer: The specifications regarding the room operating temperatures valid for our electromechanical controls are as follows: - They must not exceed 40°C, considering also that an average of 35°C must not be exceeded in a 24-hour period. - They must not drop below -5°C.

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
