Button 2M O/I symbol white - 14022.99

Pdf

14022.99
Wiring devices / Traditional wiring devices / PLANA / Buttons

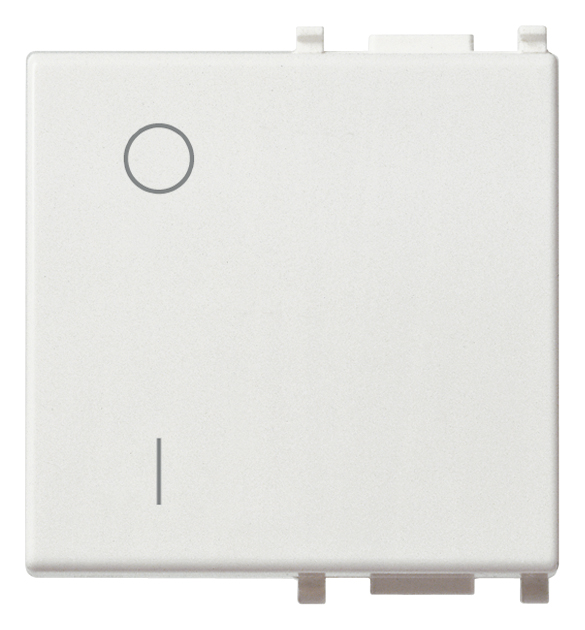

Button 2M O/I symbol white
Interchangeable 2-module button, O I symbol for 14015.0 2P switch mechanism, with lightable ring pilot lamp, white

Product Status
3 - Active

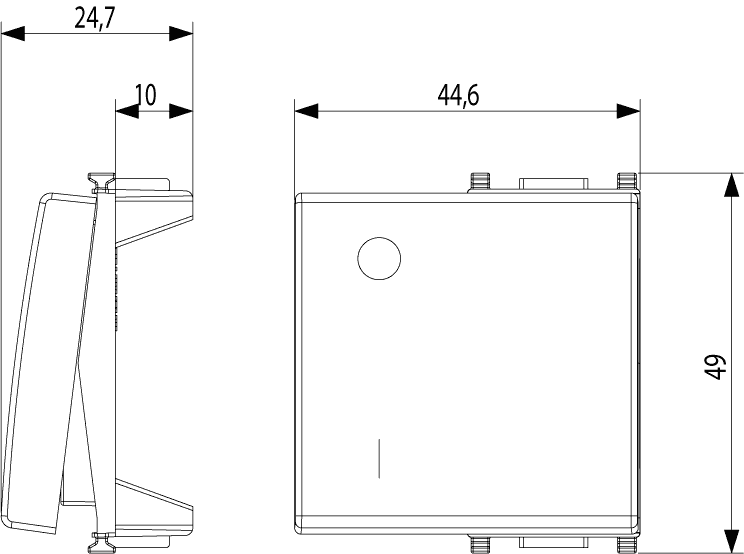

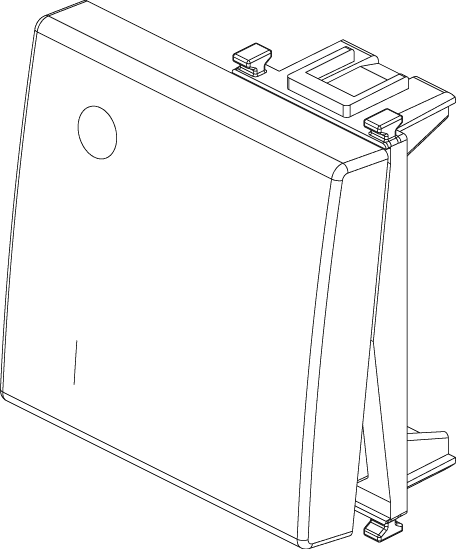

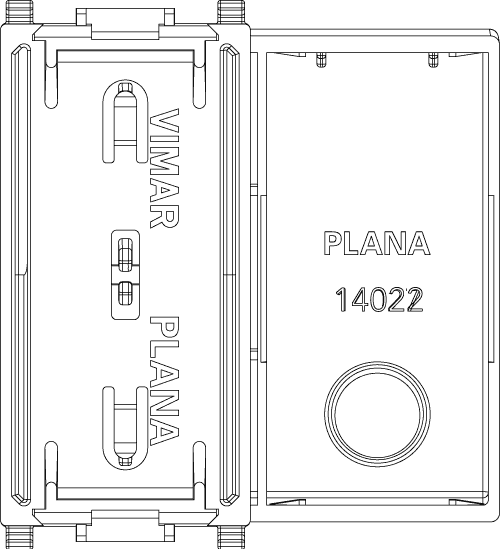

Drawings

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
Characters 0 and 1
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
1.470,00 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352112520
1 NR
4.9x2.5x4.5 [cm]
10.45 [g]
Barcode Qty 2 NR
8007352112537
2 NR
5.1x2.8x5.3 [cm]
24.71 [g]
Barcode Qty 20 NR
8007352112544
20 NR
14.4x11.6x6 [cm]
289.07 [g]
