1P NO+NC 10A push button ON symb.Silver - 14056.34.SL

Pdf
Vimar - 14056.34.SL - 1P NO+NC 10A push button ON symb.Silver
Vimar - 14056.34.SL - 1P NO+NC 10A push button ON symb.Silver
14056.34.SL

Plana Silver / Devices / Devices - other functions

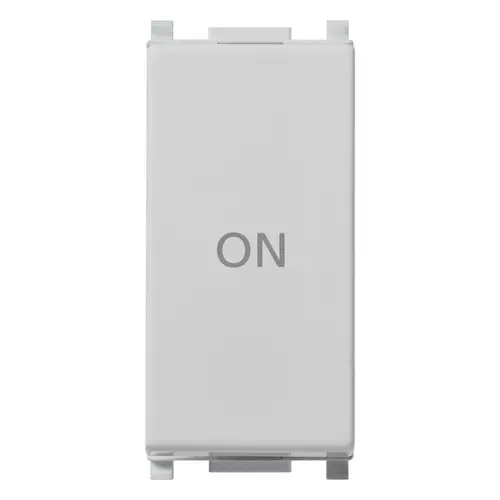

1P NO+NC 10A push button ON symb.Silver
1P 10 A 250 V~ push button, 1 NO contact + 1 NC contact, ON symbol, Silver

Product Status
3 - Active

Drawings

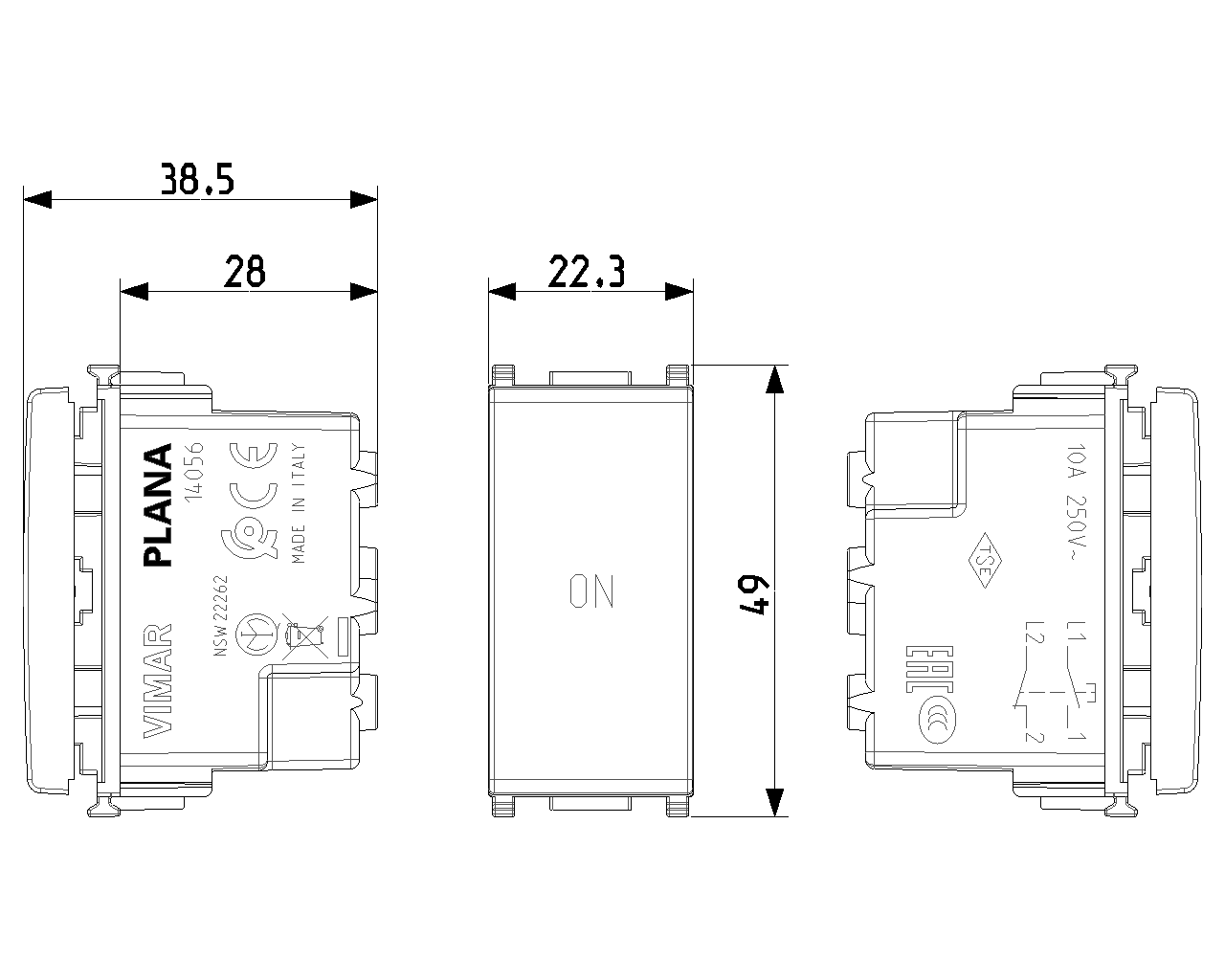

view encumbered art. 14056.34.SL
PNG DXF

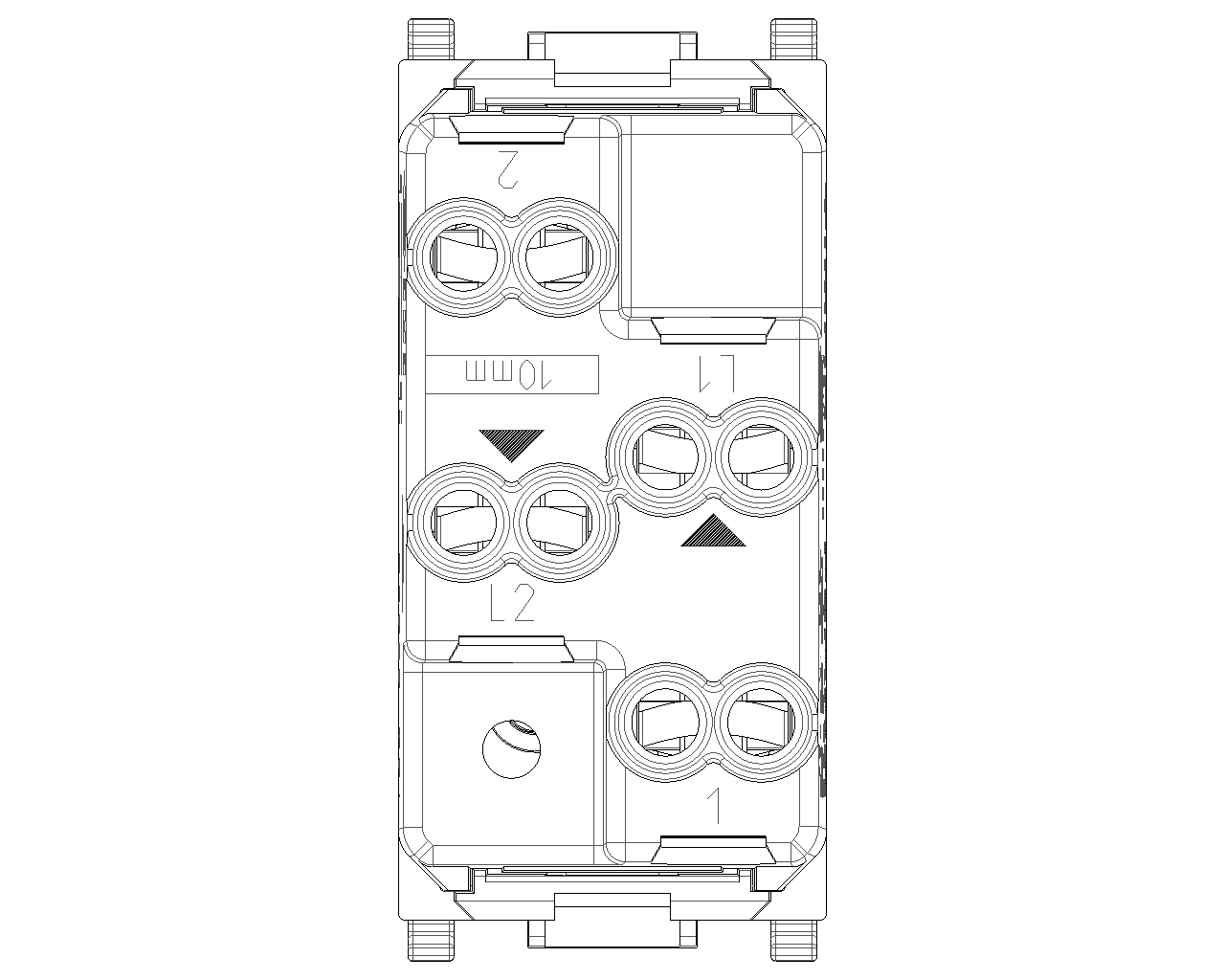

rear view art. 14056.34.SL
PNG DXF

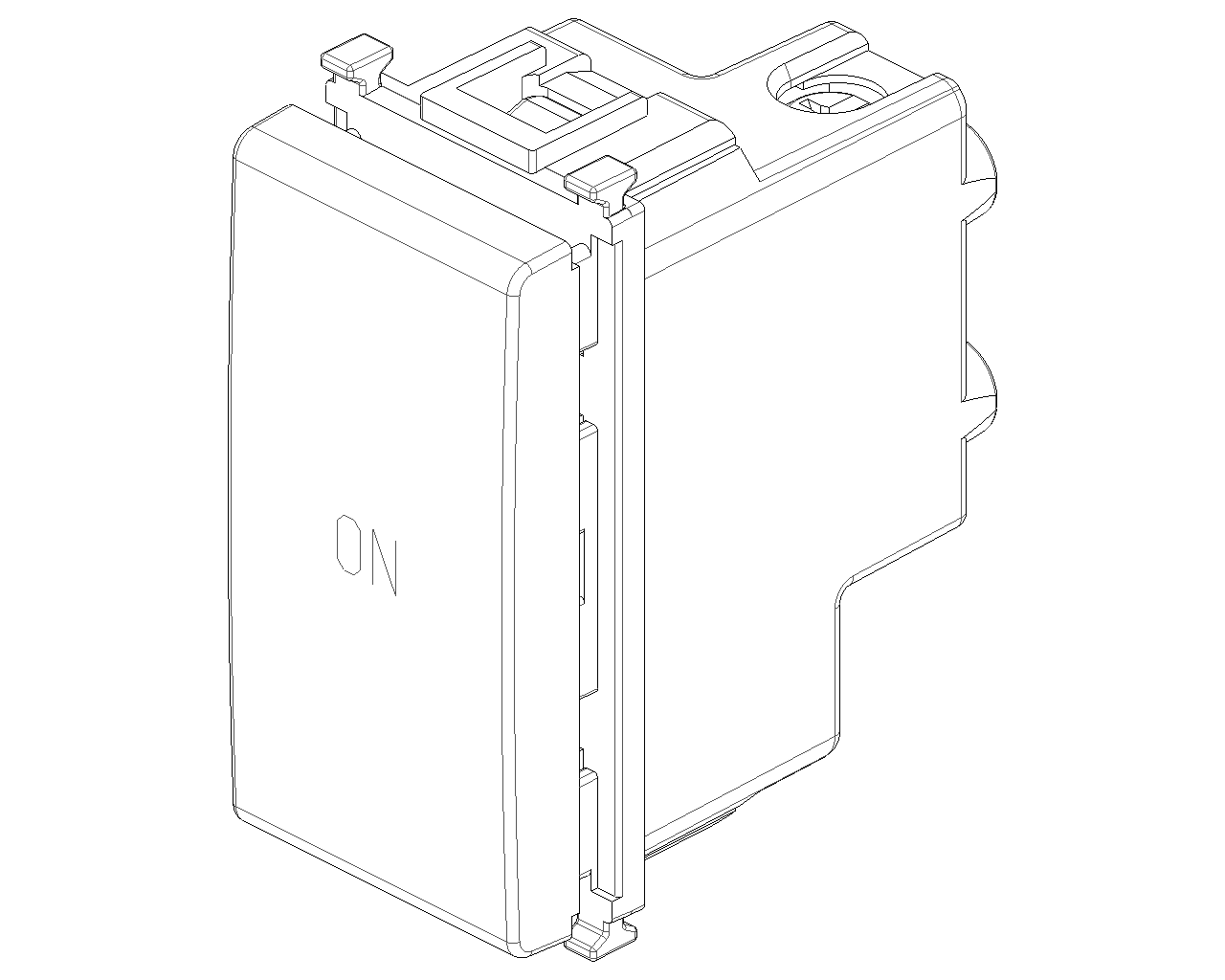

3D view art. 14056.34.SL
PNG DXF
Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

19. NOM - Mexico

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352320901
1 NR
4.1x2.8x5.3 [cm]
32.73 [g]
Barcode Qty 20 NR
8007352320918
20 NR
21.4x11.6x6 [cm]
711.53 [g]
