2P NO 16A push button +000-key Silver - 14087.CU.SL

Pdf
14087.CU.SL

Plana Silver / Devices / Devices - other functions

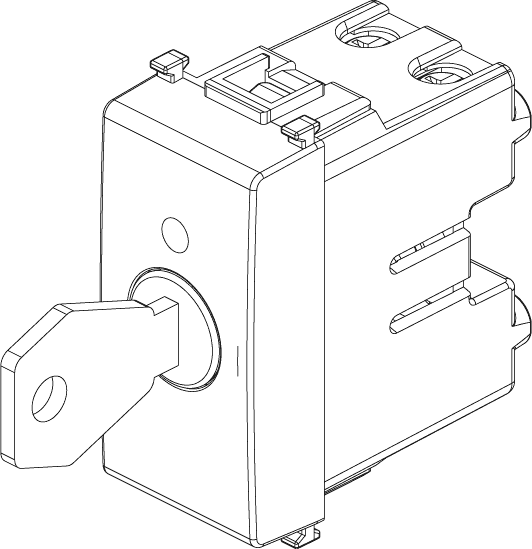

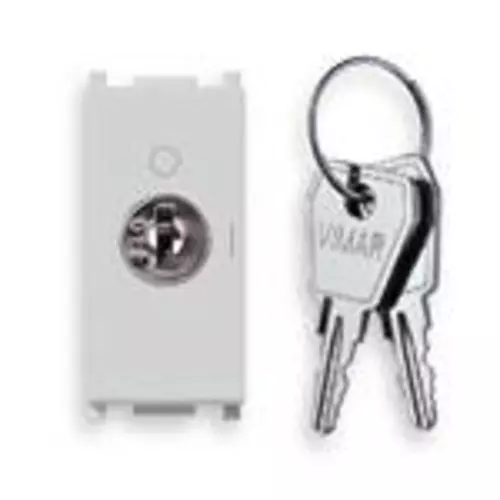

2P NO 16A push button +000-key Silver
2P NO 16 A 250 V~ key-operated push button, with 000 unified key, Silver

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Contacts
2 make contacts (NO)
Number of poles
2
Feedback-signal contact
No
Number of rockers
0
Number of modules (module syst
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (akin)
9006
Transparent
No
Label space/information surfac
Yes
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
16,00 A

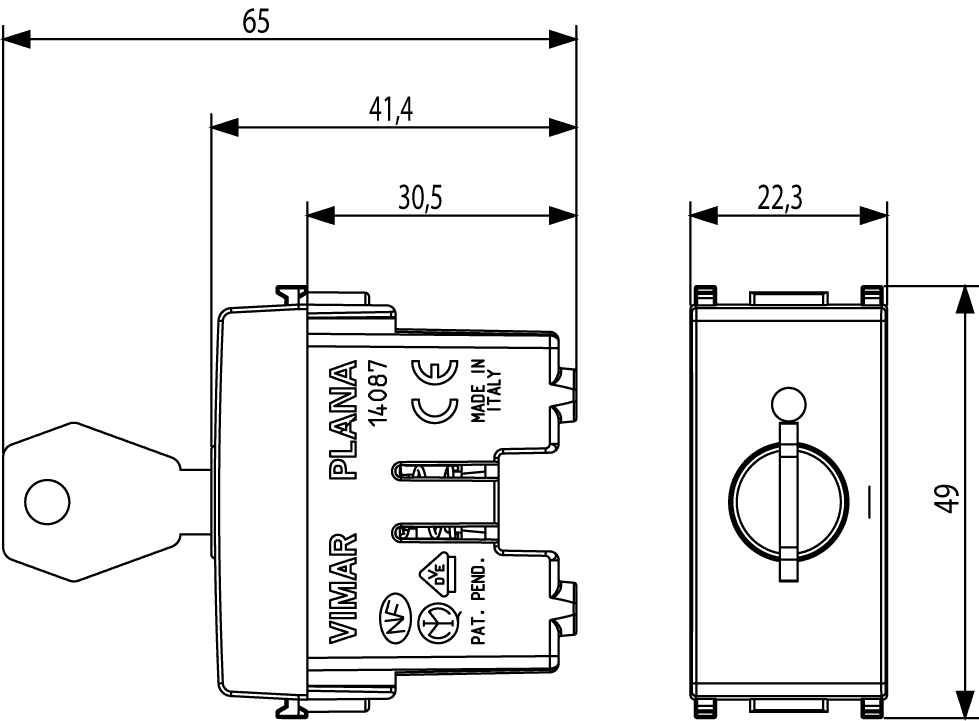

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
41,40 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352309623
1 NR
5.1x2.8x5.3 [cm]
51.6 [g]
Barcode Qty 20 NR
8007352309630
20 NR
27x11.6x6 [cm]
1,103.47 [g]
