MASTER dimmer 120V Silver - 14135.1.120.SL

Pdf

14135.1.120.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

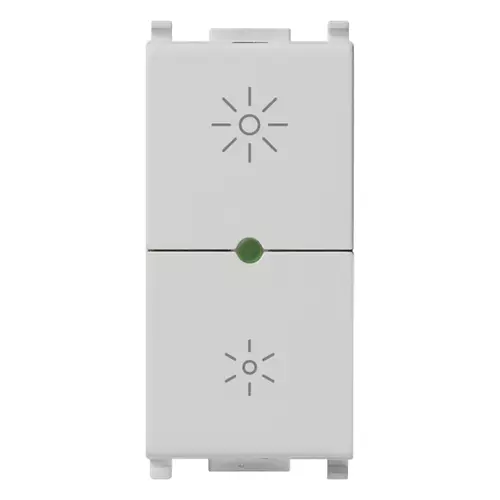

MASTER dimmer 120V Silver
Universal-dimmer 120 V~ 60 Hz, phase-cutting, for: 40-400 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 14137.120, minimum brightness regulation, visible in darkness, Silver. Not for Isoset enclosures

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 120,01 V
Frequency
60,00 - 60,01 HZ
Control voltage
120,00 - 120,01 V
Connection type
Screwed terminal
Device width
22,30 mm
Device height
49,00 mm
Device depth
50,70 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352575844
1 NR
5.1x4.3x5.3 [cm]
58.2 [g]
Barcode Qty 10 NR
8007352575851
10 NR
26.9x11.6x4.9 [cm]
647 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
