Univ.MASTER rotary-dimmer 230V white - 14136.1

Pdf
14136.1

Plana / Devices / Electronic devices

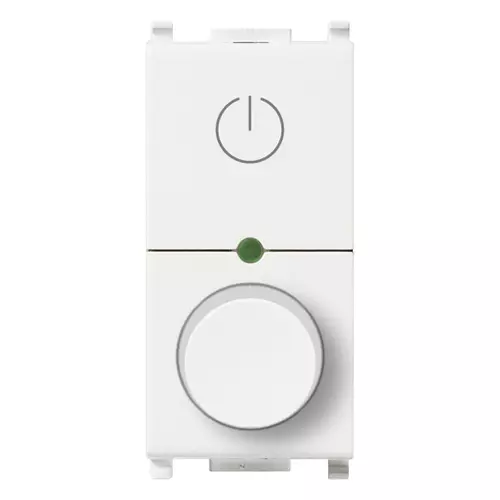

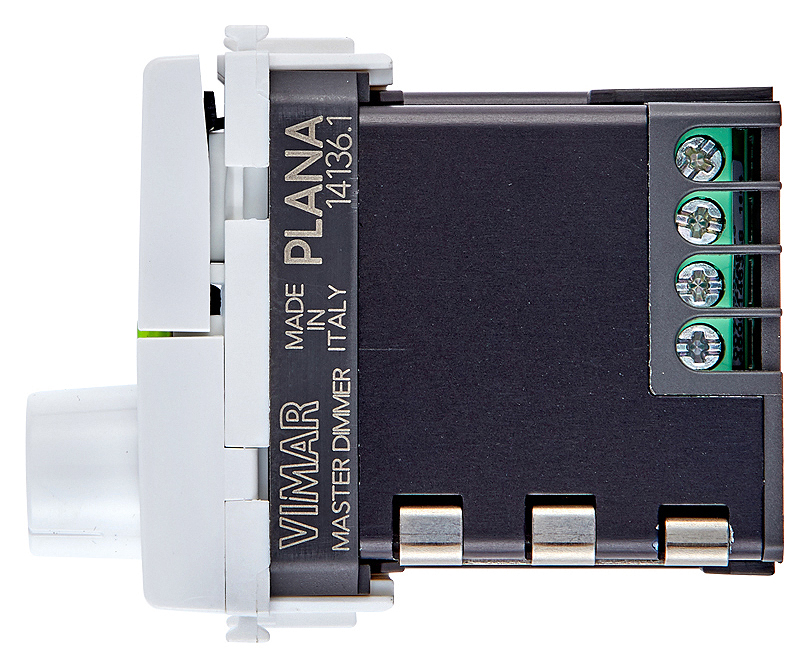

Univ.MASTER rotary-dimmer 230V white
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-400 W incandescent lamps, 40-300 VAelectronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 14137, minimum brightness regulation, visible in darkness, white. Not for Isoset enclosures

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement senso
No
Applicable with presence indic
No
Applicable with time switch/ti
No
Applicable with transmission b
No
Applicable with infrared butto
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Suitable for degree of protect
IP40
Nominal voltage
230,00 - 230,01 v
Frequency
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 v
Nominal power
40 - 400 VA
Connection type
Screwed terminal

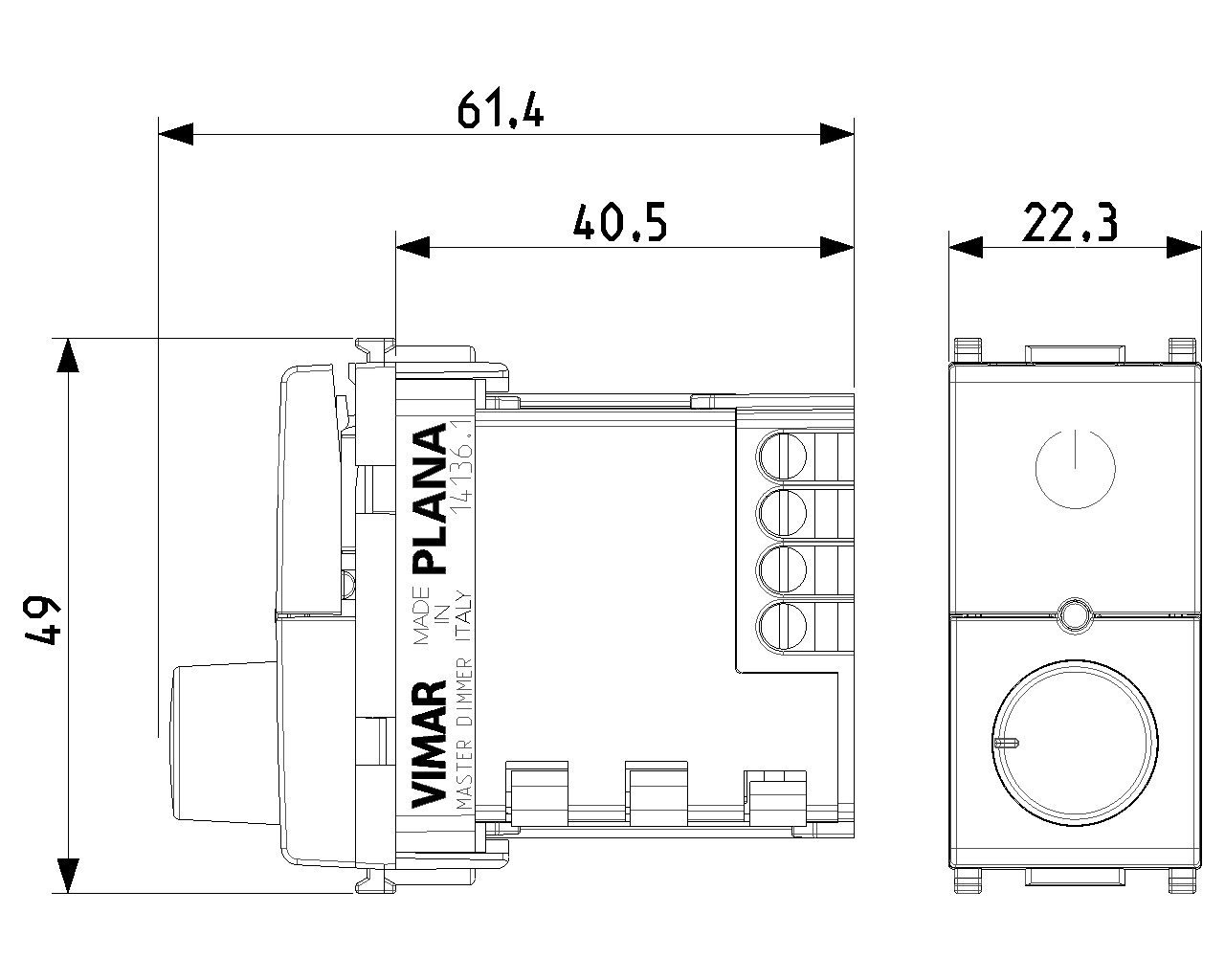

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
61,30 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352555136
1 NR
5.2x3.9x6.2 [cm]
56.4 [g]
Barcode Qty 10 NR
8007352555143
10 NR
20.5x11.5x7 [cm]
627.8 [g]
