Antibacterial rotary dimmer 230V - 14136.AB.1

Pdf
Vimar - 14136.AB.1 - Antibacterial rotary dimmer 230V
Vimar - 14136.AB.1 - Antibacterial rotary dimmer 230V

14136.AB.1
Wiring devices / Traditional wiring devices / PLANA / Devices

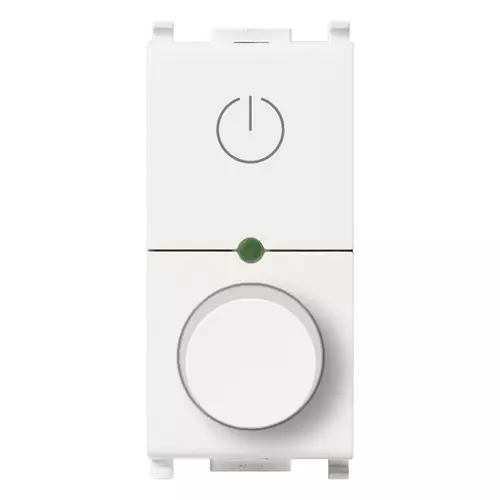

Antibacterial rotary dimmer 230V
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-400 W incandescent lamps, 40-300 VAelectronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LEDphase-cutting electronic transfomers, ON/OFF or built-in or from NO peripheral push buttons control, regulation by rotary potentiometer, MASTER function for 14137, minimum luminosity regulation, visible in darkness, with antibacterial treatment, white. Not for Isoset enclosures

Product Status
3 - Active

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Universal and LED Retrofit
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 V

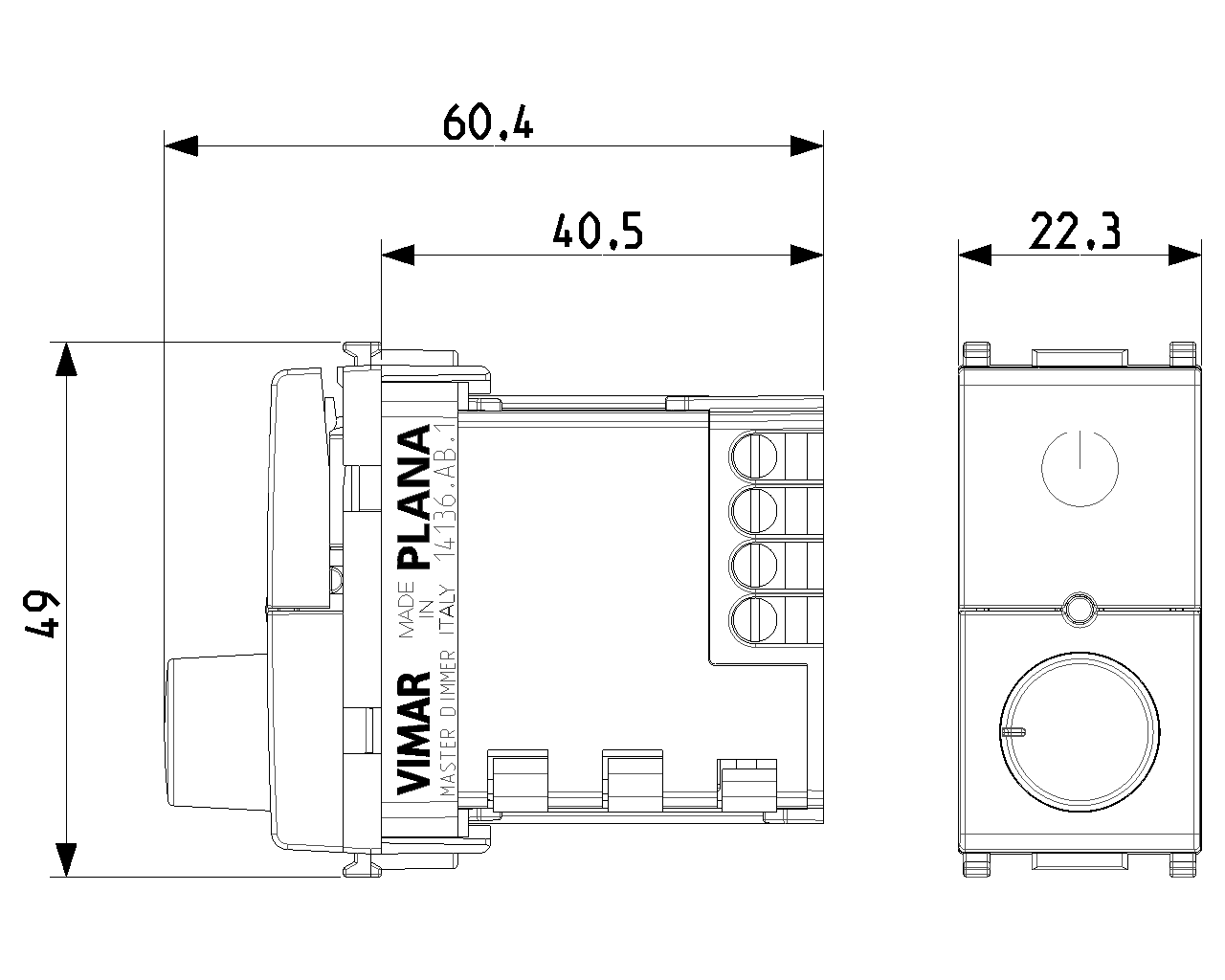

Device width
22,30 mm
Device height
49,00 mm
Device depth
61,30 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352555693
1 NR
5.2x3.9x6.2 [cm]
56.2 [g]
Barcode Qty 10 NR
8007352555709
10 NR
20.5x11.5x7 [cm]
626.6 [g]
