MASTER dimmer 120-230V Silver - 14148.SL

Pdf
14148.SL

Plana Silver / Devices / Electronic devices

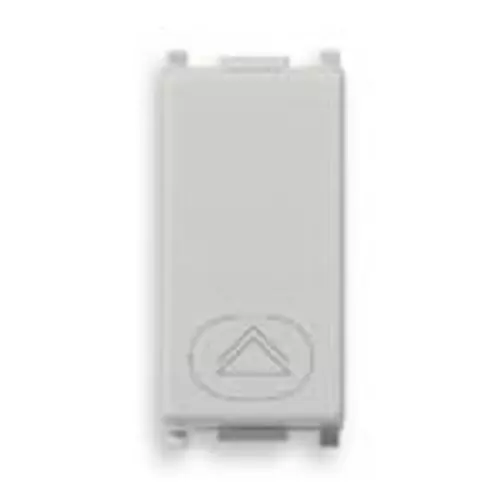

MASTER dimmer 120-230V Silver
Dimmer, 120-230 V~ 50-60 Hz, for: 40-500/40-800 W incandescent lamps, 40-300/40-500 VA ferromagnetic transformers, control and regulation with built-in push button or from peripheral NO push buttons, MASTER function, TRIAC technology, visible in darkness, Silver

Product Status
3 - Active

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Inductive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 230,00 v
Frequency
50,00 - 60,00 HZ
Control voltage
120,00 - 230,00 v
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
54,80 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352328143
1 NR
5.1x4.3x5.3 [cm]
53.49 [g]
Barcode Qty 10 NR
8007352328150
10 NR
26.9x11.6x4.9 [cm]
603.13 [g]
