IR relay-switch 120V white - 14181.120

Pdf
14181.120

Plana / Devices / Electronic devices

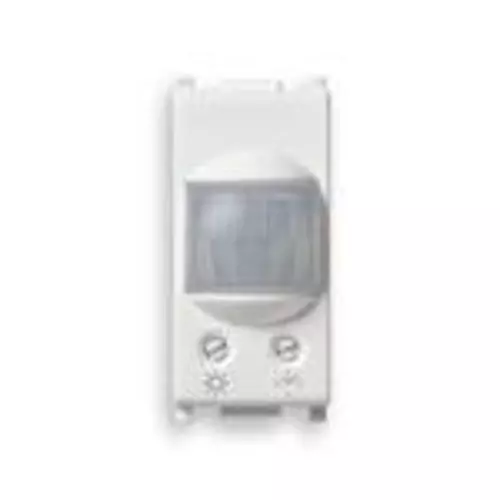

IR relay-switch 120V white
Automatic lighting switch with IR motion sensor, adjustable dusk/dawn sensor threshold and time-delay cycle, NO 6 A 120 V~ relay output, supply voltage 120 V~ 50-60 Hz, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Electronic insert for domestic switching devices
Model
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Radio-controlled
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352328327
1 NR

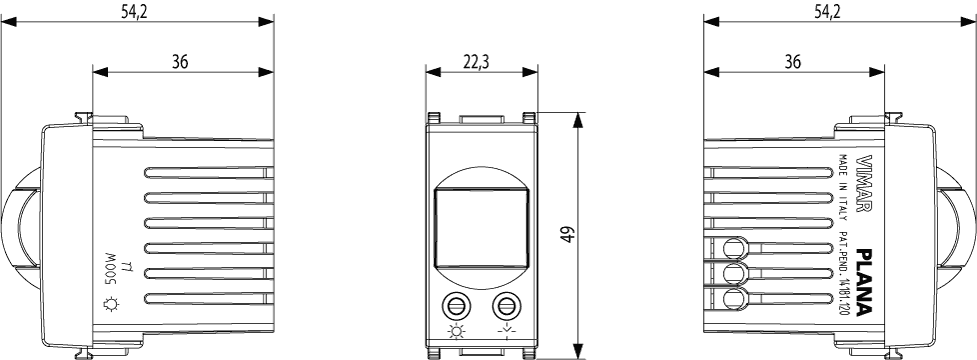

5.1x4.3x5.3 [cm]
50.87 [g]
Barcode Qty 5 NR
8007352328334
5 NR
14.4x11.6x6 [cm]
303.63 [g]
