Antibacterial 2P+E 16A univ.outlet green - 14210.AB.V

Pdf
Vimar - 14210.AB.V - Antibacterial 2P+E 16A univ.outlet green
Vimar - 14210.AB.V - Antibacterial 2P+E 16A univ.outlet green

14210.AB.V
Wiring devices / Traditional wiring devices / PLANA / Devices

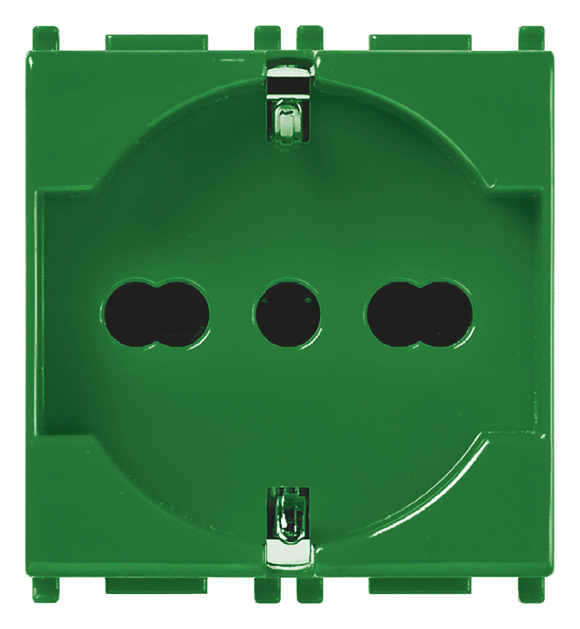

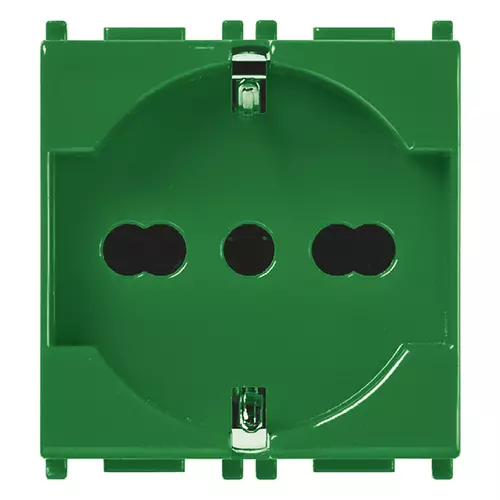

Antibacterial 2P+E 16A univ.outlet green
2P+E 16 A 250 V~ SICURY socket outlet, universal, for 2P 2,5 A Europlugs, 2P and 2P+E 10 A and 16 A Italian standard plugs, 2P+E 16 A German standard plugs, with antibacterial treatment, green - 2 modules. Earth connection is not realized with 2P+E 16 A 250 V~ French standard plug

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
6029
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

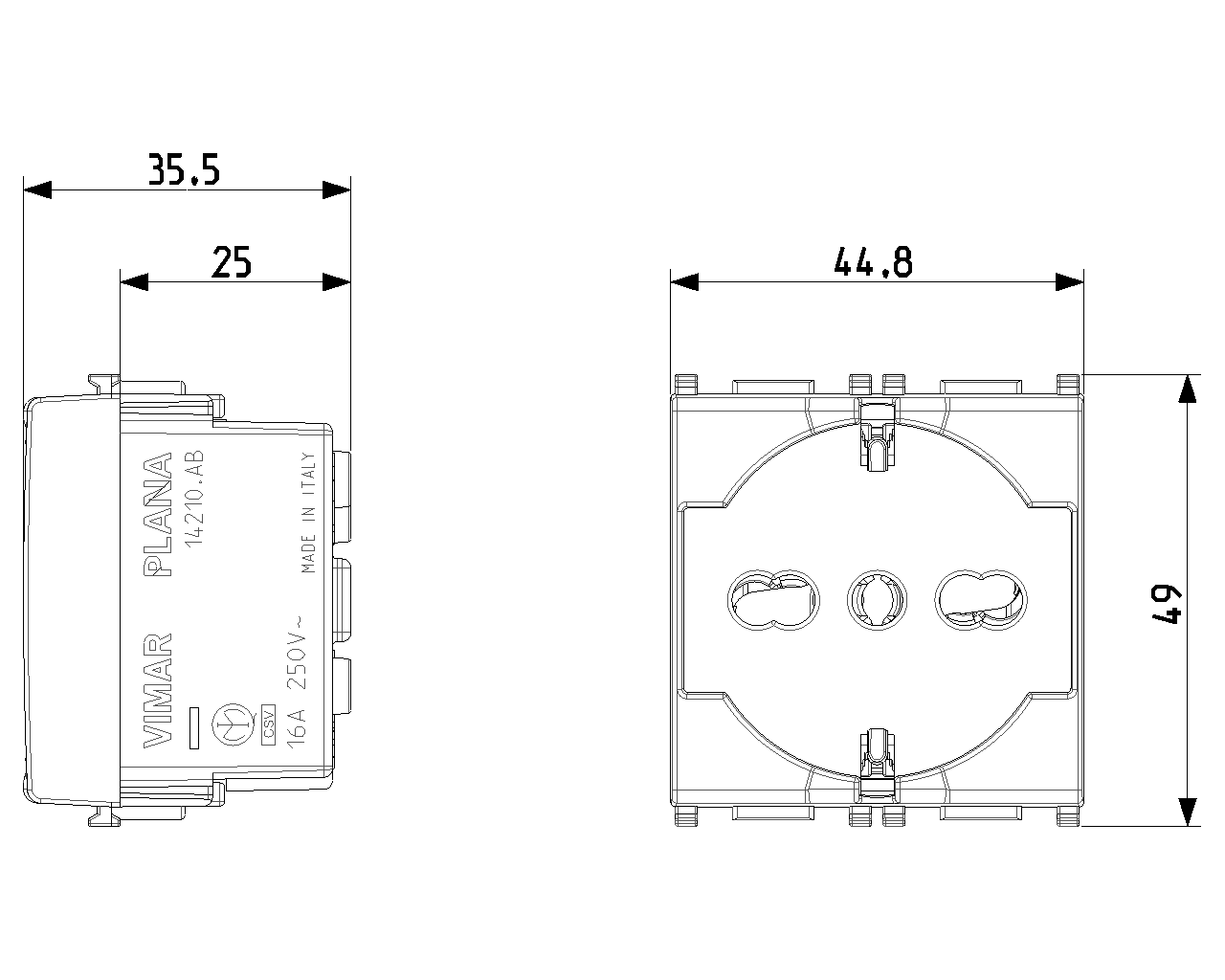

Device width
44,80 mm
Device height
49,00 mm
Device depth
25,00 mm

00. CE Marking - EU

03. CSv-IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352499492
1 NR
5.1x4.3x5.3 [cm]
46.6 [g]
Barcode Qty 20 NR
8007352499508
20 NR
27.4x11.5x9.2 [cm]
1,017 [g]
