2P+E 10A Swiss 13 type outlet Silver - 14226.SL

Pdf
Vimar - 14226.SL - 2P+E 10A Swiss 13 type outlet Silver
Vimar - 14226.SL - 2P+E 10A Swiss 13 type outlet Silver

14226.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

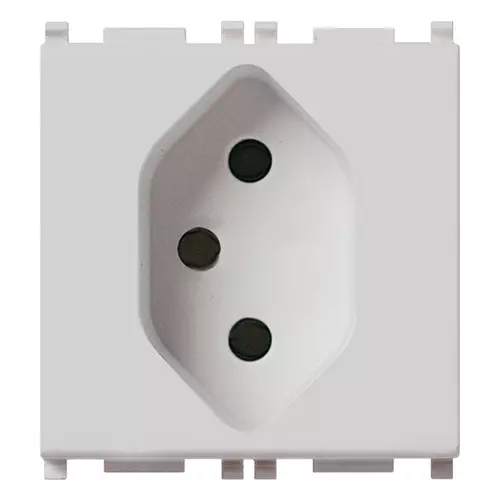

2P+E 10A Swiss 13 type outlet Silver
2P+E 10 A 250 V~ socket outlet, Swiss standard, 13 type, Silver - 2 modules

Product Status
3 - Active

Drawings

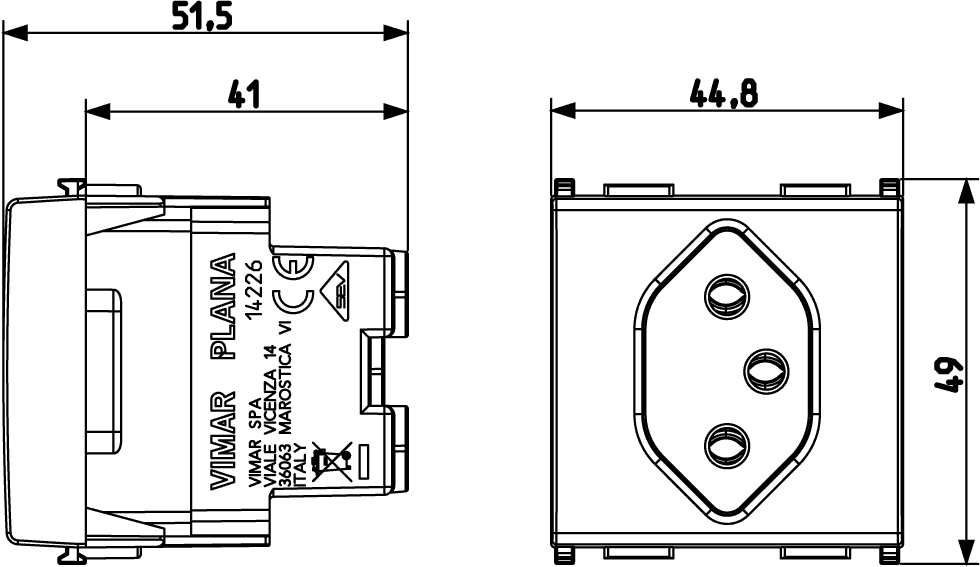

view encumbered art. 14226.SL
PNG DXF

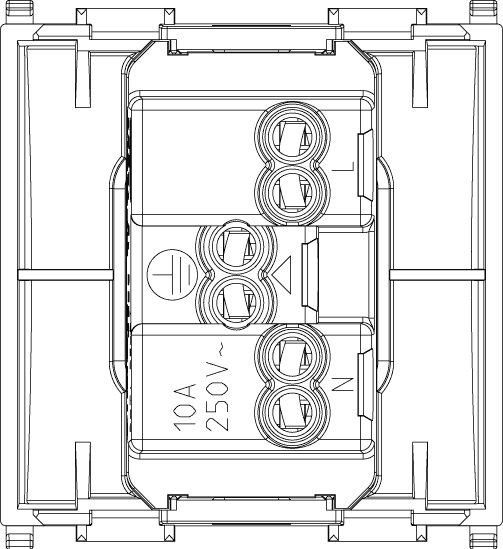

rear view art. 14226.SL
PNG DXF

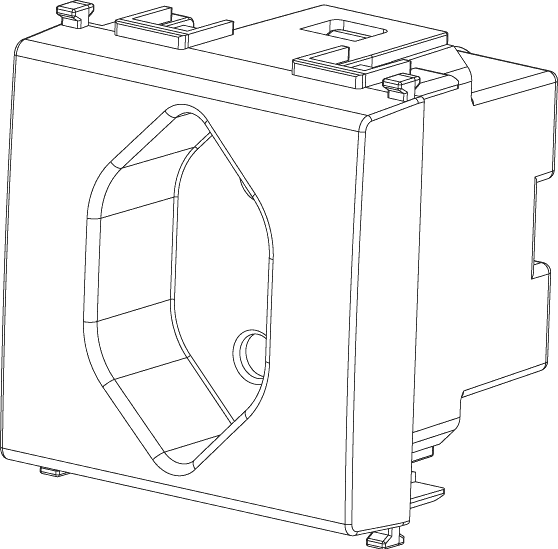

3D view art. 14226.SL
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Swiss norm type 13
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9006
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
51,50 mm

00. CE Marking - EU

05. SEV - Switzerland

10. EAC Eurasian Customs Union

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352309708
1 NR
6x5.4x5.3 [cm]
44.5 [g]
Barcode Qty 20 NR
8007352309715
20 NR
28.1x13.1x11.3 [cm]
993.8 [g]
