C-USB supply unit 60W PD white - 14298.60

14298.60
Wiring devices / Traditional wiring devices / PLANA / Devices

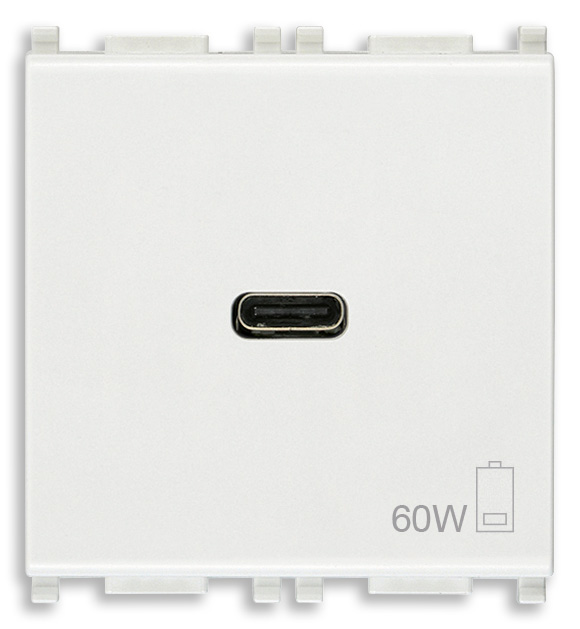

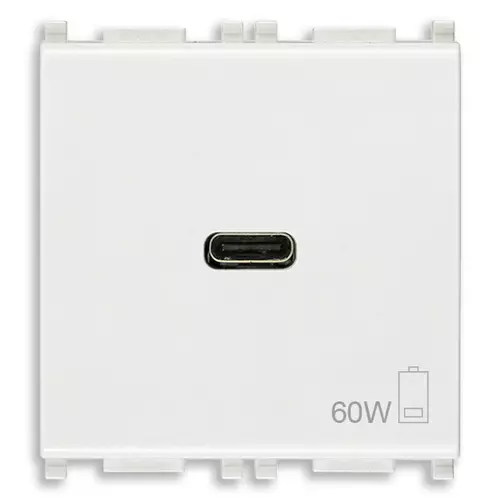

C-USB supply unit 60W PD white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (502 kb)
• Full Multilanguage instructions sheet (964 kb)

---

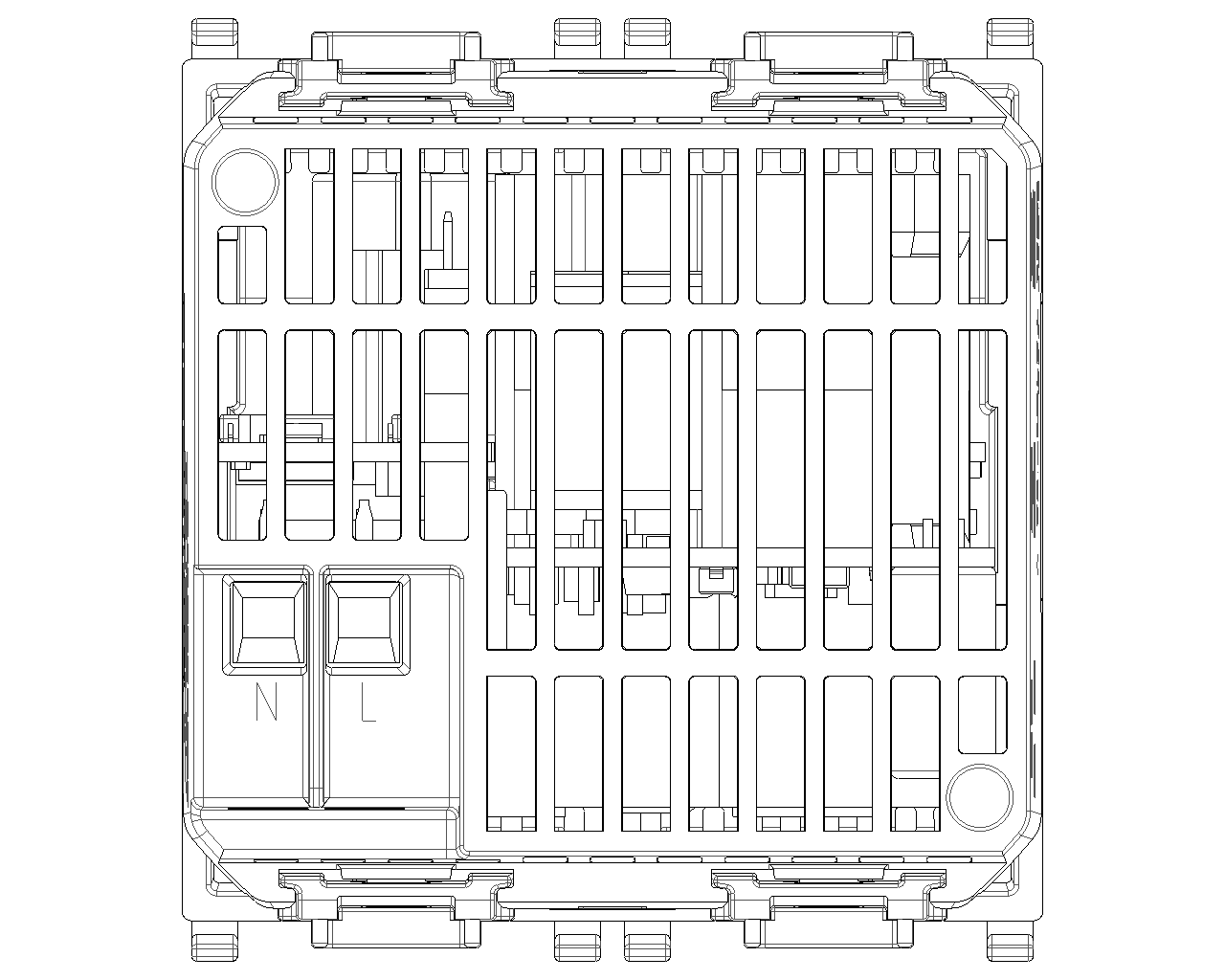

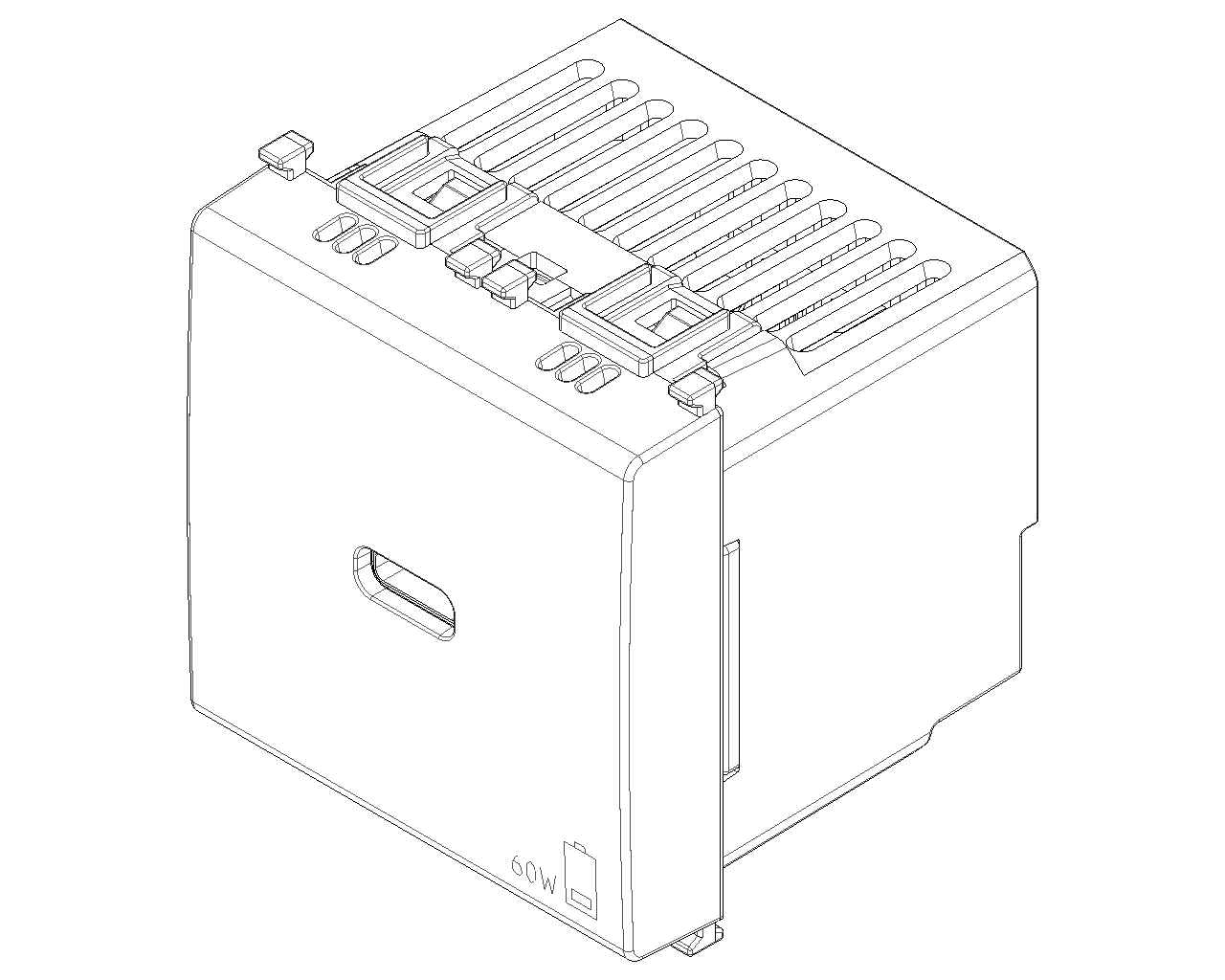

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
USB power supply

Model
Bus

Number of ports USB-A
0

Number of ports USB-C
1

Operating voltage
120,00 - 240,00 V

Frequency
50,00 - 60,00 HZ

Max. output current
3.000 mA

Output voltage
5,00 - 20,00 V

Connection type
Screwed terminal

Mounting method
Flush-mounted

Colour
White

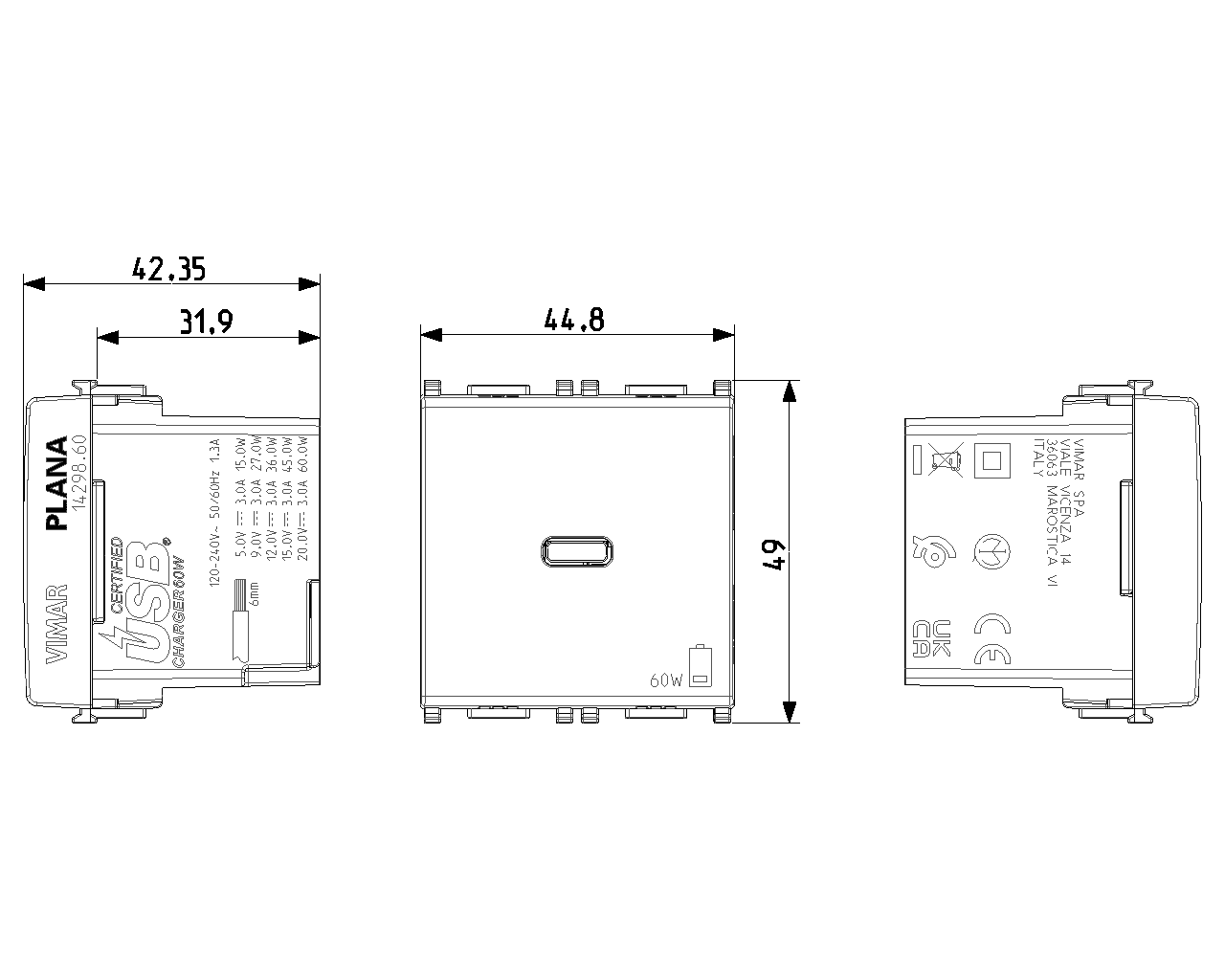

Device width
44,80 mm

Device height
49,00 mm

Device depth
42,35 mm

Suitable for degree of protection (IP)
IP20

Impact strength
Other

Anti-bacterial treatment
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

44. USB-IF mark

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352738096

1 NR

6x5.4x5.2 [cm]

77.6 [g]

8007352738102

10 NR

28.1x13.1x6 [cm]

851 [g]

8007352753952

120 NR

38.5x29x30 [cm]

10,692 [g]
