TV-RD-SAT through-line outlet white - 14300.10

14300.10
Wiring devices / Traditional wiring devices / PLANA / Devices

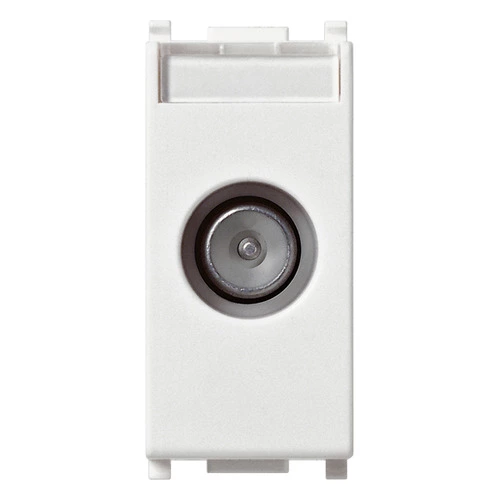

TV-RD-SAT through-line outlet white
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, with male connector, connection attenuation 10 dB, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
Loop-through socket

Cover
None

Tap loss at 860 MHz
10,60 dB

Tap loss at 2150 MHz
9,90 dB

Number of outlets
1

Through loss at 860 MHz
2,20 dB

Through loss at 2150 MHz
3,40 dB

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
White

RAL-number (similar)
9003

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352101265

1 NR

4.1x2.8x5.3 [cm]

50.5 [g]

8007352101272

20 NR

21.4x11.6x6 [cm]

1,074.66 [g]

8007352634961

200 NR

30.5x25.5x22.5 [cm]

11,130 [g]
