TV-FM-SAT single conn. 3outs Silver - 14303.SL

Pdf

14303.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

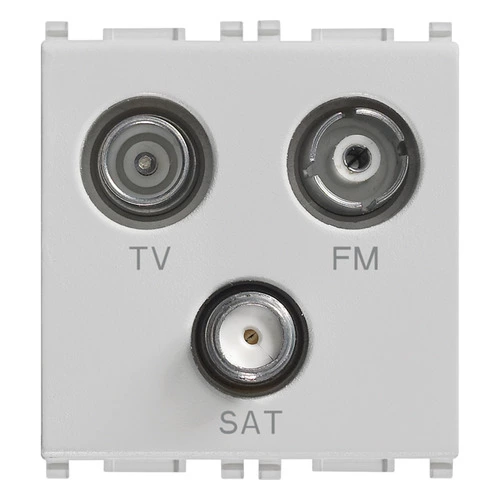

TV-FM-SAT single conn. 3outs Silver
Coaxial TV-FM radio-SAT 5-2400 MHz socket outlet, single connection, demix, 3 outputs with TV male and female FM radio and F-type (SAT) connectors, connection attenuation 1 dB, Silver - 2 modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector

Product Status
3 - Active

Sheets, Manuals, Documentation


Drawings

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Cover
None
Tap loss at 860 MHz
1,80 dB
Tap loss at 2150 MHz
1,30 dB
Number of outlets
3
Suitable for remote power supply
Yes
Type of fastening
Snap mounting (engagement)
Colour
Silver
RAL-number (similar)
9006
Surface protection
Lacquered
Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352395060
1 NR
5.1x4.3x5.3 [cm]
81.6 [g]
Barcode Qty 5 NR
8007352395077
5 NR
14.4x11.6x6 [cm]
456.6 [g]
Barcode Qty 60 NR
8007352649156
60 NR
36.5x33x13.5 [cm]
5,898 [g]
