RJ11 phone jack 6/4 +cover Silver - 14322.SL

Pdf

14322.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

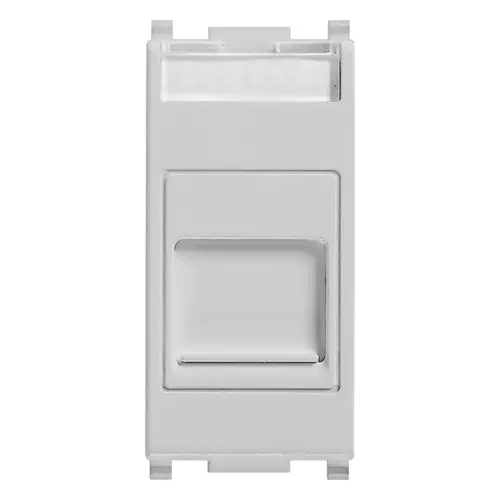

RJ11 phone jack 6/4 +cover Silver
RJ11 phone jack with dust cover, 6-position 4-conductor (6/4), screw terminals, Silver

Product Status
3 - Active

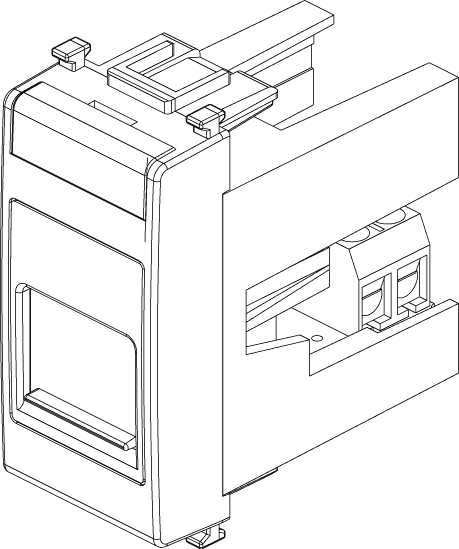

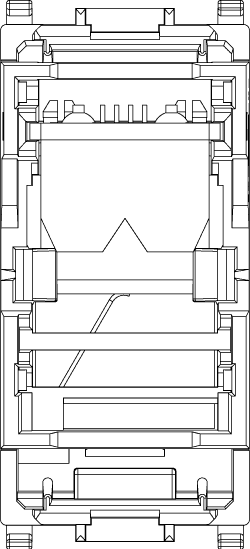

Drawings

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
Yes
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP40

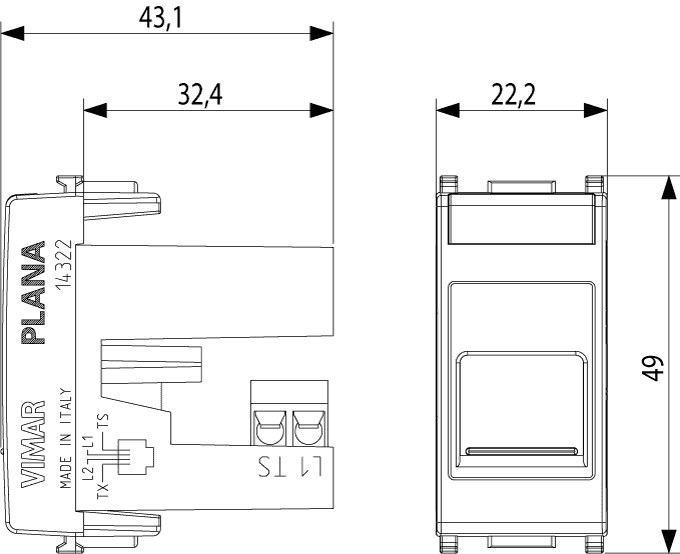

Device width
22,30 mm
Device height
49,00 mm
Device depth
43,10 mm

00. CE Marking - EU

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352395107
1 NR
5.1x2.8x5.3 [cm]
21.8 [g]
Barcode Qty 10 NR
8007352395114
10 NR
14.4x11.6x6 [cm]
261.9 [g]
