RJ45 Cat5e Netsafe UTP 110 outlet Silver - 14339.4.SL

Pdf
14339.4.SL

Net Safe / Copper / RJ/EDP socket outlets

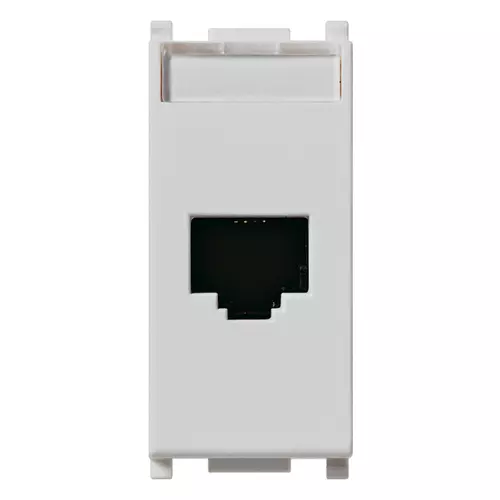

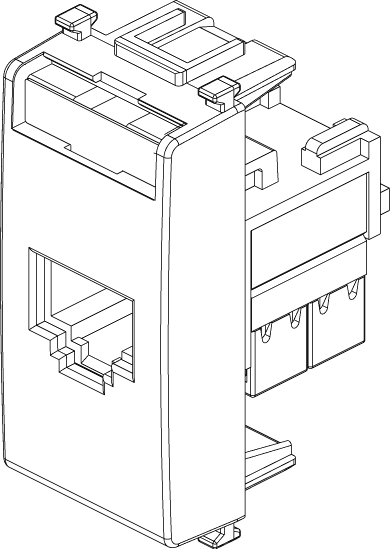

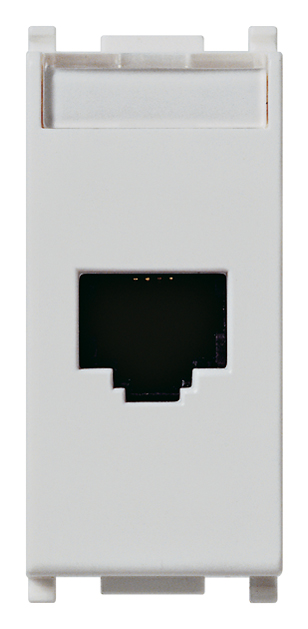

RJ45 Cat5e Netsafe UTP 110 outlet Silver
RJ45 outlet with Netsafe connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 position, 110 type insulation-piercing terminals, Silver

Product Status
3 - Active

Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
5E
Connection type
110
Special tool necessary
Yes
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conductor
No
Suitable for solid core
No
Colour
Silver
AWG-range
22 - 26
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352310438
1 NR

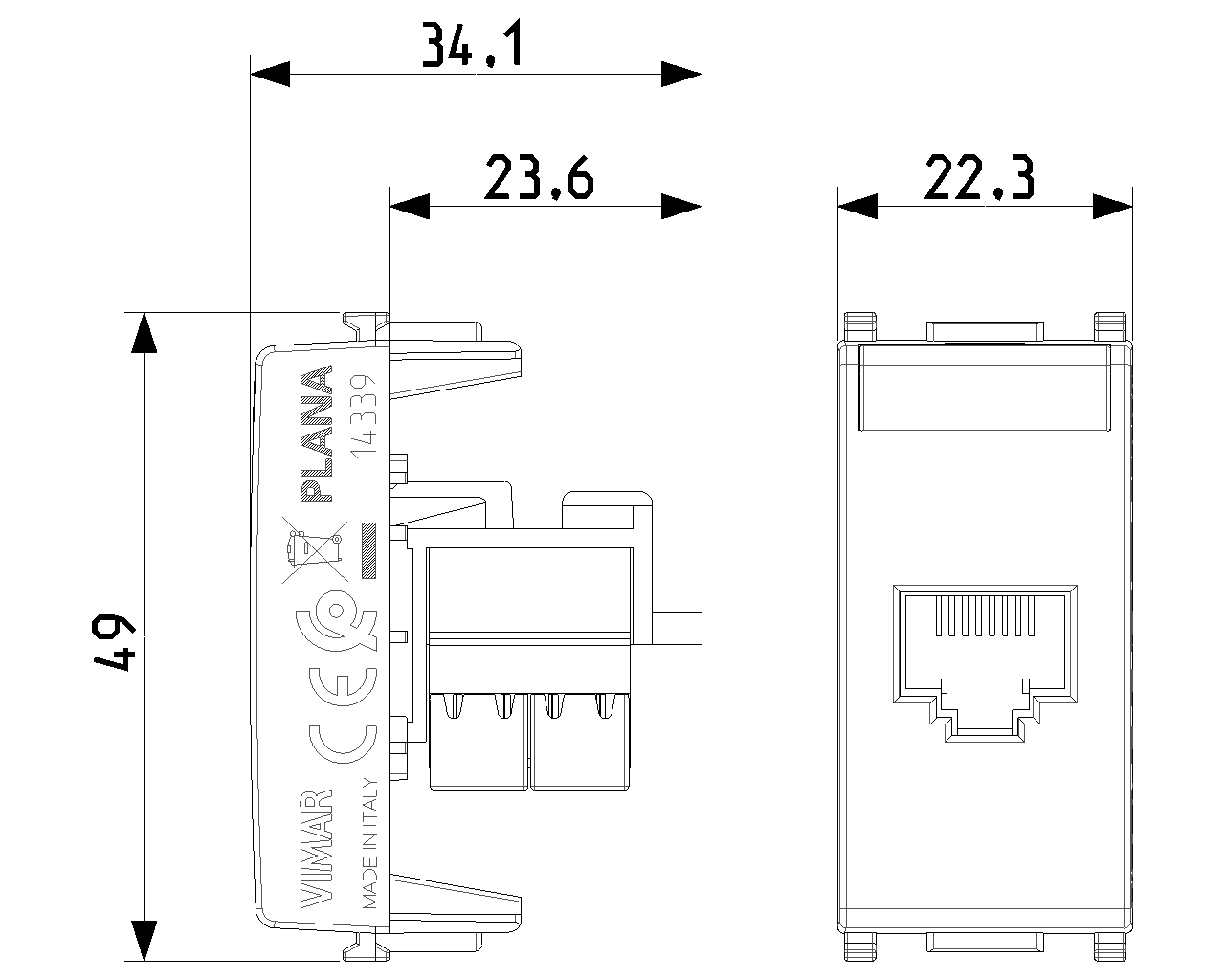

6x2.8x5.3 [cm]
20.4 [g]
Barcode Qty 10 NR
8007352310445
10 NR
14.4x13.1x6 [cm]
255.33 [g]
Barcode Qty 200 NR
8007352651203
200 NR
50.5x20x28 [cm]
5,540 [g]
