Vimar - 14411.16.6.SL - 1P+N C16 RCBO 120-230V 6mA Silver
Vimar - 14411.16.6.SL - 1P+N C16 RCBO 120-230V 6mA Silver
14411.16.6.SL

Plana Silver / Devices / Residual current breakers (RCBOs)

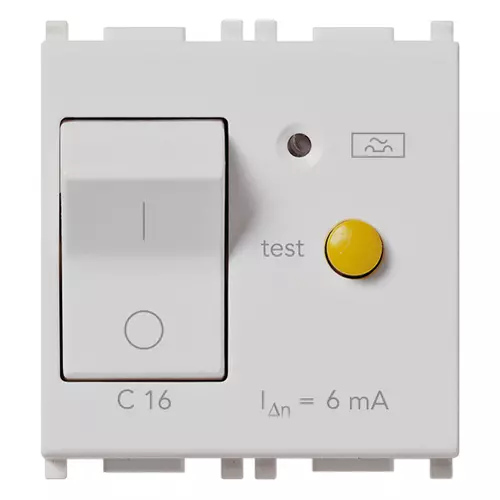

1P+N C16 RCBO 120-230V 6mA Silver
1P+N C 16 residual current breaker with overcurrent protection, supply voltage 120-230 V~ 50-60 Hz, IΔn 6 mA breaking capacity 3000 A, Silver - 2 modules

Product Status
3 - Active

Class group
Circuit breakers and fuses
Class
Earth leakage circuit breaker
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 v
Rated current
16 A
Rated fault current
16 A
Leakage current type
A
Current limiting class
1
Rated short-circuit breaking capacity Icn according to EN 61009-1
3.000,00 kA
Surge current capacity
3,00 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
Over voltage category
3
Built-in depth
38,00 mm
Flush-mounted installation
Yes
Anti-nuisance tripping version
No
Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352319790
1 NR
6x5.4x5.3 [cm]
95.5 [g]
Barcode Qty 5 NR
8007352319806
5 NR
17.2x13.1x6 [cm]
536.47 [g]
