14595.0.120
Wiring devices / View Wireless wiring devices / PLANA / Devices

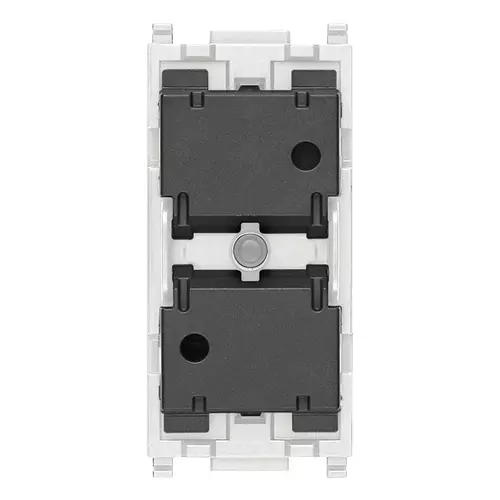

IoT connected dimmer mechanism 120V
Product Status
3 - Active
Sheets, Manuals, Documentation
- Light Multilanguage instructions sheet (1291 kb)
- Foglio istruzioni multilingua Full (707 kb)
- Feuille d’instructions multilangues Full (710 kb)
- Hoja de instrucciones multilingüe Full (708 kb)
- Full Multilanguage instructions sheet (704 kb)
- Πολυγλωσσικό φύλλο οδηγιών Full (859 kb)
- Mehrsprachig-Gebrauchsinformation Full (708 kb)
- ورقة الإرشادات Full (757 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Installationsanleitung View Wireless (40757 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)

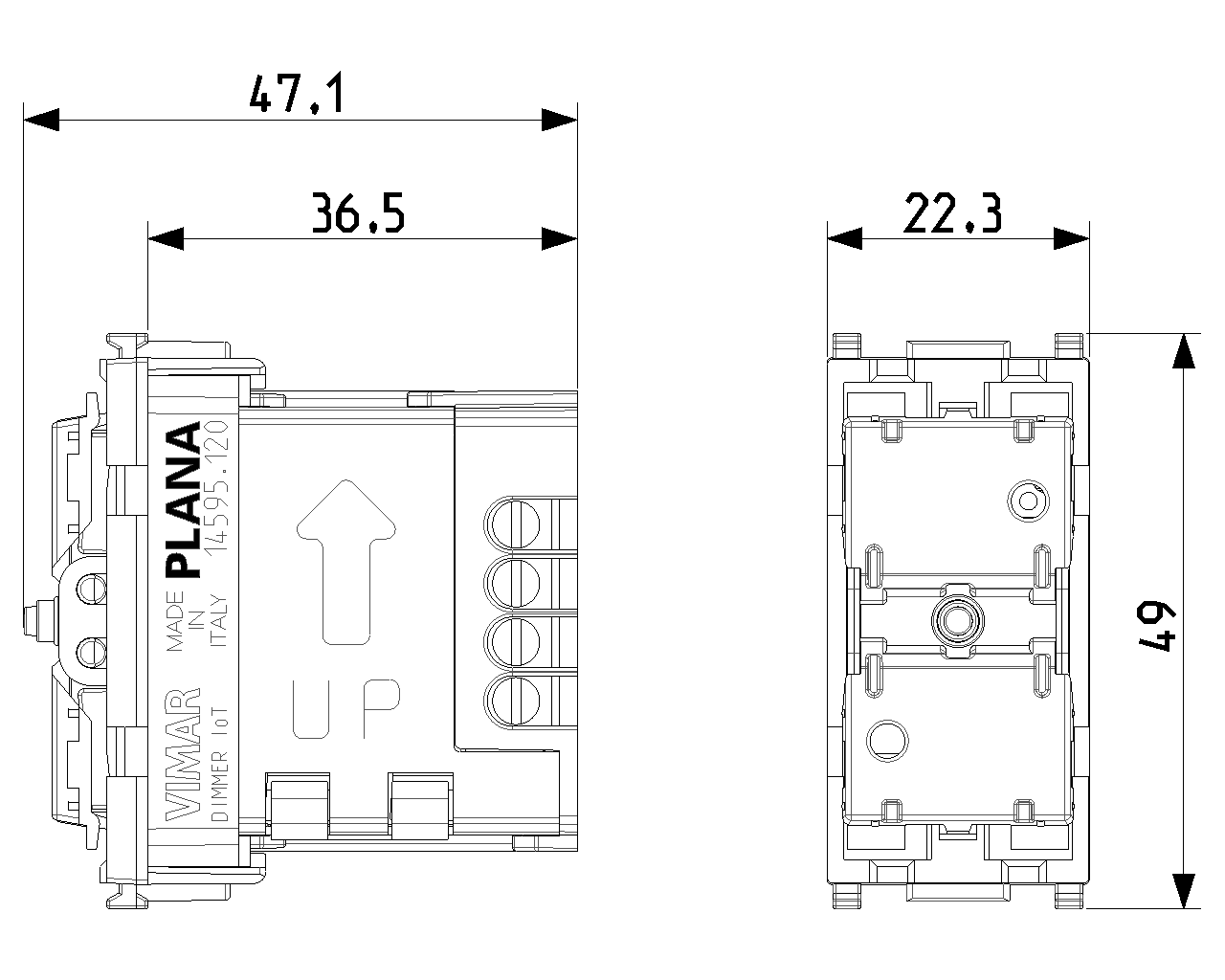

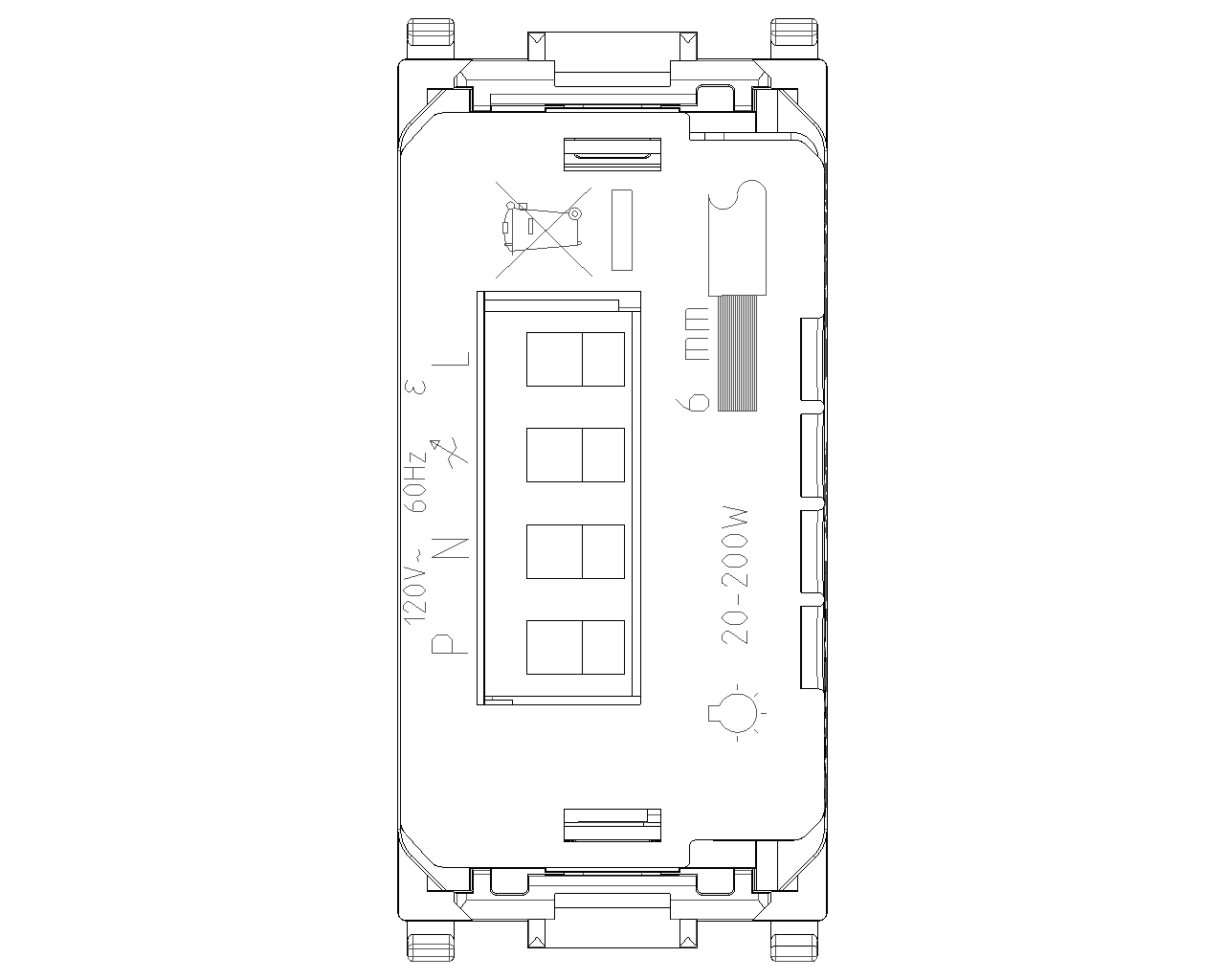

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Other
Other
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
No
No
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
Green
Green
RAL-number (similar)
9003
9003
Label space/information surface
No
No
Lighting
Yes
Yes
Function lighting
Other
Other
Type of lighting
LED not exchangeable
LED not exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
120 V
120 V
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Heating switch
No
No
Washing machine switch
No
No
Device width
22,30 mm
22,30 mm
Device height
49,00 mm
49,00 mm
Device depth
47,10 mm
47,10 mm
Built-in depth
36,50 mm
36,50 mm
Min. depth of built-in installation box
41,00 mm
41,00 mm
Compatible with Apple HomeKit
Yes
Yes
Compatible with Google Assistant
Yes
Yes
Compatible with Amazon Alexa
Yes
Yes
IFTTT support available
Yes
Yes
Minimum order quantity: 1 NR
Barcode
8007352707214
1 NR
5.2x3.5x5.3 [cm]
44.3 [g]
8007352711198
60 NR
27x23x12.5 [cm]
3,150.6 [g]
