Vimar - 14613.G - Frame 3M +screws grey

14613.G
Wiring devices / Traditional wiring devices / PLANA / Mounting frames

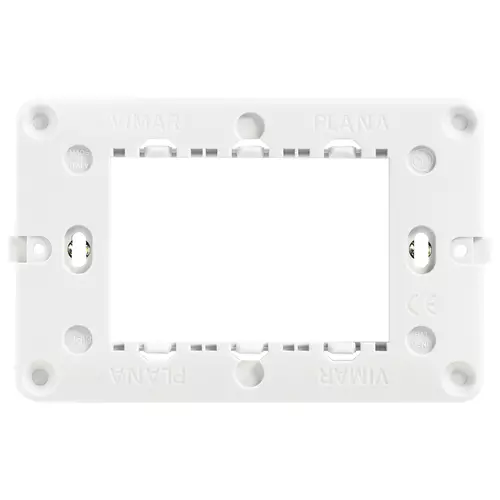

Frame 3M +screws grey
3-module mounting frame, with screws, for 3-module mounting boxes, grey

Product Status
3 - Active

You may also be interested in

21613.C - Cover 3M Eikon/Arké/Plana mount-frame

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

Drawings

view encumbered art. 14613.G

PNG DXF

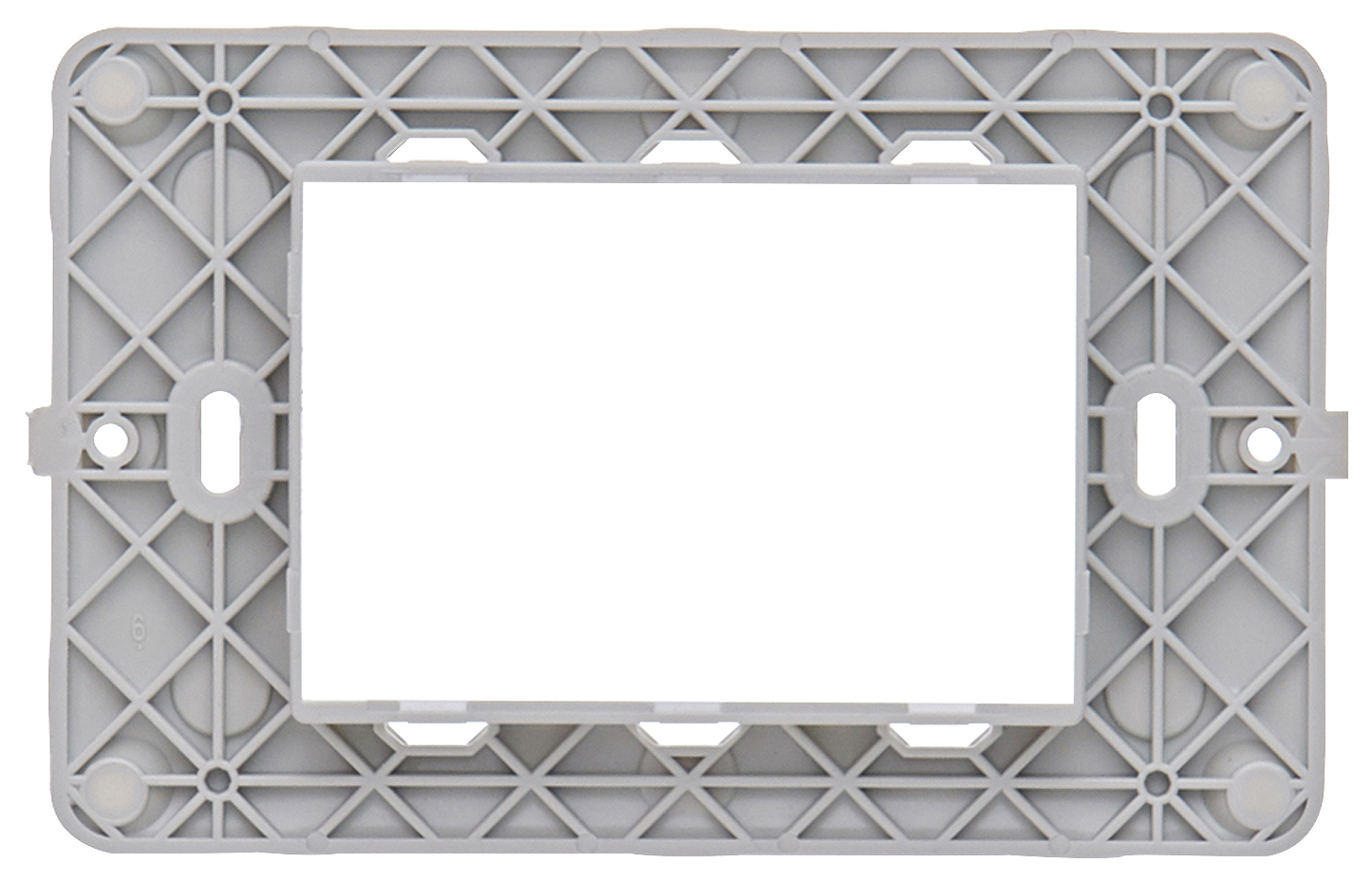

rear view art. 14613.G

PNG DXF

3D view art. 14613.G

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
3

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 200 NR

Barcode

8007352136991

1 NR

11.8x7.4x2.2 [cm]

23.67 [g]

8007352148062

10 NR

11.8x7.46x15.2 [cm]

242.73 [g]

8007352147287

200 NR

38x34x24 [cm]

5,403.33 [g]
