Plate 1M technopolymer Silver - 14641.27

Pdf
Vimar - 14641.27 - Plate 1M technopolymer Silver
Vimar - 14641.27 - Plate 1M technopolymer Silver

14641.27
Wiring devices / Traditional wiring devices / PLANA / Cover plates

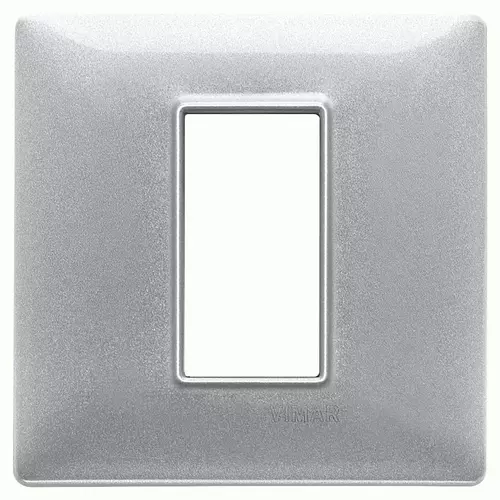

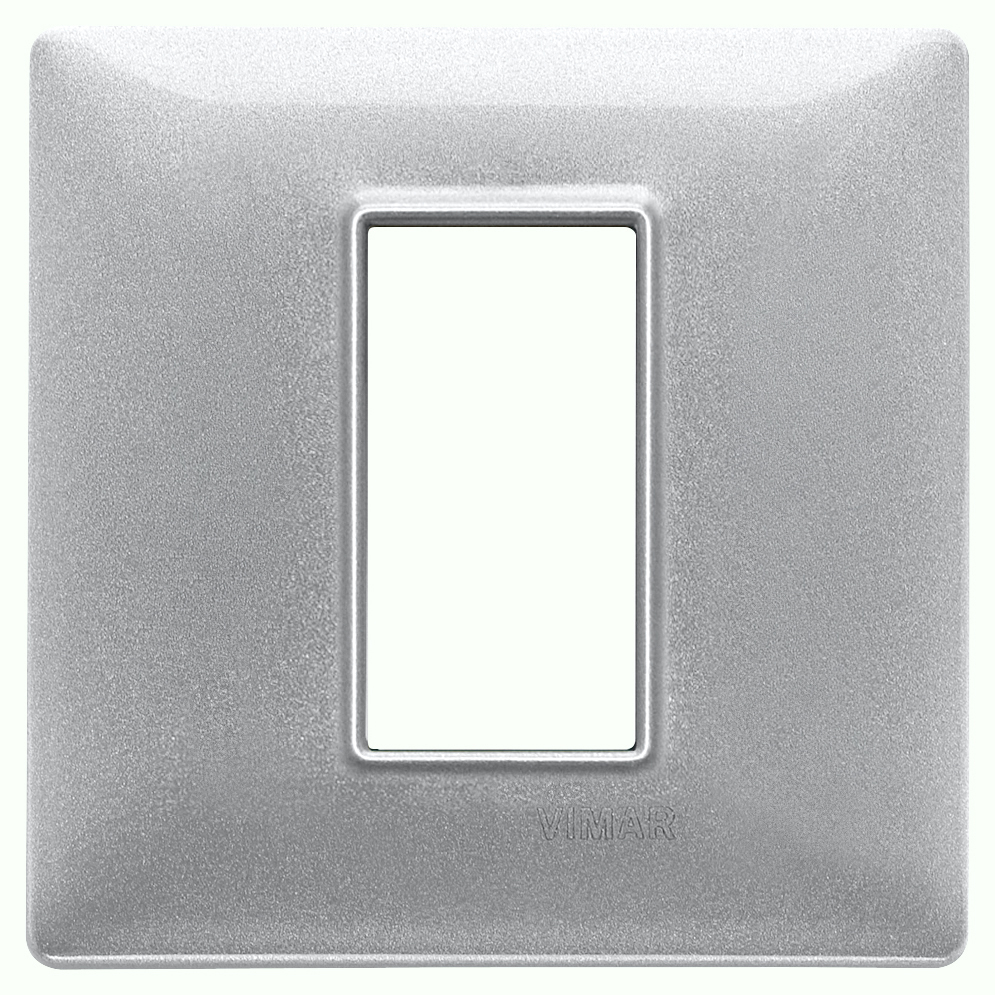

Plate 1M technopolymer Silver

Product Status
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9023
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Engage (snap)
Width
80,00 mm
Height
80,00 mm
Depth
9,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352701380
1 NR
13x8x0.9 [cm]
15 [g]
Barcode Qty 10 NR
8007352701397
10 NR
11.4x9.8x10.4 [cm]
185 [g]
Barcode Qty 540 NR
8007352701403
540 NR
59x34.5x32.5 [cm]
10,710 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
