Plate 4M (2+2) 71mm techn.matt gold - 14643.25

Pdf

14643.25
Wiring devices / Traditional wiring devices / PLANA / Cover plates

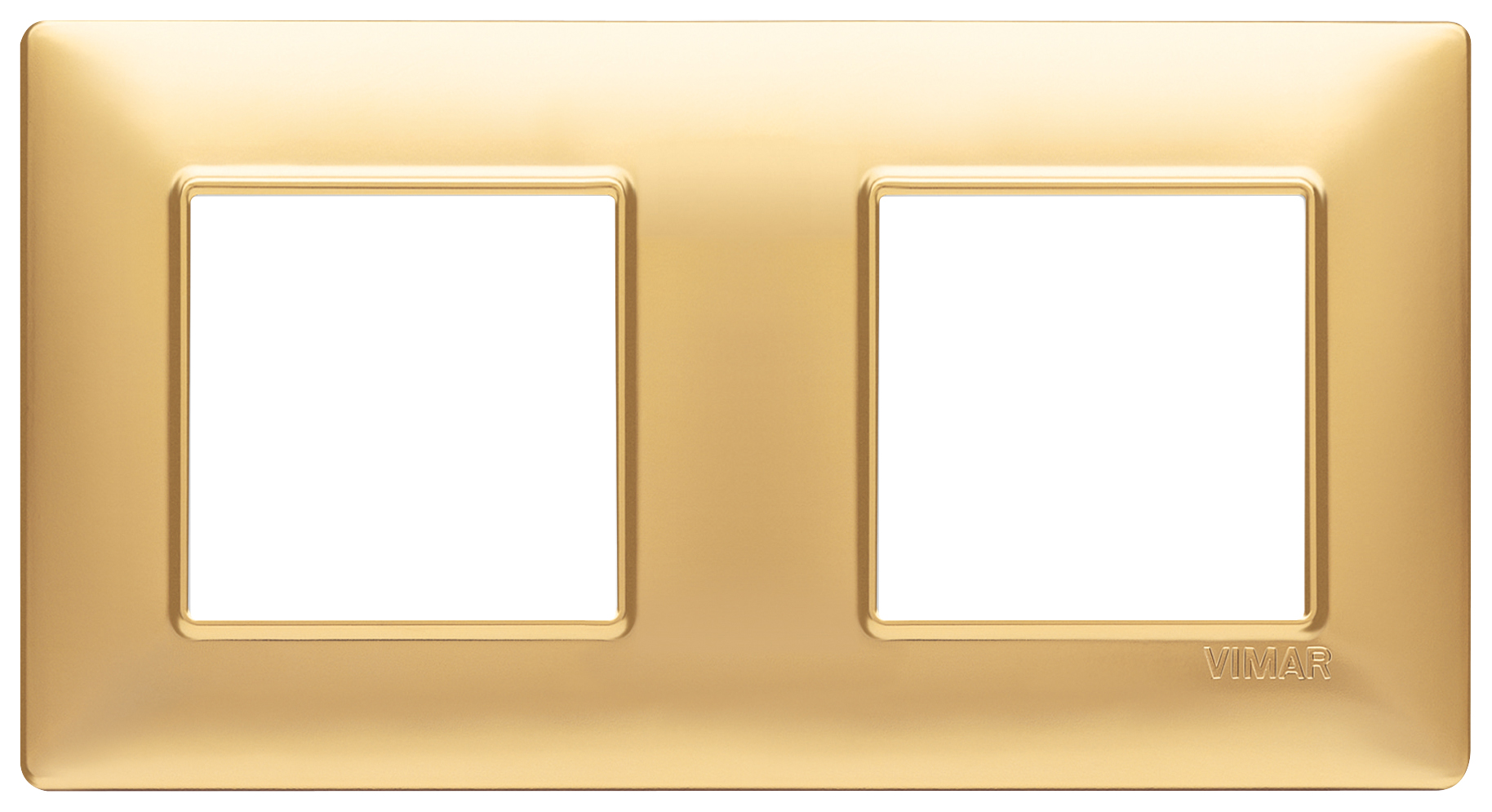

Plate 4M (2+2) 71mm techn.matt gold
4-module cover plate (2+2, 71 mm distance between centres), technopolymer, matt gold

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Glossy
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
151,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
151,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352132511
1 NR
20x8x0.9 [cm]
24.53 [g]
Barcode Qty 5 NR
8007352132528
5 NR
21.6x9x5.3 [cm]
169.93 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
