Plate 2centrM techn. makorè - 14652.33

Pdf

14652.33
Wiring devices / Traditional wiring devices / PLANA / Cover plates

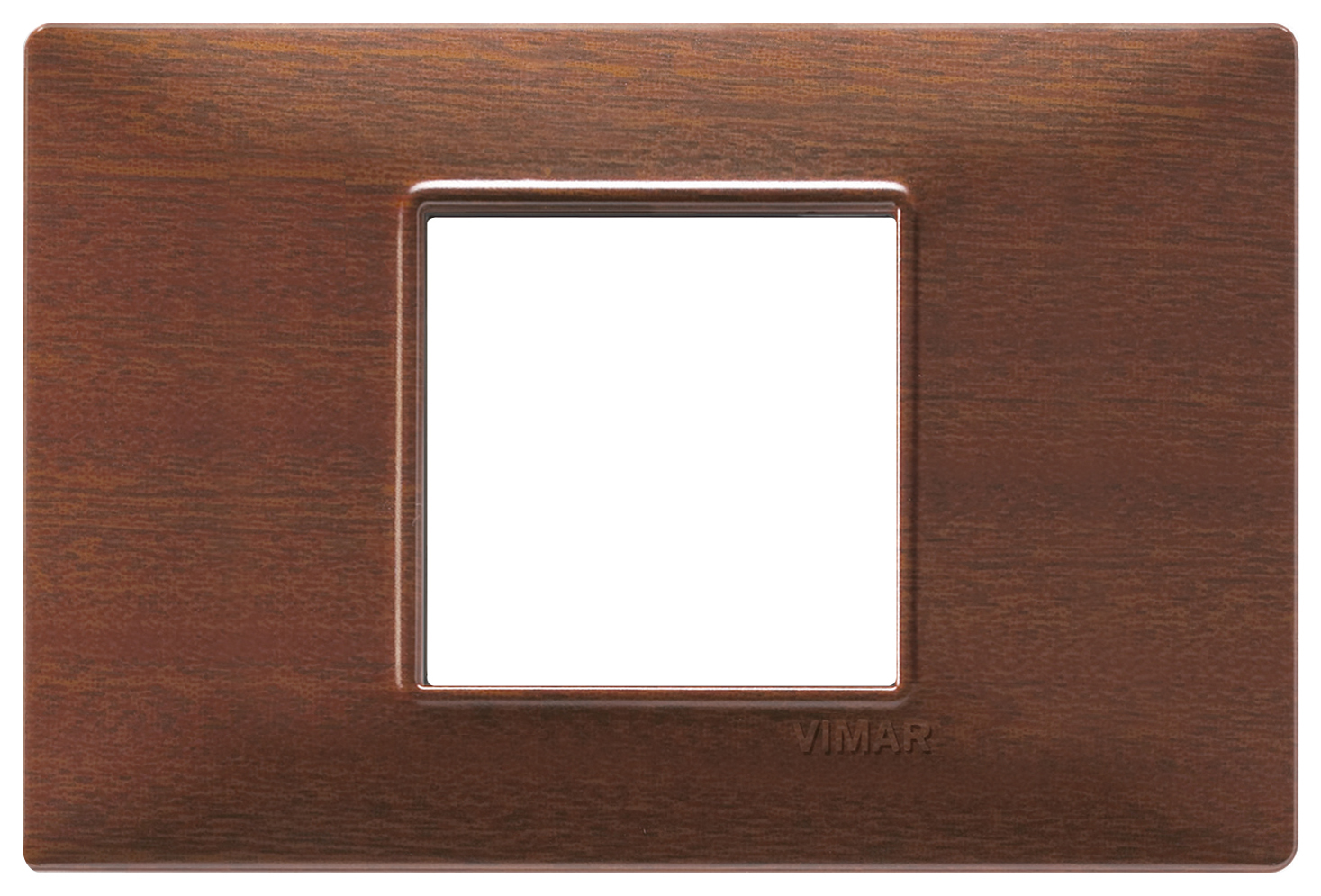

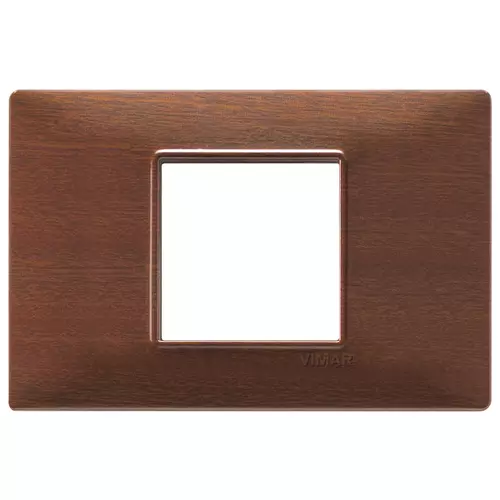

Plate 2centrM techn. makorè
2-central-module cover plate, technopolymer, makoré

Product Status
2 - Will be discontinued

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Other
RAL-number (similar)
8012
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
120,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352244207
1 NR
17x8x0.9 [cm]
19.33 [g]
Barcode Qty 10 NR
8007352244214
10 NR
14.1x9.8x9.9 [cm]
238.13 [g]
