Plate 3M metal Silver - 14653.71

Pdf

14653.71
Wiring devices / Traditional wiring devices / PLANA / Cover plates

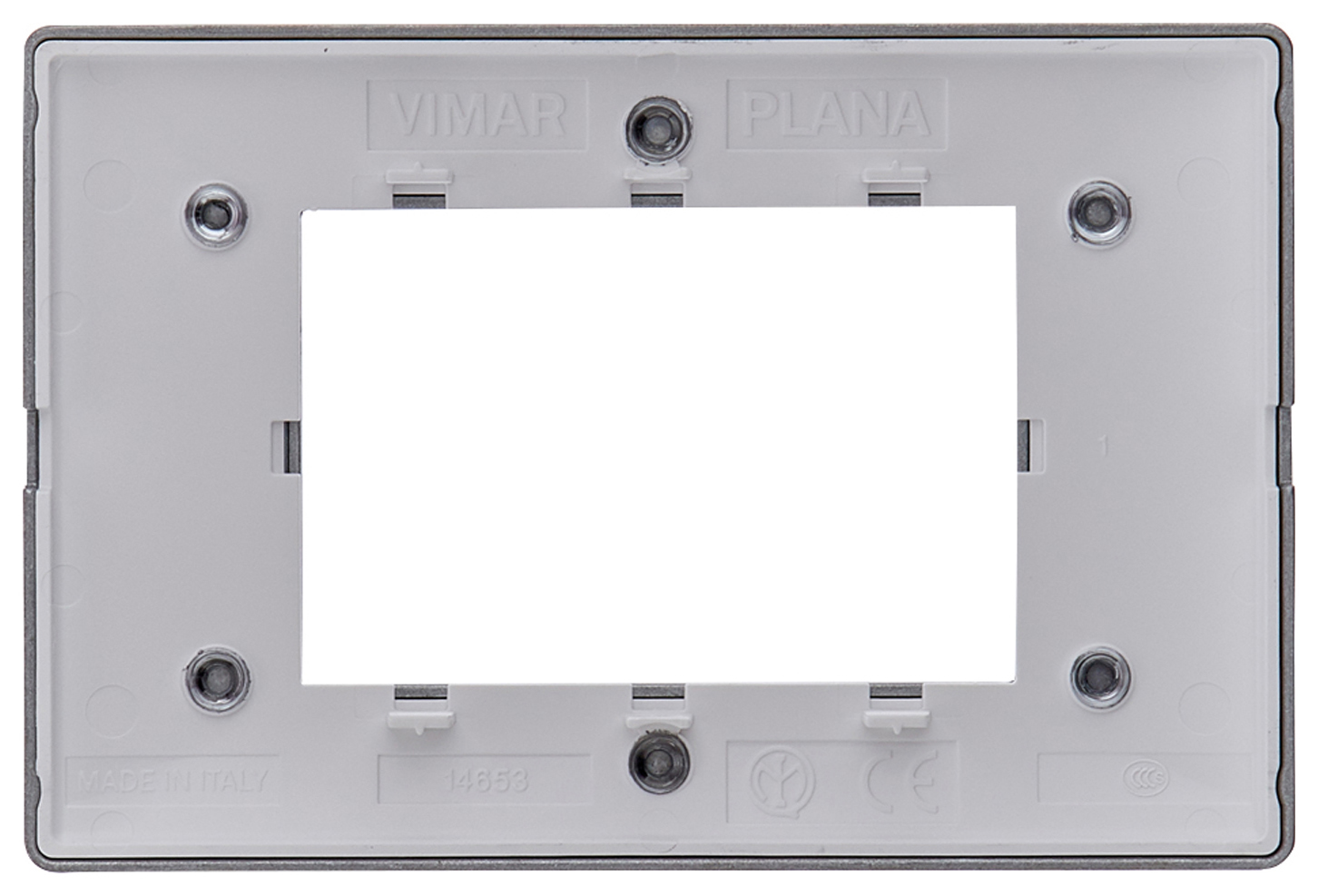

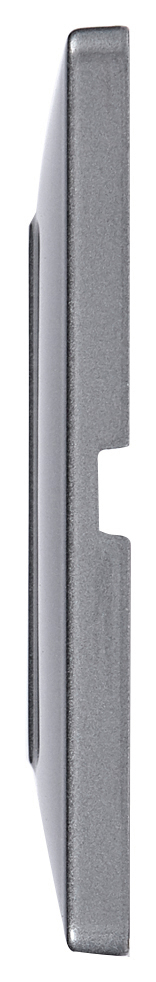

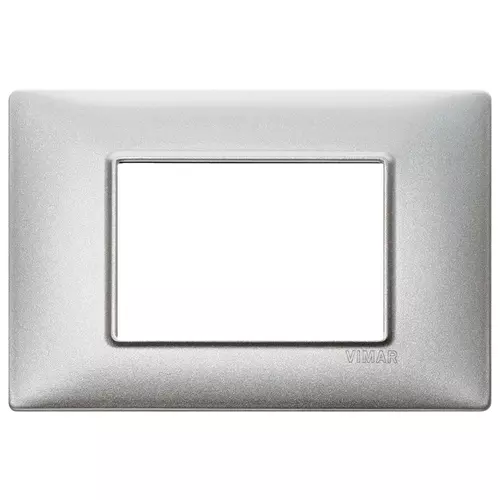

Plate 3M metal Silver
3-module cover plate, metal, Silver

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9023
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
120,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352267480
1 NR
12.7x9.3x1.6 [cm]
95.67 [g]
Barcode Qty 5 NR
8007352267497
5 NR
13.6x9.7x10 [cm]
520.27 [g]
Barcode Qty 80 NR
8007352470668
80 NR
39x29.5x22 [cm]
8,814 [g]
Barcode Qty 2,560 NR
8007352587977
2,560 NR
120x80x105 [cm]
289,048 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
