Plate 4M Reflex snow - 14654.41

Pdf

14654.41
Wiring devices / Traditional wiring devices / PLANA / Cover plates

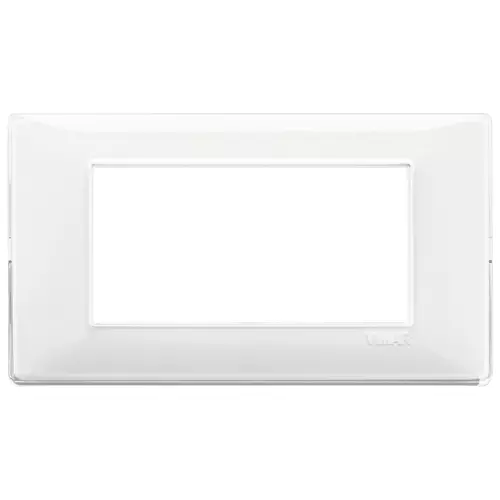

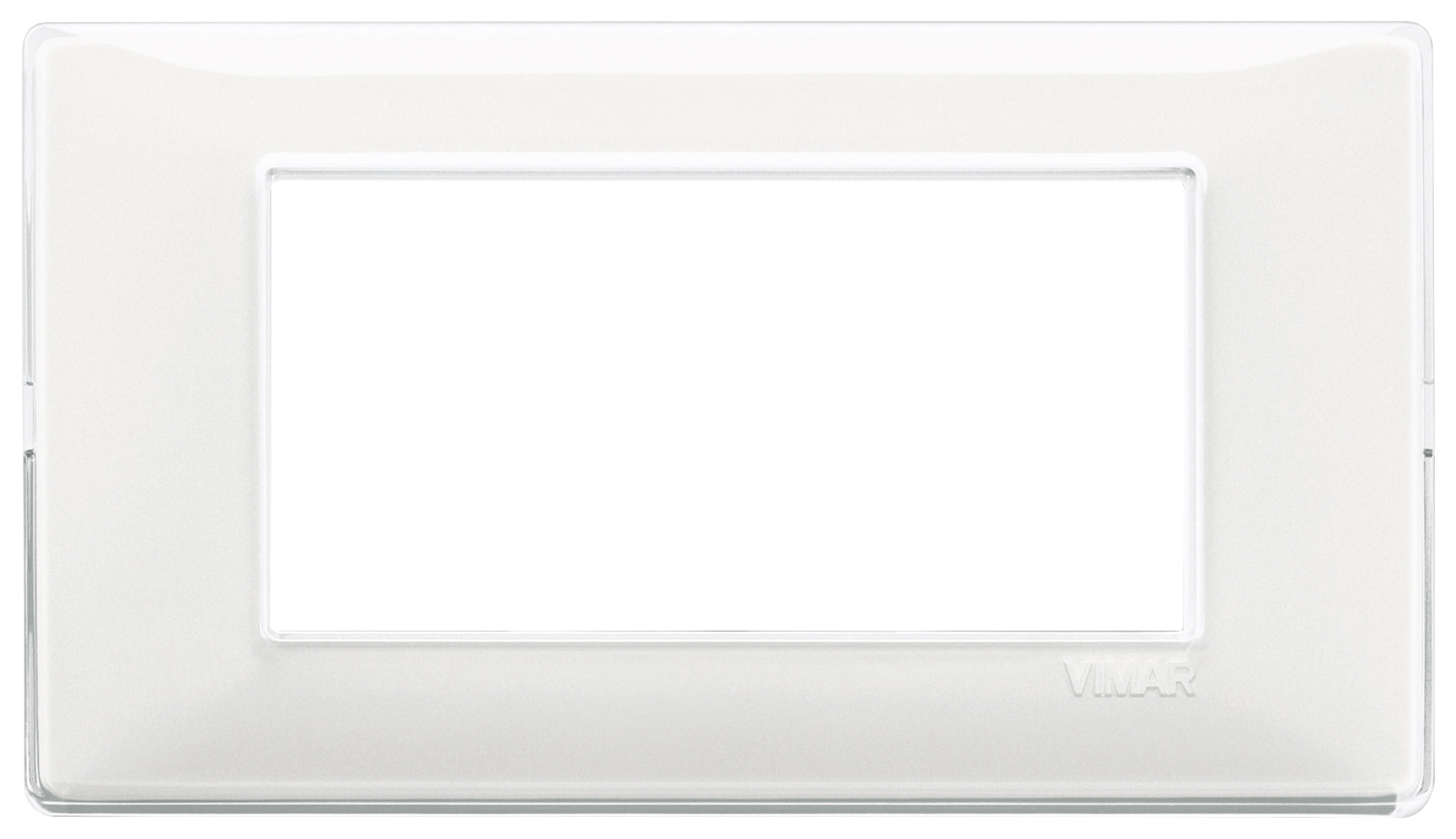

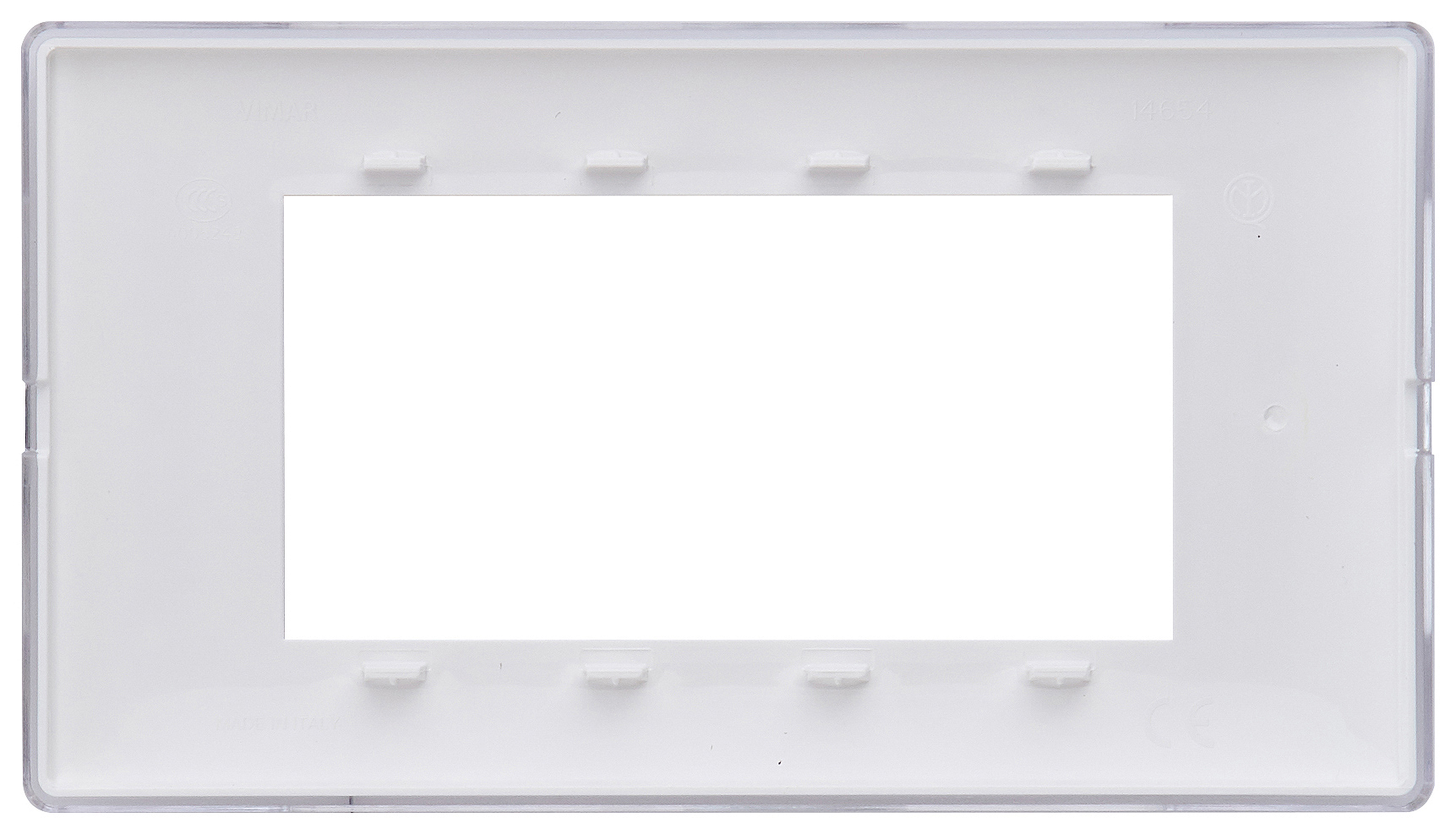

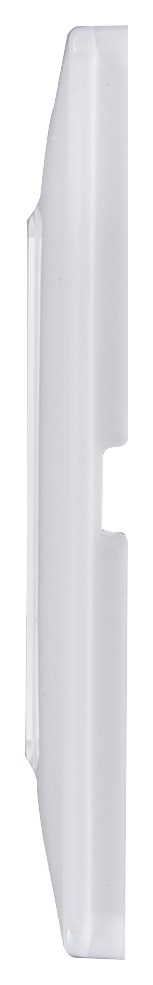

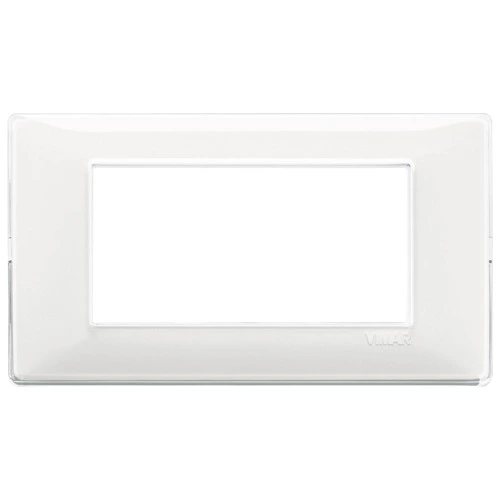

Plate 4M Reflex snow
4-module cover plate, technopolymer, Reflex snow

Product Status
3 - Active

You may also be interested in

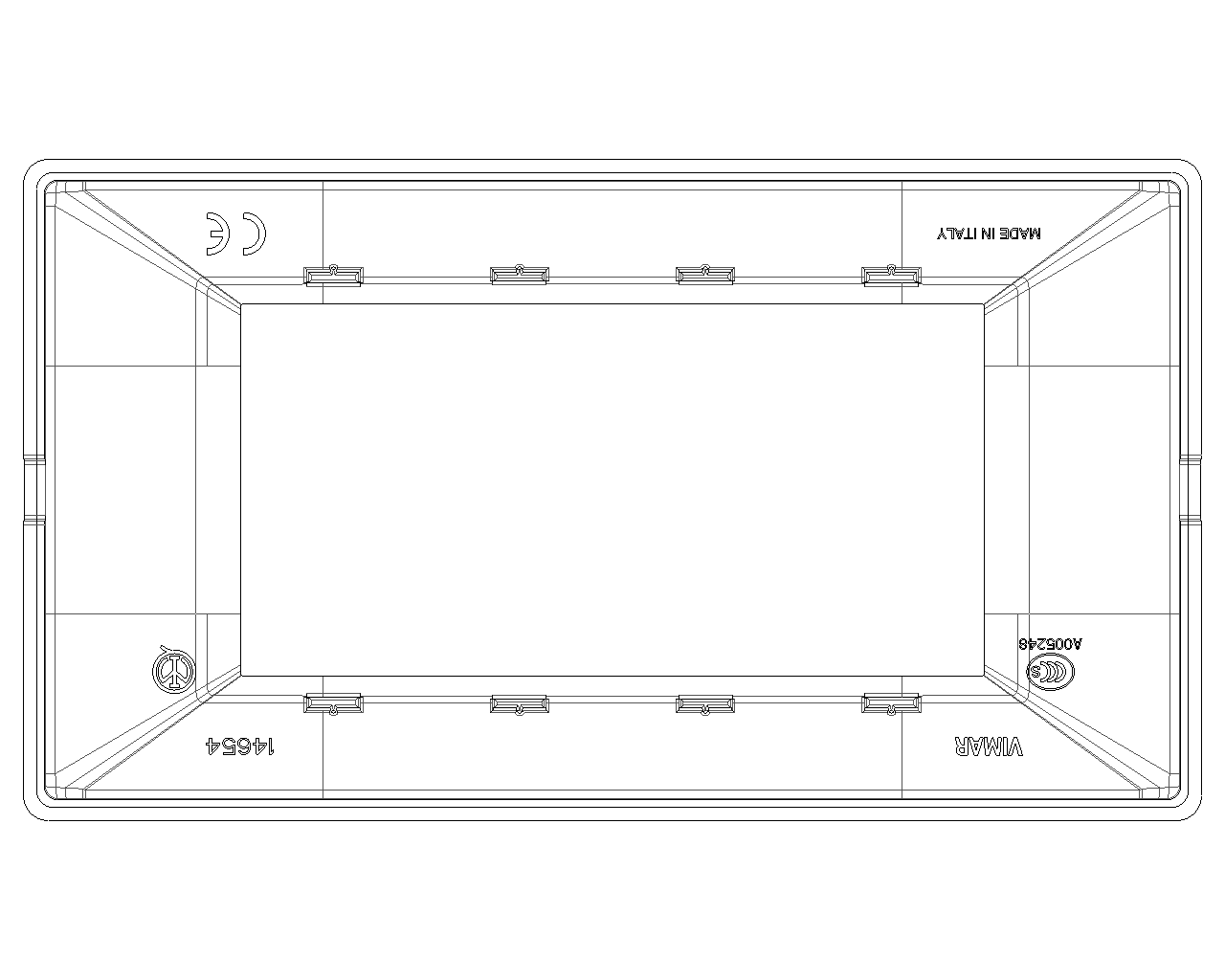

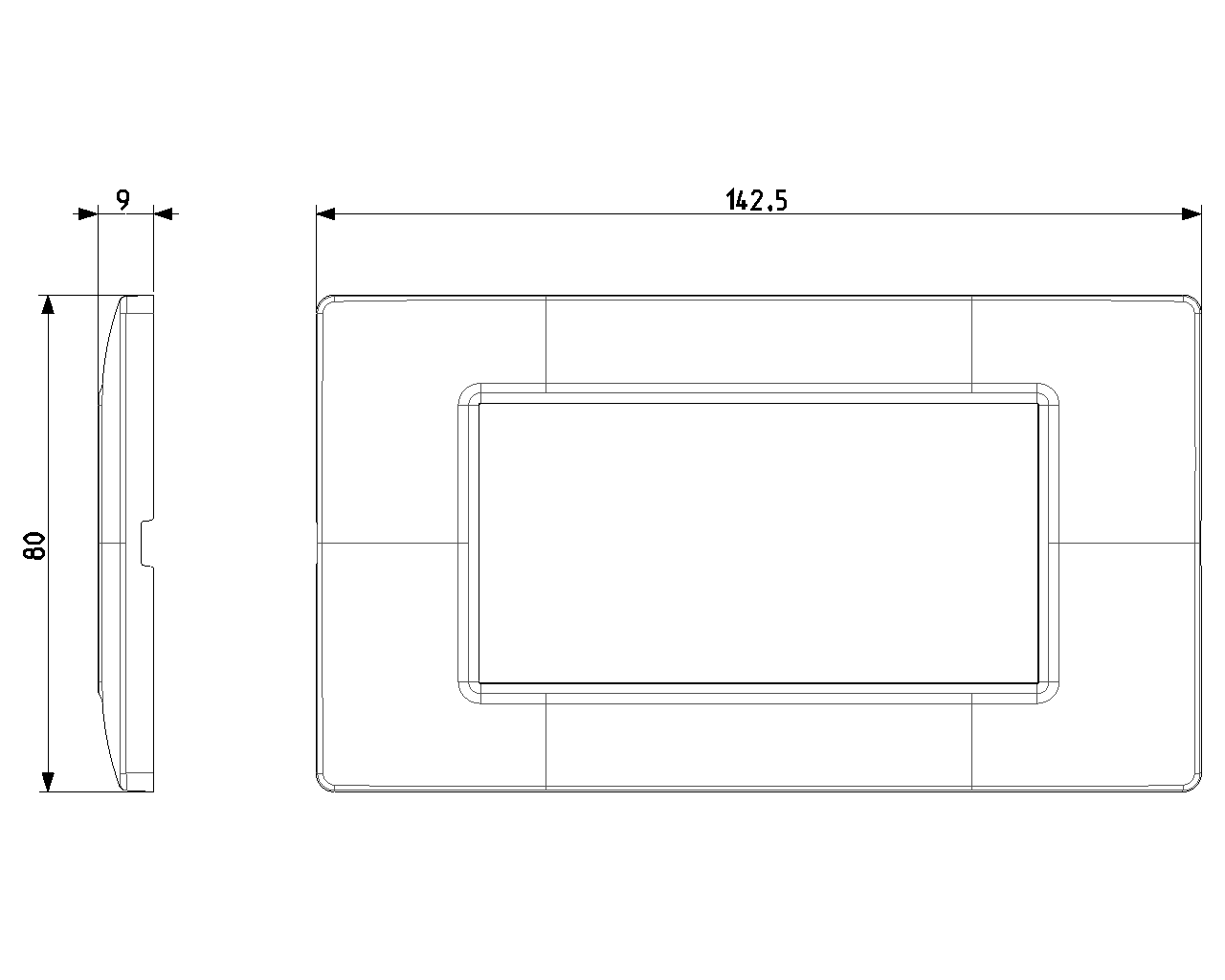

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Plastic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
139,50 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
139,50 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352122062
1 NR
19x8x0.9 [cm]
27 [g]
Barcode Qty 10 NR
8007352122079
10 NR
17.1x9.8x9.9 [cm]
324.53 [g]
Barcode Qty 360 NR
8007352635227
360 NR
59x34.5x32.5 [cm]
12,432 [g]
